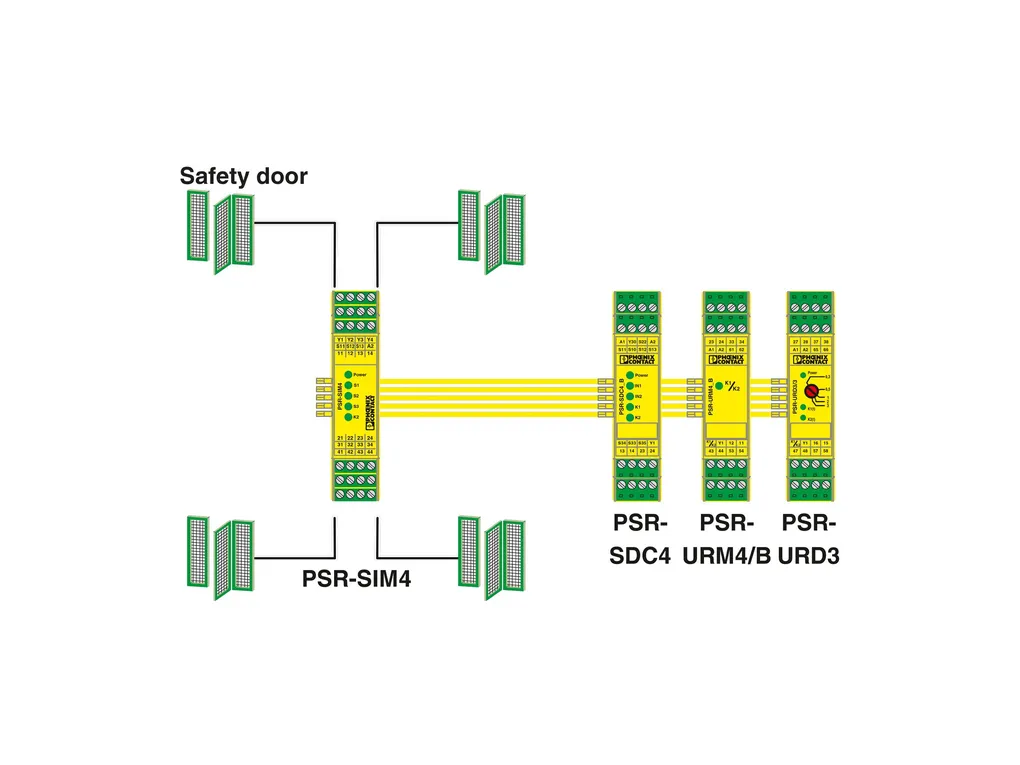

| Product properties | Product type: Interface module Product family: PSRclassic |
| Electrical properties | Max. permissible current: 100 mA (per signal output) Max. permissible total current: 100 mA (alarm outputs) Nominal operating mode: 100% operating factor Air clearances and creepage distances between the power circuits Rated insulation voltage: 50 VÃDC Rated surge voltage/insulation: 0.8ÃkV |
| Input data | Nominal input voltage UN: 24 VÃDC (from PSR) Input voltage range in reference to UN: 0.85 ... 1.1 |
| Connection data | Connection technology pluggable: yes Conductor connection Connection method: Push-in connection Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 1.5 mm² (only together with CRIMPFOX 6) Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1.5 mm² (only together with CRIMPFOX 6) Conductor cross-section AWG: 24 ... 16 Stripping length: 8 mm |
| Signaling | Status display: Green LED Status display present: Yes |
| Dimensions | Width: 22.5 mm Height: 117 mm Depth: 106 mm |
| Material specifications | Housing material: Polyamide |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 55°C Ambient temperature (storage/transport): -40°C ... 70°C Maximum altitude: max. 2000 m (Above sea level) |
| Standards and regulations | Air clearances and creepage distances between the power circuits Standards/regulations: DINÃENÃ50178 |
| Mounting | Assembly instructions: in rows with zero spacing Mounting position: any Connection method: Push-in connection |
