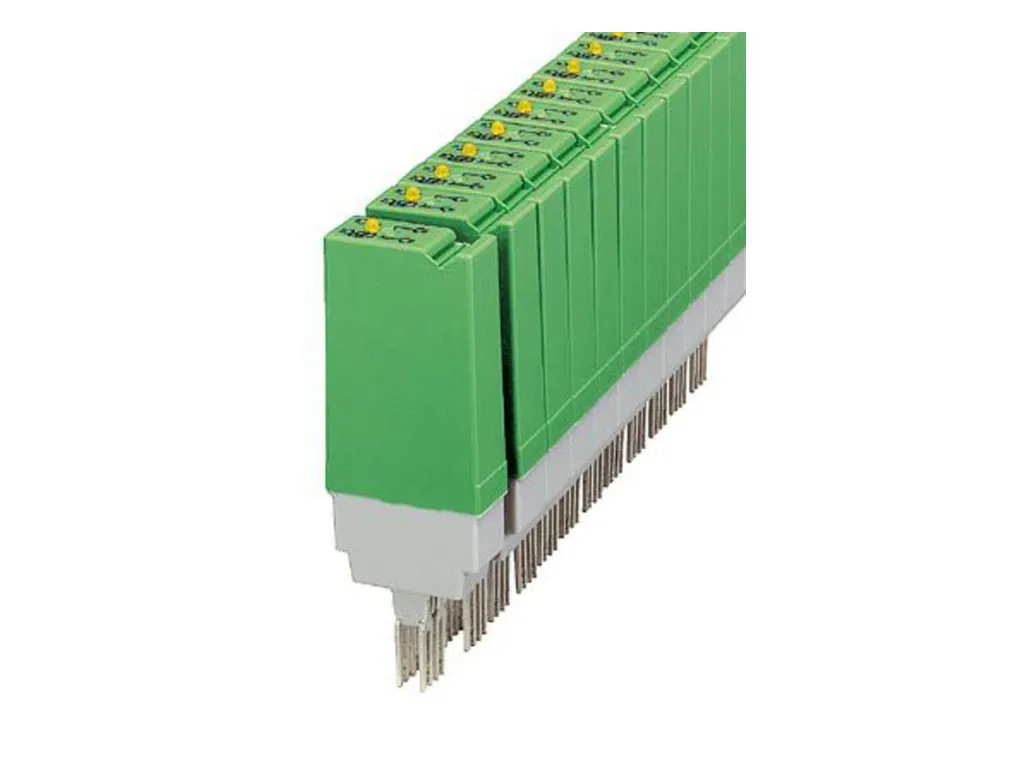

2982113 PHOENIX CONTACT -

Product properties	Product type: Single solid-state relay Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Standards/regulations Insulation: Basic insulation Overvoltage category: III Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 0.05 W Test voltage (Input/output): 2.5 kV (50ÃHz, 1Ãmin., input/output) Standards/regulations Rated insulation voltage: 100 VÃDC
Input data	Nominal input voltage U_N: 5 VÃDC Input voltage range in reference to U_N: 0.8 ... 1.2 Input voltage range: 4 VÃDC ... 6 VÃDC Switching threshold "0" signal, voltage: Ã¢Ã¢°¤ 0.8 V Switching threshold "1" signal voltage: Ã¢Ã¢°¥ 2.5 V Typical input current at U_N: 9 mA Typical response time: 10 Ãµs Typical turn-off time: 400 Ãµs Protective circuit: Reverse polarity protection; Polarity protection diode Transmission frequency: 300 Hz
Output data	Contact switching type: 1 N/O contact Design of digital output: electronic Output nominal voltage: 24 VÃDC Output voltage range: 3 VÃDC ... 33 VÃDC Limiting continuous current: 5 A (see derating curve) Maximum inrush current: 15 A (10 ms) Surge voltage protection: > 33 VÃDC Voltage drop at max. limiting continuous current: Ã¢Ã¢°¤ 200 mV Output circuit: 2-conductor, floating Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/60fd1c85eee35444a4ff80d7039bb135/-S204x204-FJPG Width: 12.7 mm Height: 29 mm Depth: 15.7 mm
Material specifications	Flammability rating according to UL 94: V0 (Housing)
Environmental and real-life conditions	Ambient conditions Degree of protection: RT III Ambient temperature (operation): -25°C ... 60°C Ambient temperature (storage/transport): -25°C ... 70°C
Approvals	Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60
Standards and regulations	Standards/regulations Standards/regulations: IEC 60664 ENÃ50178
Mounting	Assembly instructions: in rows with zero spacing Mounting position: any
