| Product properties | Product type: Single relay Mechanical service life: 5x 106 cycles |
| Electrical properties | Service life electrical: see diagram Maximum power dissipation for nominal condition: 0.43 W Test voltage (Winding/contact): 5 kV AC (50ÃHz, 1Ãmin., winding/contact) |
| Input data | Coil side Nominal input voltage UN: 24 VÃDC Input voltage range: 19.2 VÃDC ... 52.8 VÃDC Input voltage range in reference to UN: see diagram Drive and function: monostable Drive (polarity): non-polarized Typical input current at UN: 18 mA Typical response time: 9 ms Typical release time: 6 ms |
| Output data | Switching Contact switching type: 1Ãchangeover contact Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 12 V (at 10 mA) Limiting continuous current: 16 A Maximum inrush current: 32 A (20Ãms) Min. switching current: 10 mA (at 12 V) Interrupting rating (ohmic load) max.: 4000 VA (for 250 V AC) Switching capacity: 2 A (at 24 V, DC13) 3 A (at 24 V, AC15) 3 A (at 120 V, AC15) 3 A (at 240ÃV, AC15) Motor load according to UL 508: 1/2ÃHP, 120ÃVÃAC (N/O contact) 1ÃHP, 240ÃVÃAC (N/O contact) 1/3ÃHP, 120ÃVÃAC (N/C contact) 1/2ÃHP, 240ÃVÃAC (N/C contact) |
| Connection data | Connection method: Plug / solder connection |

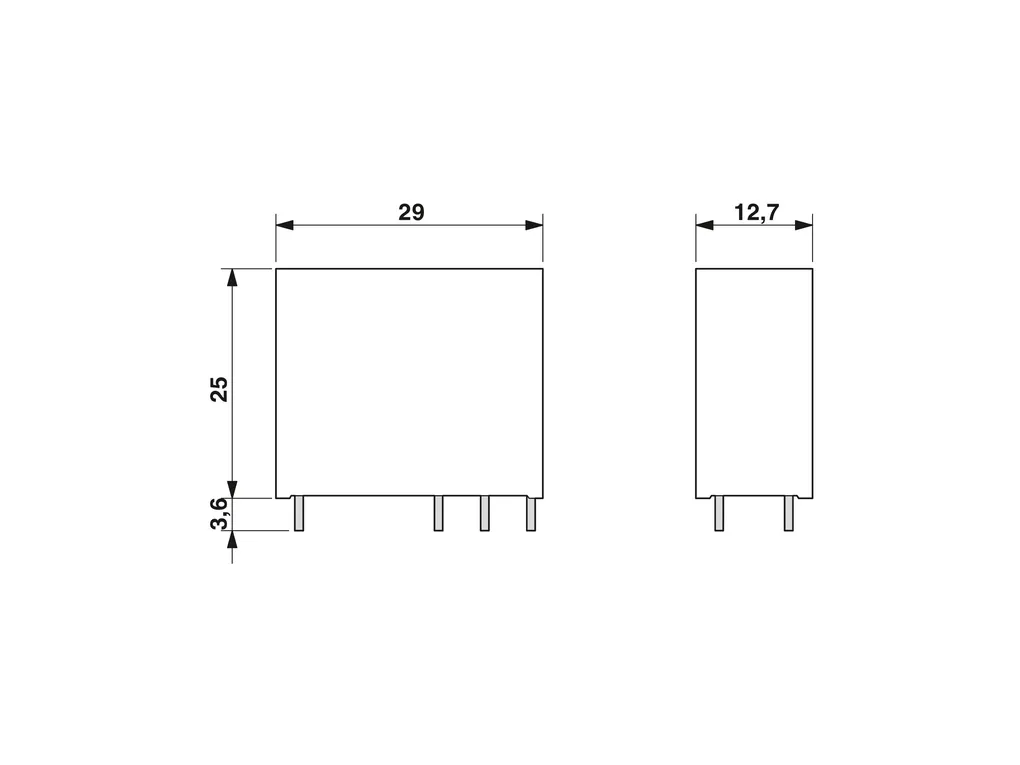

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/31d12b5fa5e40549afb72472815e1a9f/-S204x204-FJPG Width: 12.7 mm Height: 29 mm Depth: 25 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C |
| Approvals | Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 |
| Standards and regulations | Standards/regulations: ENÃ61810-1 VDEÃ0435-201 ENÃ50178 |
