| Product properties | Product type: Single relay Mechanical service life: 5x 106 cycles |
| Electrical properties | Service life electrical: see diagram Maximum power dissipation for nominal condition: 0.42 W Test voltage (Winding/contact): 5 kV AC (50ÃHz, 1Ãmin., winding/contact) Test voltage (Contact/contact): 2.5 kV AC (50ÃHz, 1Ãmin., contact/contact) |
| Input data | Coil side Nominal input voltage UN: 230 VÃAC Input voltage range: 179.4 VÃAC ... 333.5 VÃAC Mains frequency: 50/60 Hz Drive and function: monostable Drive (polarity): non-polarized Typical input current at UN: 3.5 mA Typical response time: 3 ms ... 12 ms (depending on phase relation) Typical release time range: 2 ms ... 8 ms (depending on phase relation) |
| Output data | Switching Contact switching type: 2 changeover contacts Type of switch contact: Single contact Contact material: AgNi, hard gold-plated Maximum switching voltage: 30 VÃAC 36 VÃDC Minimum switching voltage: 12 V (At 1 mA) Limiting continuous current: 50 mA Maximum inrush current: 50 mA Min. switching current: 1 mA (at 12 V) Switching capacity: 1.5 A (at 240ÃV, AC15) Switching: when the gold layer is destroyed Note: the following values are applicable if a gold layer is destroyed Contact material: AgNi Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 12 V (at 10 mA) Limiting continuous current: 8 A Maximum inrush current: 16 A (20Ãms) Min. switching current: 10 mA (at 12 V) Interrupting rating (ohmic load) max.: 2000 VA (for 250 V AC) Switching capacity: 1 A (at 24 V, DC13) 1.5 A (at 24 V, AC15) 1.5 A (at 120 V, AC15) 1.5 A (at 240ÃV, AC15) |
| Connection data | Connection method: Plug / solder connection |

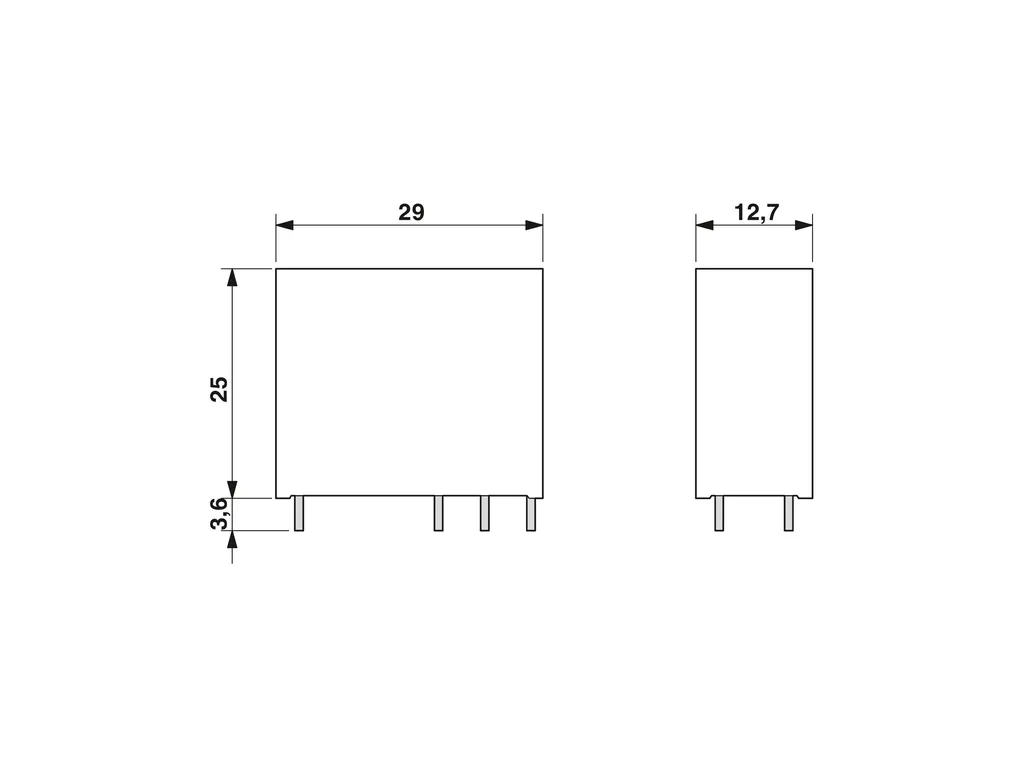

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/31d12b5fa5e40549afb72472815e1a9f/-S204x204-FJPG Width: 12.7 mm Height: 29 mm Depth: 25 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C |
| Approvals | Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 |
| Standards and regulations | Standards/regulations: ENÃ61810-1 VDEÃ0435-201 ENÃ50178 |
