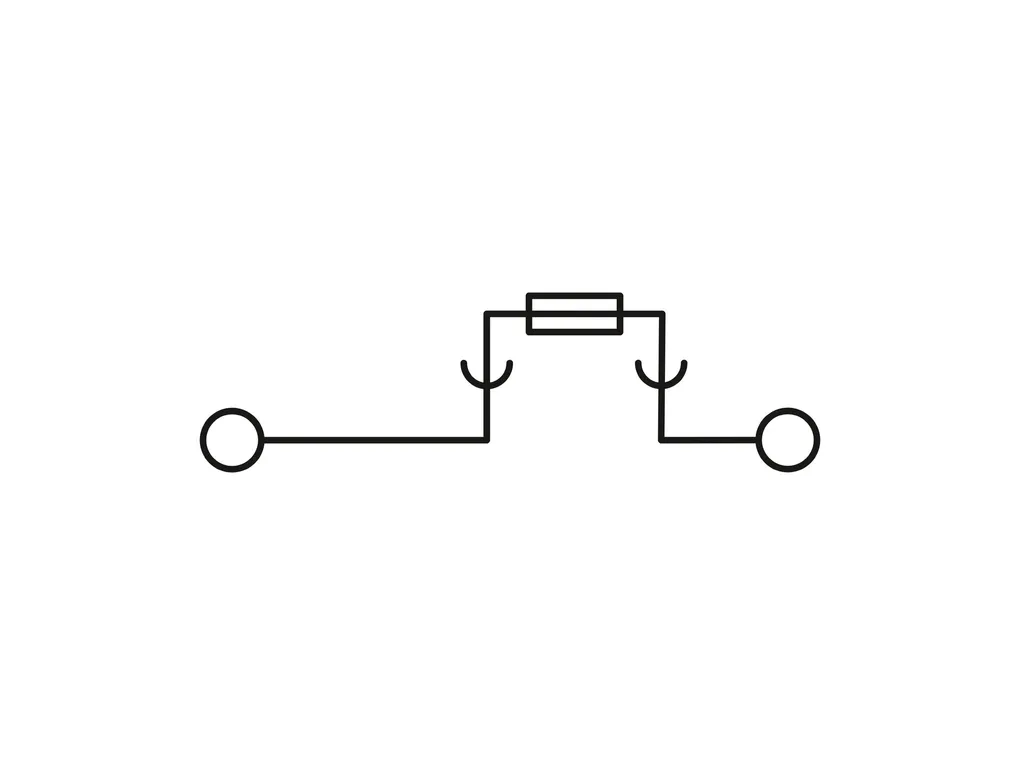

| Product properties | Product type: Fuse terminal block Number of connections: 2 Number of rows: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage: 6 kV Maximum power dissipation for nominal condition: 4 W Fuse: gPV 10.3ÃxÃ38Ãmm in accordance with 60269-6 Maximum power dissipation: 3 W (Fuse insert) |
| Connection data | Number of connections per level: 2 Nominal cross section: 10 mm² Rated cross section AWG: 6 Stripping length: 18 mm Connection in acc. with standard: IEC 60269-1 / -2 Conductor cross section rigid: 1.5 mm² ... 10 mm² Cross section AWG: 14 ... 8 (converted acc. to IEC) Conductor cross section flexible: 1.5 mm² ... 16 mm² Conductor cross section, flexible [AWG]: 14 ... 6 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 1.5 mm² ... 10 mm² Flexible conductor cross section (ferrule with plastic sleeve): 1.5 mm² ... 10 mm² Nominal current: 20 A (the current and voltage are determined by the fuse) Maximum load current: 20 A (the current and voltage are determined by the fuse) Nominal voltage: 1000 VÃDC (the current and voltage are determined by the fuse) Connection cross sections directly pluggable Conductor cross section rigid: 1.5 mm² ... 10 mm² Conductor cross section, rigid [AWG]: 16 ... 6 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 4 mm² ... 10 mm² Flexible conductor cross section (ferrule with plastic sleeve): 2.5 mm² ... 10 mm² |
| Dimensions | Width: 17.6 mm Height: 87 mm Depth on NSÃ35/7,5: 63 mm Depth on NSÃ35/15: 70.5 mm |
| Material specifications | Color: black Flammability rating according to UL 94: V0 Insulating material group: IIIa Insulating material: PA |
| Mechanical properties | Mechanical data Open side panel: No |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -60°C ... 85°C Ambient temperature (storage/transport): -25°C ... 55°C (for a short time, not exceeding 24Ãh, -60ðC to +70ðC) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC 60269-1 / -2 |
| Mounting | Mounting type: NS 35/7,5 NSÃ35/15 |
