PHOENIX CONTACT 3240015
PHOENIX CONTACT 3240015
PHOENIX CONTACTNot available

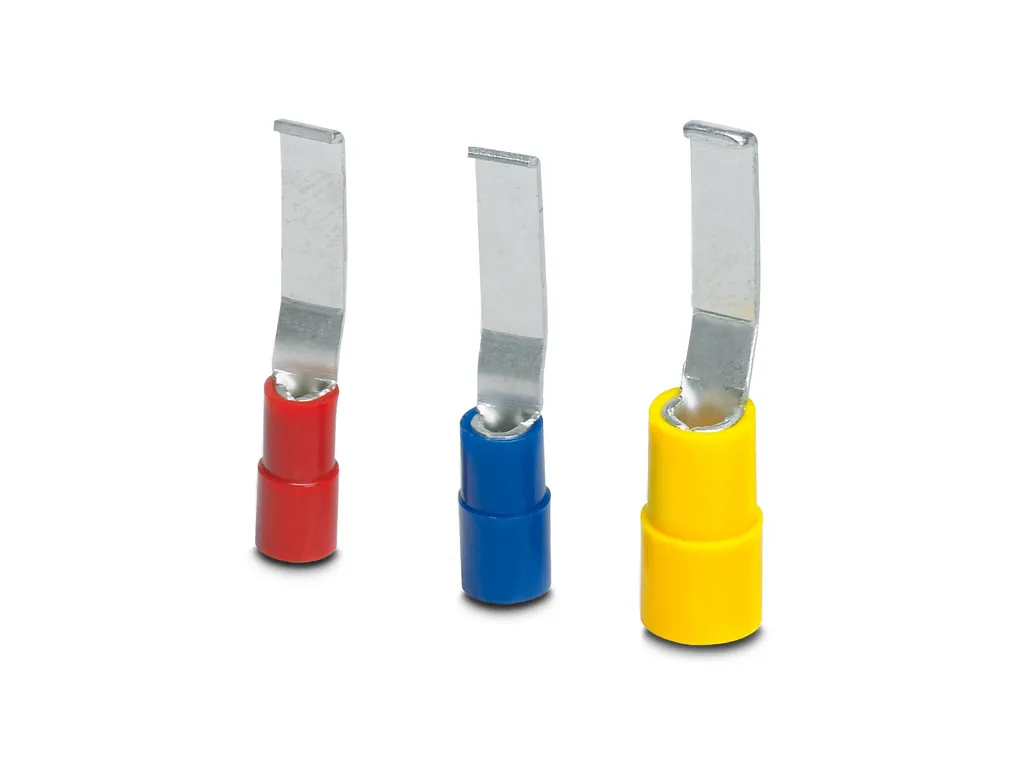

C-BCI 1,5/2,8 - Cable lug

Flat pin cable lug, with tab, soldered neck, red, 0.5 ... 1.5 mm2, pin width: 2.8 mm, easy conductor entry with Easy-Entry, for horizontal and vertical crimping with CRIMPFOX-RCI 6
Product Code: 3240015 copia - copy
Partner cod.: 3240015 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Tecnichal data
Product propertiesProduct type: Connector
Electrical propertiesFuse: no
DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1a58f2807e3bc04696a535eb66cd345f/-S204x204-FJPG
Width: 2.8 mm
Length of the insulating material sleeve: 10.5 mm
Length contact range: 17.5 mm
Maximum stripping length: 7 mm
Min. material thickness: 0.8 mm
Inner dimensions of the insulating collar: 4 mm
Material specificationsColor: red
Material: Copper
Flammability rating according to UL 94: V2
Coating: tin-plated
Insulating material: PA
Components: halogen-free
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -20°C ... 105°C
Permanent temperature: 105°C
Short-term temperature: 120°C
