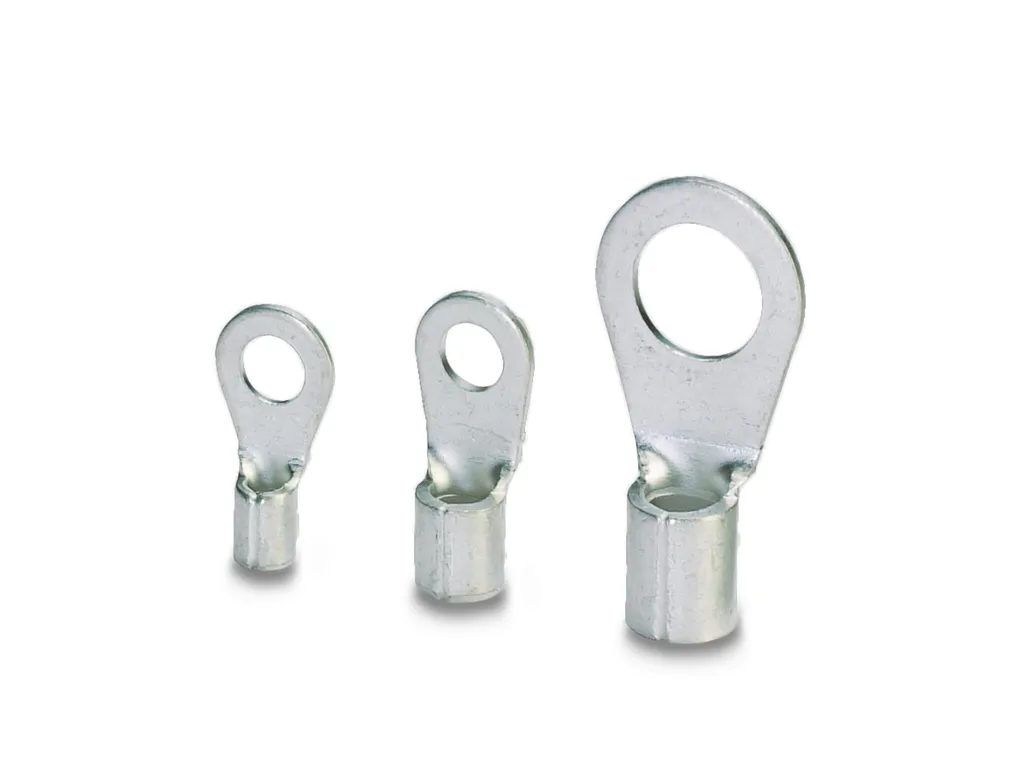

| Product properties | Product type: Connector Product family: Ringkabelschuhe unisoliert |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0d7eeb06ce1f1c41a1fcbdfb00b40e06/-S204x204-FJPG Width: 6 mm Length of the insulating material sleeve: 5 mm Maximum stripping length: 7 mm Distance from the center to the insulating material sleeve: 6 mm Min. material thickness: 0.8 mm Inner dimensions of the insulating collar: 1.6 mm Internal dimensions Internal diameter: 2.8 mm |
| Material specifications | Color: silver Material: Copper Coating: tin-plated |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): 110°C Permanent temperature: 110°C |
| Standards and regulations | Design according to standard: DINÃ46234 |
