| Product properties | Product type: Solid-state relay module Product family: PLC-INTERFACE Application: Class I, Division 2 potentially explosive areas Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Standards/regulations Insulation: Basic insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 0.42 W Test voltage (Input/output): 2.5 kV (50ÃHz, 1Ãmin., input/output) |
| Input data | Nominal input voltage UN: 120 VÃAC 110 VÃDC Input voltage range in reference to UN: 0.9 ... 1.1 Input voltage range: 108 VÃAC ... 132 VÃAC 99 VÃDC ... 121 VÃDC Switching threshold "0" signal in reference to UN: ââ°¤ 0.3 Switching threshold "1" signal in reference to UN: ââ°¥ 0.8 Typical input current at UN: 3.5 mA Typical response time: 3.5 ms (at UN) Typical turn-off time: 7 ms (at UN) Operating voltage display: Yellow LED Protective circuit: Bridge rectifier; Bridge rectifier Transmission frequency: 10 Hz |

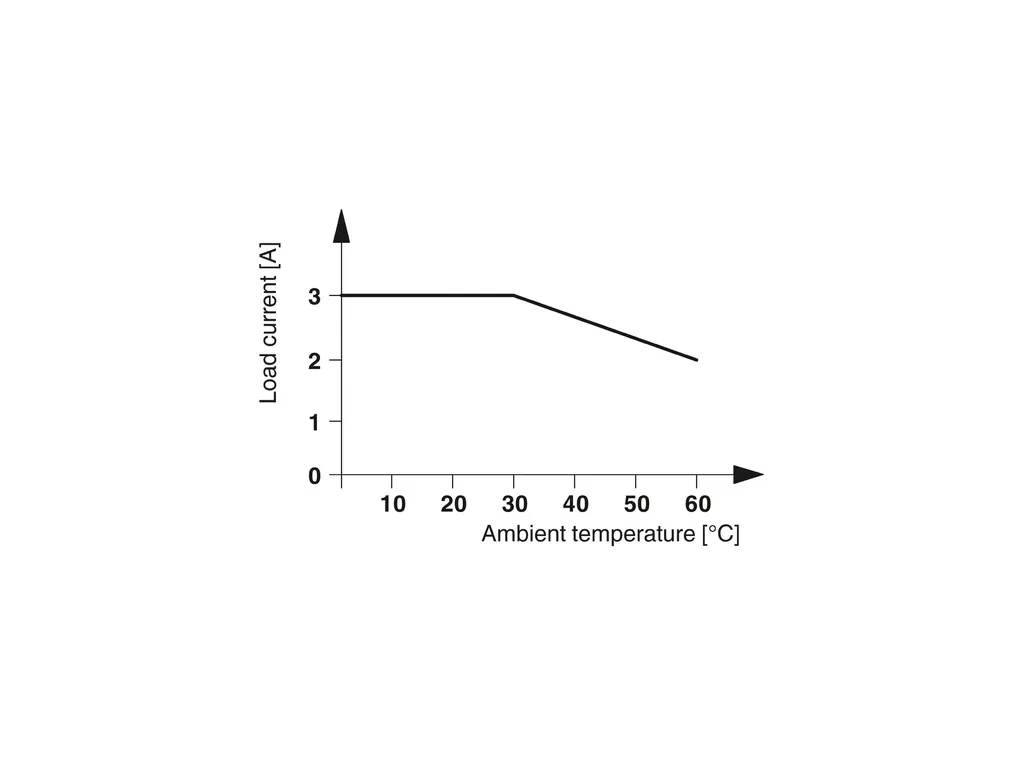

| Output data | Contact switching type: 1 N/O contact Design of digital output: electronic Output voltage range: 3 VÃDC ... 33 VÃDC Limiting continuous current: 3 A Maximum inrush current: 15 A (10 ms) Voltage drop at max. limiting continuous current: ââ°¤ 200 mV Output circuit: 2-conductor, floating Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection |
| Connection data | Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14 Tightening torque: 0.6 Nm ... 0.8 Nm |
| Dimensions | Width: 6.2 mm Height: 80 mm Depth: 94 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Housing) |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -40°C ... 85°C |
| Approvals | CE Certificate: CE-compliant UL, USA Identification: Class I, Zone 2, AEx nA nC IIC T6 UL, USA/Canada Identification: Class I, Div. 2, Groups A, B, C, D UL, Canada Identification: Class I, Zone 2, Ex nA nC IIC Gc T6 X Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 |
| Standards and regulations | Standards/regulations Standards/regulations: IEC 60947-5-1 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
