| Product properties | Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 8 No. of cable outlets: 1 Cable outlet: straight Insulation characteristics Degree of pollution: 2 |
| Electrical properties | Rated voltage (III/3): 72 V (DC) Transmission medium: Copper Transmission characteristics (category): CAT5 (IEC 11801:2002) |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 750 |
| Material specifications | Flammability rating according to UL 94: V2 |

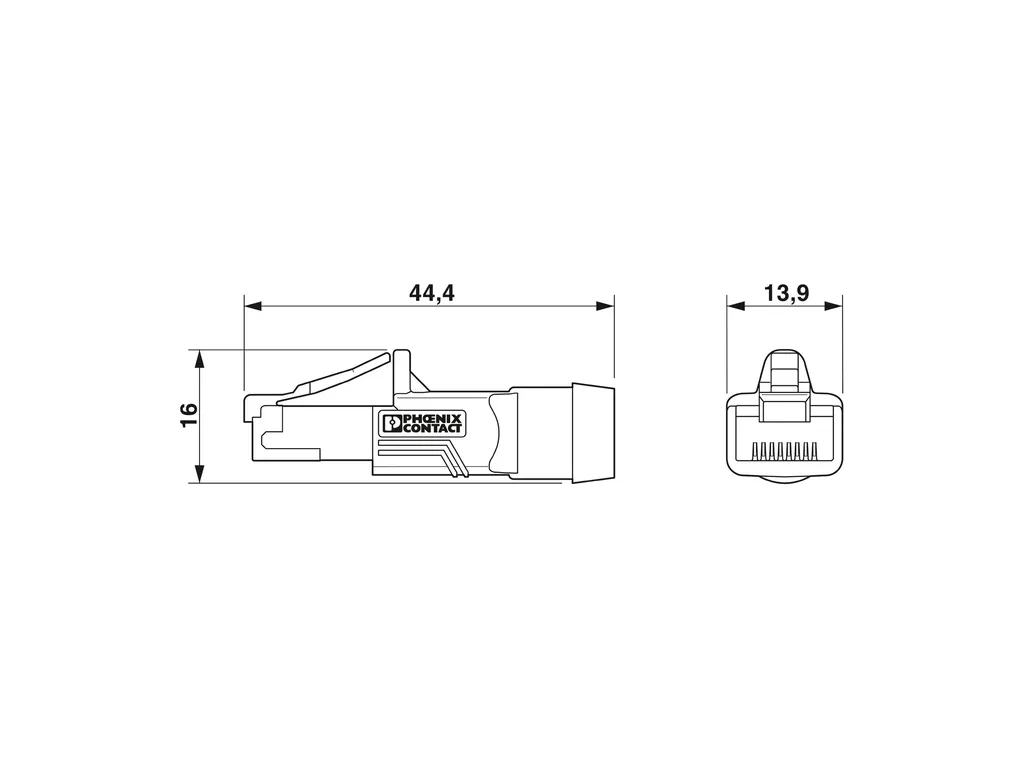

| Connector | Connection 1 Type: Plug straight RJ45 Handle color: gray Material: CuSn (Contact) Ni/Au (Contact surface) PC (Contact carriers) PA (Housing) Insertion/withdrawal cycles: ââ°¥ 750 750 Degree of protection: IP20 Number of positions: 8 Connection 2 Type: Plug straight RJ45 Handle color: gray Material: CuSn (Contact) Ni/Au (Contact surface) PC (Contact carriers) PA (Housing) Insertion/withdrawal cycles: ââ°¥ 750 Number of positions: 8 Degree of protection: IP20 |
| Cable/line | Cable length: 10.00 m Ethernet flexible CAT5, 4-pair, SF/UTPÃ[94Z] Shielded: yes Cable type: Ethernet flexible CAT5, 4-pair, SF/UTP Cable type (abbreviation): 94Z Signal type/category: Ethernet CAT5 (IEC 11801), 1 Gbps Cable structure: 4x2xAWG26/7, SF/UTP External cable diameter: 6.2 mm ñ0.2Ãmm Outer sheath, material: PUR External sheath, color: water blue RALÃ5021 Conductor material: Bare Cu litz wires Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Conductor cross section: 4x 2x 0.14 mm² Material wire insulation: PE Thickness, insulation: 0.19 mm (Signal line) Wire diameter incl. insulation: 0.92 mm Single wire, color: white/blue-blue, white/orange-orange, white/green-green, white/brown-brown Twisted pairs: 2 cores to the pair Overall twist: 4 pairs Shielding: Tinned copper braided shield Optical shield covering: 85 % Test voltage Core/Core: 700 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 700 V (50ÃHz, 1Ãmin.) Cable resistance: ââ°¤ 290 é/km (at 20ðC) Cable insulation resistance: ââ°¥ 500 Mé*km (at 20ðC) Wave impedance: 100 é ñ15Ãé (at 100 MHz) Smallest bending radius, fixed installation: 51.2 mm Smallest bending radius, movable installation: 51.2 mm Halogen-free: according to IEC 60754-1 Resistance to oil: in accordance with DINÃENÃ60811-2-1 Flame resistance: IEC 60332-1-2 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 70°C (RJ45 connector) |
