PTS 1,5/ 3-5,0-H AP TRB BK - PCB terminal block

PCB terminal block, number of potentials: 3, number of rows: 1, number of positions per row: 3, product range: PTSH 1,5/..-H, pitch: 5 mm, connection method: Push-in connection, mounting: Wave soldering, conductor/PCB connection direction: 0°, color: black, Pin layout: Linear pinning, Solder pin [P]: 2.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard
Cod. Articolo: 1709567 copia - copy
Cod. Fornitore: 1709567 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesType: PC termination block
Product line: COMBICON Terminals S
Product type: Printed circuit board terminal
Product family: PTSH 1,5/..-H
Number of positions: 3
Pitch: 5 mm
Number of connections: 3
Number of rows: 1
Number of potentials: 3
Pin layout: Linear pinning
Solder pins per potential: 1
Electrical propertiesDegree of pollution: 3
MountingMounting type: Wave soldering
Pin layout: Linear pinning
Connection method: Push-in spring connection
Material specificationsMaterial data - housing
Color (Housing): black (9005)

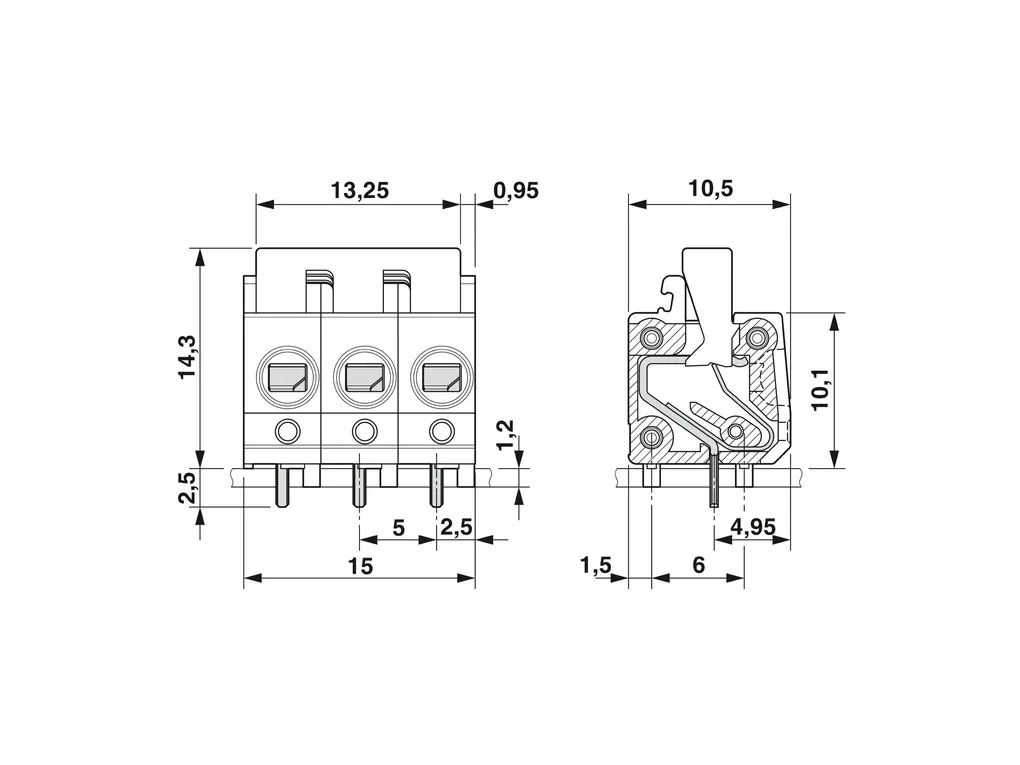

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2483814cd435914581aff3d7cabdea93/-S204x204-FJPG
Pitch: 5 mm
Width [w]: 15 mm
Height [h]: 16.8 mm
Length [l]: 10.5 mm
Installed height: 14.3 mm
Solder pin length [P]: 2.5 mm
PCB design
Hole diameter: 1.2 mm
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C (dependent on the derating curve)
Ambient temperature (storage/transport): -40°C ... 70°C
Ambient temperature (assembly): -5°C ... 100°C
Packaging specificationsType of packaging: packed in cardboard
