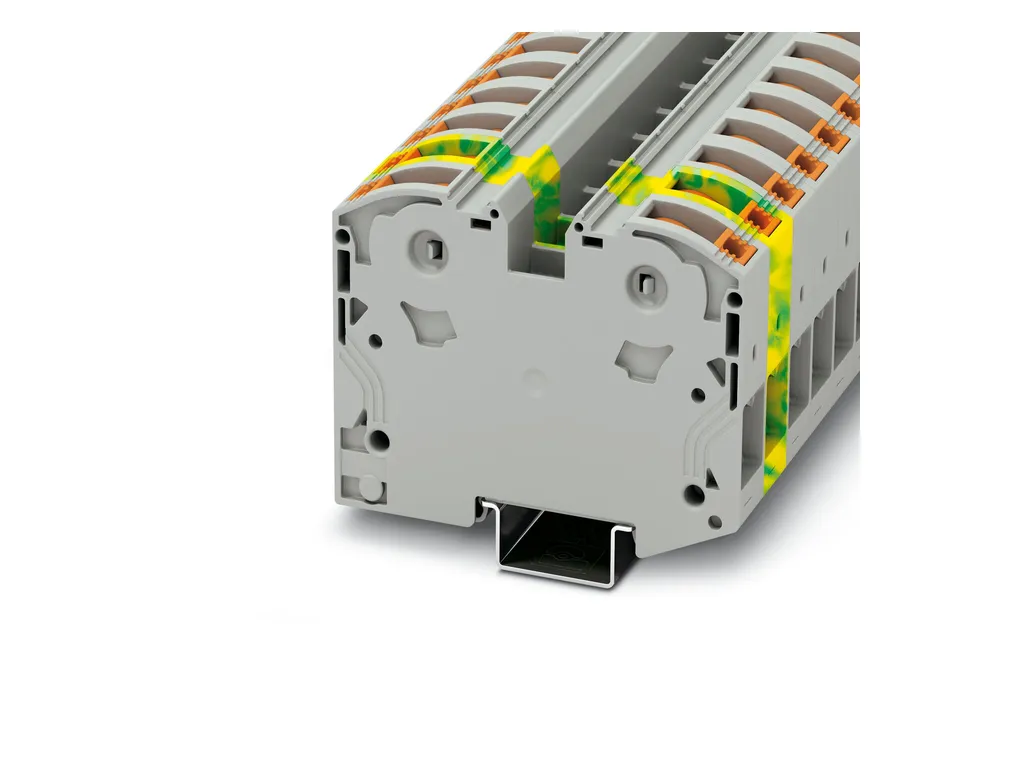

| Product properties | Product type: Ground terminal block Number of connections: 2 Number of rows: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 4.06 W |
| Connection data | Grounding foot: Yes Number of connections per level: 2 Nominal cross section: 35 mm² Rated cross section AWG: 2 Note: Use an appropriate NS 35... copper or aluminum DIN rail for connection cross sections > 35 mm²/2 AWG. Stripping length: 25 mm Conductor cross section rigid: 2.5 mm² ... 35 mm² Cross section AWG: 12 ... 2 (converted acc. to IEC) Conductor cross section flexible: 2.5 mm² ... 35 mm² Conductor cross section, flexible [AWG]: 12 ... 2 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 2.5 mm² ... 35 mm² Flexible conductor cross section (ferrule with plastic sleeve): 2.5 mm² ... 35 mm² Connection cross sections directly pluggable Conductor cross section rigid: 2.5 mm² ... 35 mm² Conductor cross section, rigid [AWG]: 12 ... 2 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 2.5 mm² ... 35 mm² Flexible conductor cross section (ferrule with plastic sleeve): 2.5 mm² ... 35 mm² |
| Ex data | Rated data (ATEX/IECEx) Identification: ïÃÃIIÃ2ÃGDÃÃEx eb IIC Gb Operating temperature range: -60°C ... 110°C Ex-certified accessories: 1206612 SZF 3-1,0X5,5 1201662 E/AL-NS 35 output: (Permanent) Ex connection data General Ferrule length: 25 mm Stripping length: 25 mm Nominal cross section: 35 mm² Rated cross section AWG: 2 Connection capacity rigid: 2.5 mm² ... 35 mm² Connection capacity AWG: 12 ... 2 Conductor cross section flexible, with ferrule without plastic sleeve min.: 6 mm² Conductor cross section flexible, with ferrule without plastic sleeve max.: 35 mm² |
| Dimensions | Width: 16 mm Height: 91.6 mm Depth on NSÃ35/7,5: 69.8 mm Depth on NSÃ35/15: 77.3 mm |
| Material specifications | Color: green-yellow Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed |
| Mechanical properties | Mechanical data Open side panel: No |
| Environmental and real-life conditions | Oscillation/broadband noise Specification: DINÃENÃ50155 (VDEÃ0115-200):2008-03 Spectrum: Service life test categoryÃ2, bogie-mounted Frequency: f1 = 5 Hz to f2 = 250 Hz ASD level: 6.12 (m/s²)²/Hz Acceleration: 3.12g Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Result: Test passed Shocks Specification: DINÃENÃ50155 (VDEÃ0115-200):2008-03 Pulse shape: Half-sine Acceleration: 30g Shock duration: 18Ãms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Result: Test passed Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60ðC to +70ðC) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
| Mounting | Mounting type: NSÃ35/15 |
