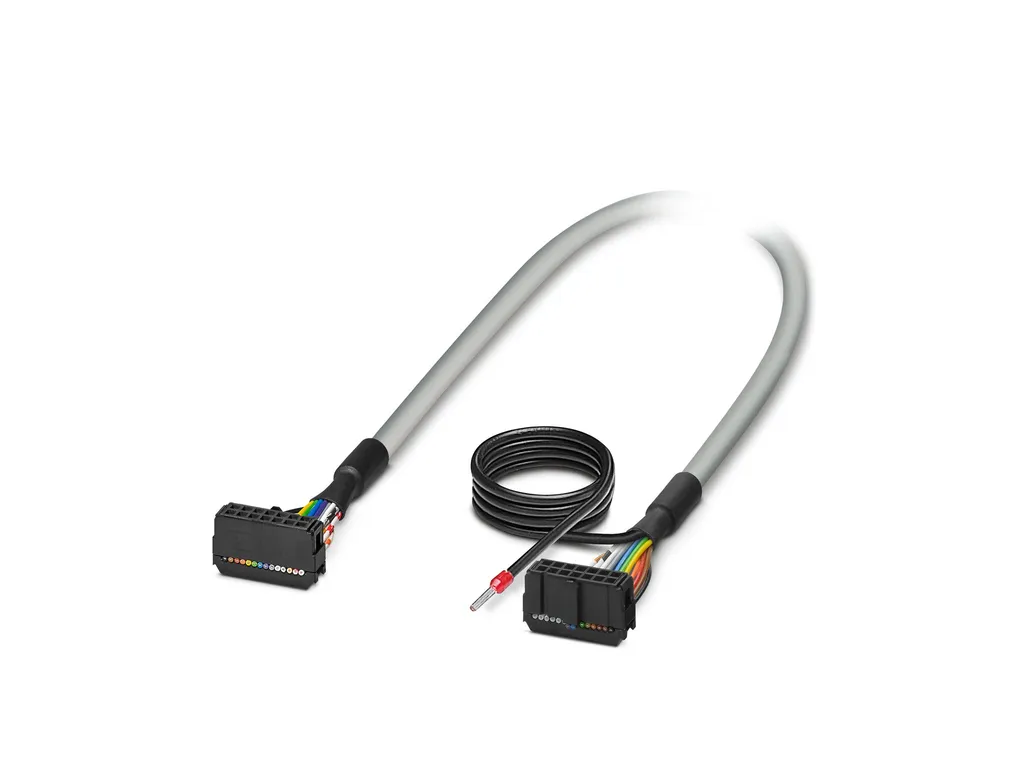

| Product properties | Product type: System cable |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Degree of protection (Installation location): ââ°¥ IP54 (Installation location) Ambient temperature (operation): -40°C ... 70°C (fixed installation) -10°C ... 70°C (flexible installation) Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 2000 m |
| Electrical properties | Operating voltage (AC): ââ°¤ 30 VÃAC Operating voltage (DC): ââ°¤ 60 VÃDC Nominal operating mode: 100% operating factor Current (Per path): ââ°¤ 2 A (Uncoiled, see derating) |
| Cable/line | Cable length: 3 m Number of positions: 15 Shielded: yes Conductor type: Assembled, shielded, halogen-free round cable Conductor structure signal line: 14x 0.15 mm AWG signal line: 24 Conductor cross section: 15x 0.25 mm² Wire diameter incl. insulation: 1.2 mm ñ0.05 mm External cable diameter: 7.9 mm ñ0.5 mm Outer sheath, material: Halogen-free sheath External sheath, color: gray Conductor material: Bare Cu litz wires Cable resistance: ââ°¤ 80 é/km (at 20ðC) Insulation resistance: ââ°¥ 20 Mé*km (at 20ðC) Smallest bending radius, fixed installation: 67 mm Smallest bending radius, movable installation: 126 mm Max. bending cycles: 5000 (at a radius of ââ°¥ 15x outside diameter) Halogen-free: yes Flame resistance: IEC 60332-1-2 (raw cable) VDEÃ0842, PartÃ332-1-2 (raw cable) IEC 60332-3-22 (raw cable) Resistance to oil: can withstand occasional splashes (raw cable) color code D-SUB15 (1): D-SUB15 (1) = white D-SUB15 (2): D-SUB15 (2) = brown D-SUB15 (3): D-SUB15 (3) = green D-SUB15 (4): D-SUB15 (4) = yellow D-SUB15 (5): D-SUB15 (5) = gray D-SUB15 (6): D-SUB15 (6) = pink D-SUB15 (7): D-SUB15 (7) = blue D-SUB15 (8): D-SUB15 (8) = red D-SUB15 (9): D-SUB15 (9) = black D-SUB15 (10): D-SUB15 (10) = violet D-SUB15 (11): D-SUB15 (11) = gray-pink D-SUB15 (12): D-SUB15 (12) = red-blue D-SUB15 (13): D-SUB15 (13) = white-green D-SUB15 (14): D-SUB15 (14) = brown-green D-SUB15 (15): D-SUB15 (15) = white-yellow |
| Connection data | Connection 1 Connection in acc. with standard: IEC 60807-2 DINÃ41652 Connection method: D-SUB socket strip Screw thread: UNC 4-40 Number of connections: 1 Number of positions: 15 Tightening torque: 0.2 Nm Insertion/withdrawal cycles: > 200 Pitch: 2.74 mm Connection 2 Connection in acc. with standard: IEC 60807-2 DINÃ41652 Connection method: D-SUB socket strip Screw thread: UNC 4-40 Number of connections: 1 Number of positions: 15 Tightening torque: 0.2 Nm Insertion/withdrawal cycles: > 200 Pitch: 2.74 mm |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
