1125984 PHOENIX CONTACT -

PLC-RSC-230UC/ 1AU/SEN/SO46 - Relay Module

PLC-INTERFACE for protection against interference currents/voltages on the control side. Consisting of PLC-BSC-230UC/1/SEN/SO46 basic terminal block with screw connection and plug-in miniature relay with multi-layer gold contact, 1N/O contact, 230VAC input voltage

Product Code: 1125984 copia - copy

Partner cod.: 1125984 copia - copy

PHOENIX CONTACT

Notes	General: The PLC-ATP partition plate must be installed for voltages greater than 250ÃV (L1, L2, L3) between identical terminal blocks on adjacent modules. The PLC-ATP separating plate should be installed for safe isolation between adjacent modules The PLC-ATP separating plate is required at the start and end of every PLC terminal strip. The system installer must ensure the touch protection of the product (at voltages > 25 V AC/60 V DC). The product is a built-in device without protection against direct contact. If the specified maximum values for multi-layer contact relays are exceeded, the gold plating is destroyed. The maximum values of the power contact relay are then valid. This can result in a shorter service life than with a pure power contact.
Product properties	Product type: Relay Module Product family: PLC-INTERFACE Application: Input function Operating mode: 100% operating factor Mechanical service life: 2x 10⁷ cycles Insulation characteristics Insulation: Safe isolation, reinforced insulation Insulation characteristics: Air clearances and creepage distances Insulation: Safe isolation, reinforced insulation Overvoltage category: III Pollution degree: 3
Electrical properties	Maximum power dissipation for nominal condition: 2.3 W Test voltage (Winding/contact): 4 kV_rms (50ÃHz, 1Ãmin., winding/contact) Air clearances and creepage distances Rated insulation voltage: 250 VÃAC Rated surge voltage: 6 kV

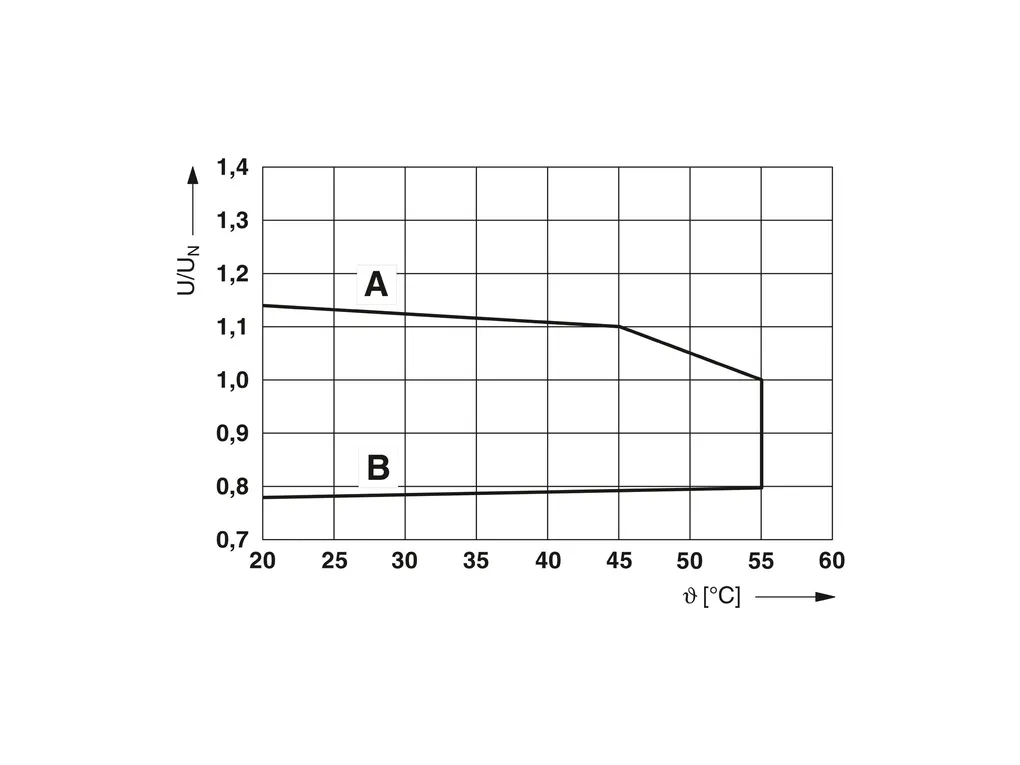

Input data	Coil side Nominal input voltage U_N: 230 VÃAC 220 VÃDC Input voltage range: 179.4 VÃAC ... 264.5 VÃAC (20Ã°C) 171.6 VÃDC ... 253 VÃDC (20Ã°C) Mains frequency: 50/60 Hz Drive and function: monostable Drive (polarity): polarized Typical input current at U_N: 8.8 mA (50ÃHz) 10 mA (60ÃHz) Typical response time: 7 ms Typical release time: 20 ms Typical release voltage: 80 VÃAC Coil voltage: 60 VÃDC Protective circuit: Bridge rectifier RC element Status display: Yellow LED
Output data	Switching Contact switching type: 1 N/O contact Type of switch contact: Single contact Contact material: AgSnO, hard gold-plated Maximum switching voltage: 30 VÃAC 36 VÃDC Minimum switching voltage: 100 mV (at 10 mA) Limiting continuous current: 50 mA Maximum inrush current: 50 mA Min. switching current: 1 mA (24ÃV) Short-circuit current: 200 A (conditional short-circuit current) Interrupting rating (ohmic load) max.: 1.2 W (24ÃVÃDC) Switching capacity min.: 0.12 W Output fuse: 4 A gL/gG NEOZED
Connection data	Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14 Tightening torque: 0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing))
Dimensions	Width: 6.2 mm Height: 80 mm Depth: 94 mm
Environmental and real-life conditions	Ambient conditions Degree of protection (Relay base): IP20 (Relay base) Degree of protection (Relay): RT III (Relay) Degree of protection (Installation location): Ã¢Ã¢°¥ IP54 (Installation location) Ambient temperature (operation): -40°C ... 55°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 2000 m
Approvals	CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant Shipbuilding approval Certificate: TAE0000196 Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 DNV GL data Temperature: D Humidity: A Vibration: B/C EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive
Standards and regulations	Air clearances and creepage distances Standards/regulations: ENÃ61810 IEC 60947-5-1
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
