1278826 PHOENIX CONTACT -

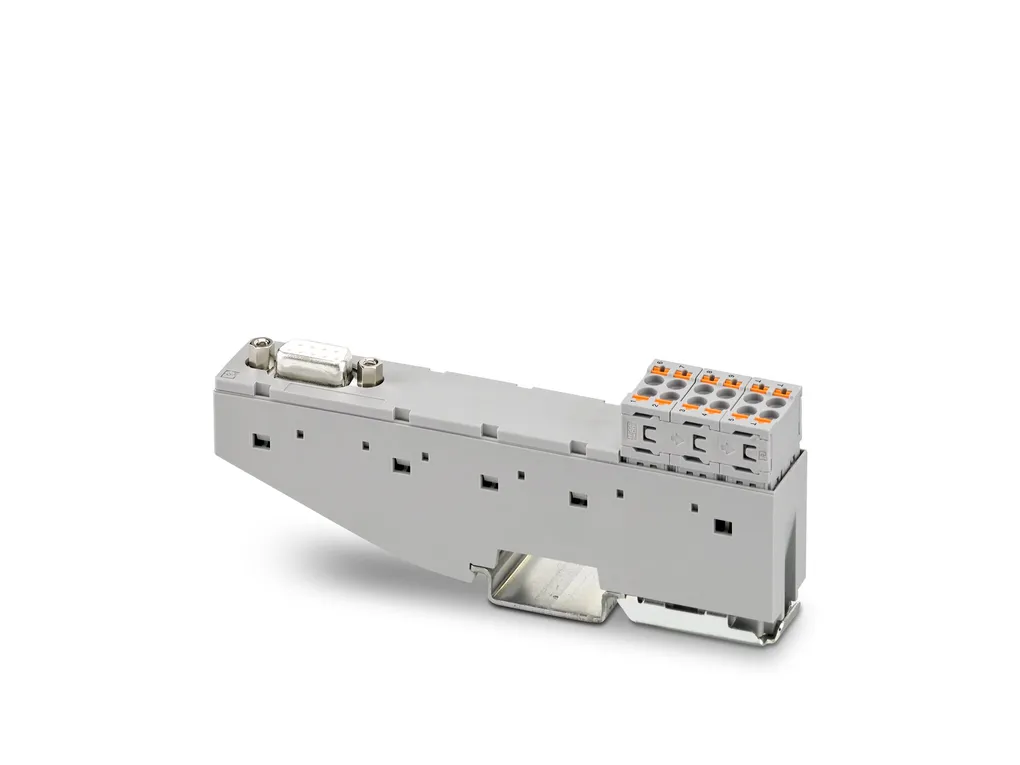

VFC-PT/D9SUB/F - Interface module

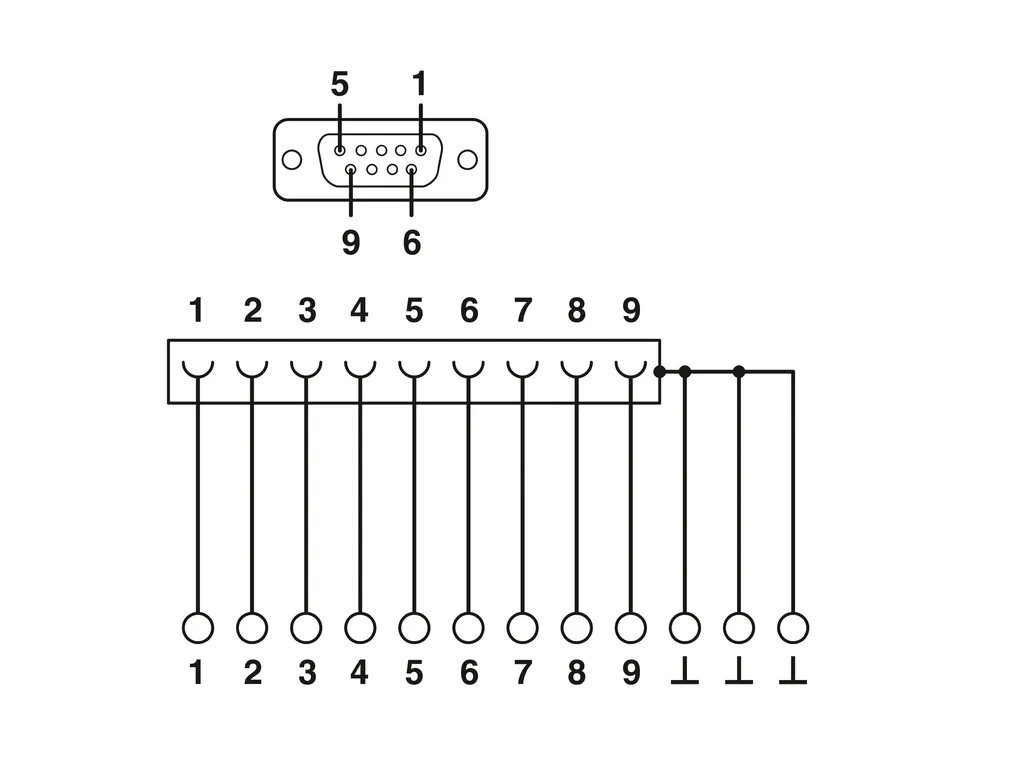

VARIOFACE Front Connect, 1:1 D-SUB termination board with Push-in front connections and D-SUB female strip, number of positions: 9, overall width: 19mm

Product Code: 1278826 copia - copy

Partner cod.: 1278826 copia - copy

PHOENIX CONTACT

Product properties	Product type: Interface module Product family: VARIOFACE Front Connect Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2
Electrical properties	Max. permissible operating voltage: 30 VÃAC 60 VÃDC Max. permissible current: 2 A (per branch) Air clearances and creepage distances Rated insulation voltage: 63 V Rated surge voltage: 0.8 kV (1.2/50 Ã¼s)
Connection data	Controller level Connection in acc. with standard: IEC 60807-2 DINÃ41652 Connection method: D-SUB socket strip Number of connections: 1 Number of positions: 9 Field level Connection method: Push-in connection Stripping length: 10 mm Number of positions: 12 Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² 0.25 mm² ... 1.5 mm² (Ferrules without plastic sleeve) 0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve) Conductor cross section AWG: 24 ... 16
Dimensions	Item dimensions Width: 18.9 mm Height: 127.2 mm Depth: 46.85 mm
Material specifications	Flammability rating according to UL 94: V0
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Degree of protection (Installation location): IP54 (Installation location) Ambient temperature (operation): -40°C ... 70°C (Ã¢Ã¢°¤Ã2000Ãm) -40°C ... 63°C (2001Ãm - 3000Ãm) Altitude: Ã¢Ã¢°¤ 3000 m
Approvals	UL, USA/Canada Identification: UL 61010-2-201 CSA, USA/Canada Identification: CSAÃC22.2 NO.Ã61010-2-201
Standards and regulations	Air clearances and creepage distances Standards/regulations: DINÃENÃ60664-1
Mounting	Mounting type: DIN rail mounting Mounting position: any
Notes	General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
