2314273 PHOENIX CONTACT -

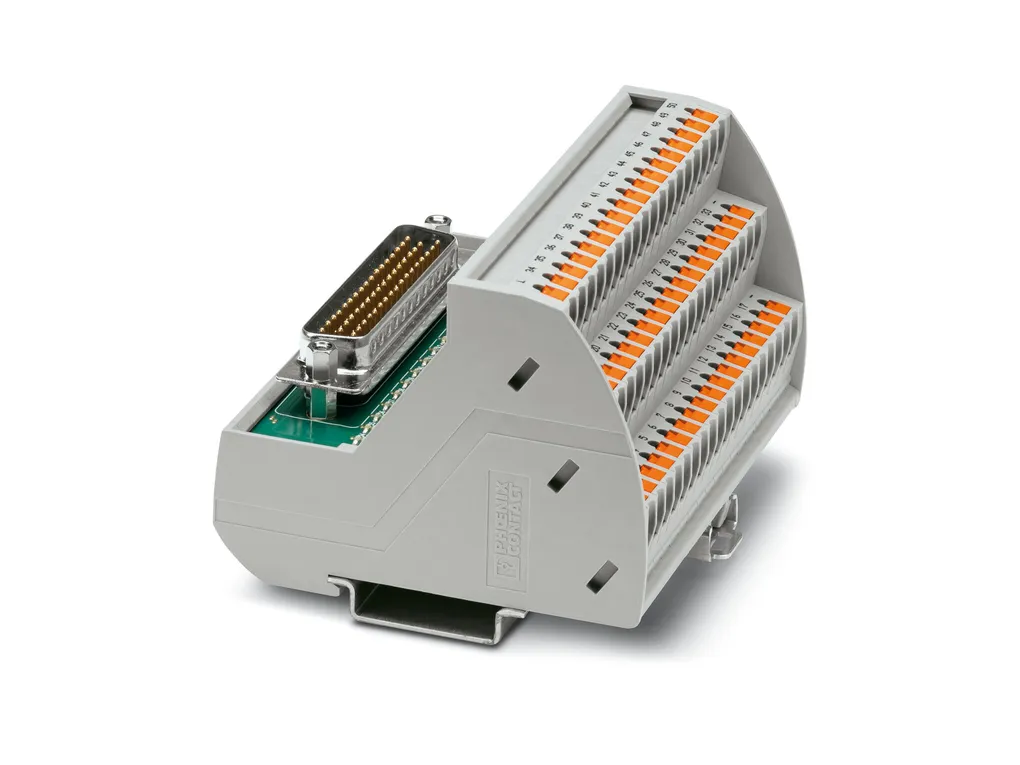

FLKMS-KS40/SI/AI16/YCS - Passive module

16-channel analog module with a screw connection and a fuse for each signal path (5 x 20 mm) with failure indication (LED). The voltage supply and the 40-pos. system connection are designed redundantly. Suitable for the Yokogawa AAI141 and AAI143 cards.

Product Code: 2314273 copia - copy

Partner cod.: 2314273 copia - copy

PHOENIX CONTACT

Product properties	Product type: Interface module No. of channels: 8 16 Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2
Electrical properties	No. of channels: 816 Operating voltage range: 19.2 VÃDC ... 26.4 VÃDC Fuse: 0.1 A 5x20 (slow-blow) (F1 ... F16) Current (per branch): Ã¢Ã¢°¤ 0.1 A Current (Voltage supply P1+, P2+): Ã¢Ã¢°¤ 2 A Air clearances and creepage distances Rated insulation voltage: 50 V Rated surge voltage: 0.5 kV (1.2/50 Ã¼s) Supported controller YOKOGAWA CS3000 CentumVP Suitable I/O card: AAI141 AAI143 Supported controller YOKOGAWA STARDOM Suitable I/O card: NFAI141 NFAI143 NFAI135

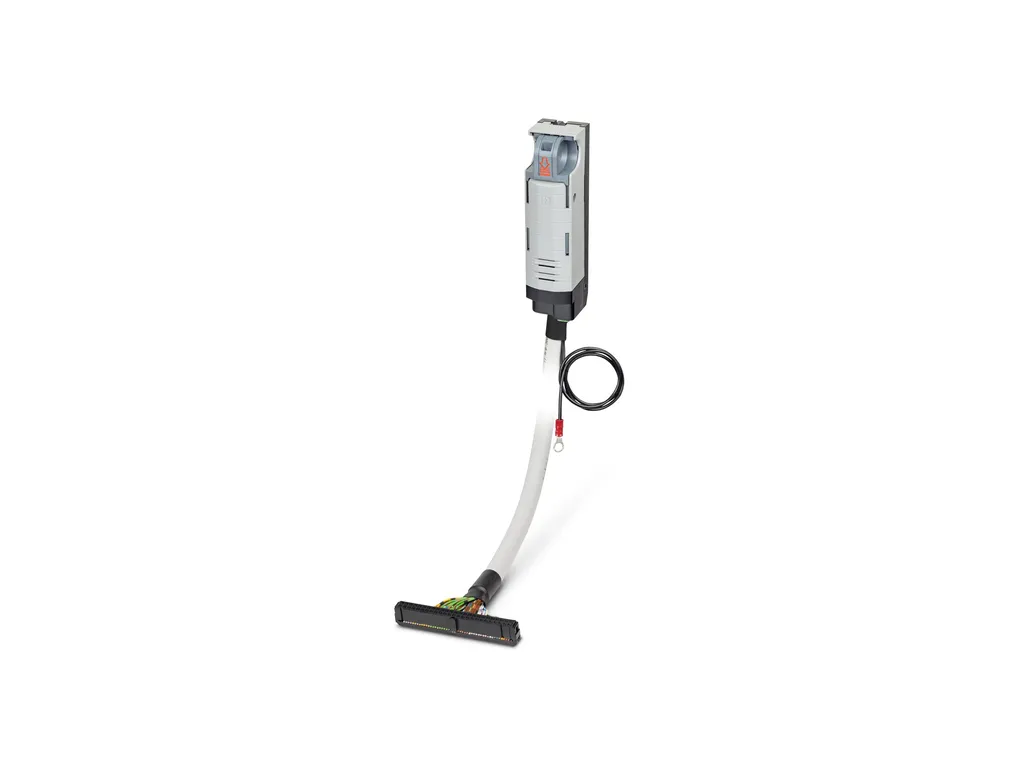

Connection data	ConnectionÃ1 (control level) Connection method: Yokogawa KS-compatible Number of connections: 2 Number of positions: 40 Note: Usable system cables: Phoenix Contact YUC40, Yokogawa KS1 Tightening torque: 0.5 Nm Pitch: 2.54 mm ConnectionÃ2 (field level) Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Number of positions: 48 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 ConnectionÃ3 (HART connector) Connection method: HART connector Number of connections: 1 Number of positions: 26 Pitch: 1.27 mm ConnectionÃ4 (supply) Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Number of positions: 6 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12
Signaling	Status display: Yellow LED Status display present: Yes, if the fuse fails

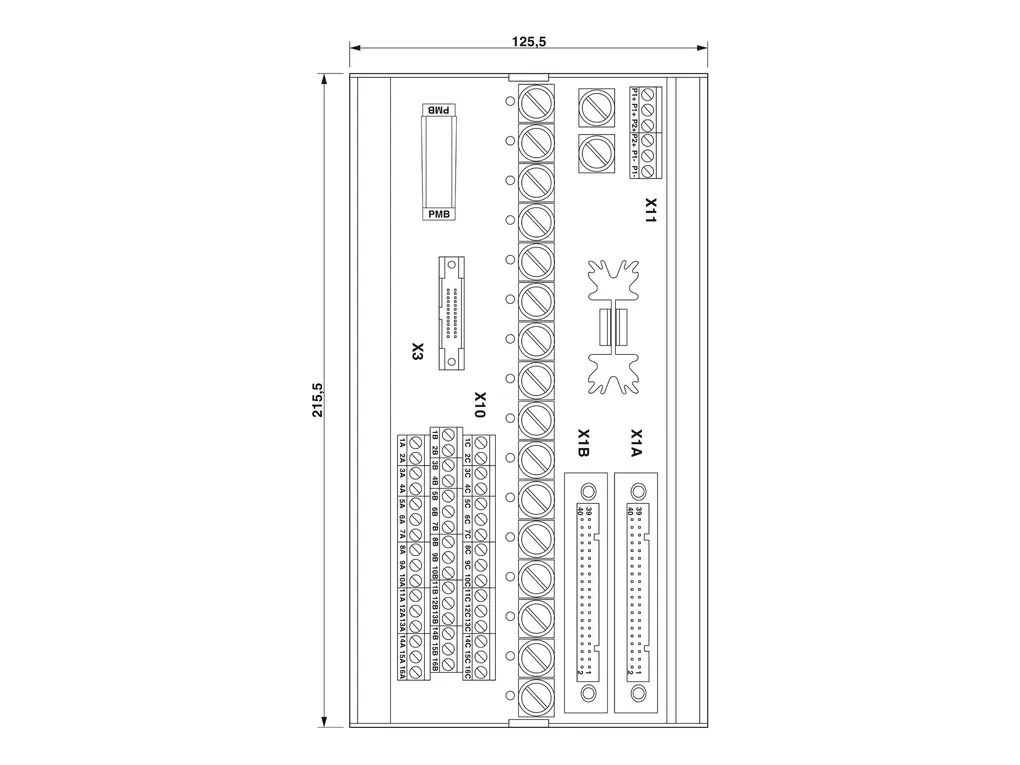

Dimensions	Item dimensions Width: 215.5 mm Height: 125.4 mm Depth: 79.3 mm
Environmental and real-life conditions	Ambient conditions Degree of protection (Module): IP00 Degree of protection (Installation location): Ã¢Ã¢°¤ IP54 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C Altitude: Ã¢Ã¢°¤ 2000 m
Approvals	UKCA Certificate: UKCA-compliant
Standards and regulations	Air clearances and creepage distances Standards/regulations: ENÃIEC 60664-1
Mounting	Mounting type: DIN rail mounting Mounting position: any
Notes	General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
