| Product properties | Product type: Master cable, assembled Number of positions: 6 Application: Sensor/actuator box Number of slots: 4 Coding: A |
| Electrical properties | Nominal voltage UN: 30 VÃAC 30 VÃDC |
| Signaling | Status display present: No |
| Material specifications | Material: PUR Cu alloy Flammability rating according to UL 94: HB Seal material: NBR Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: TPU GF |
| Connector | Connection 1 Head design: Socket Head cable outlet: angled Head thread type: M12 Coding: A Connection 2 Head design: free cable end |

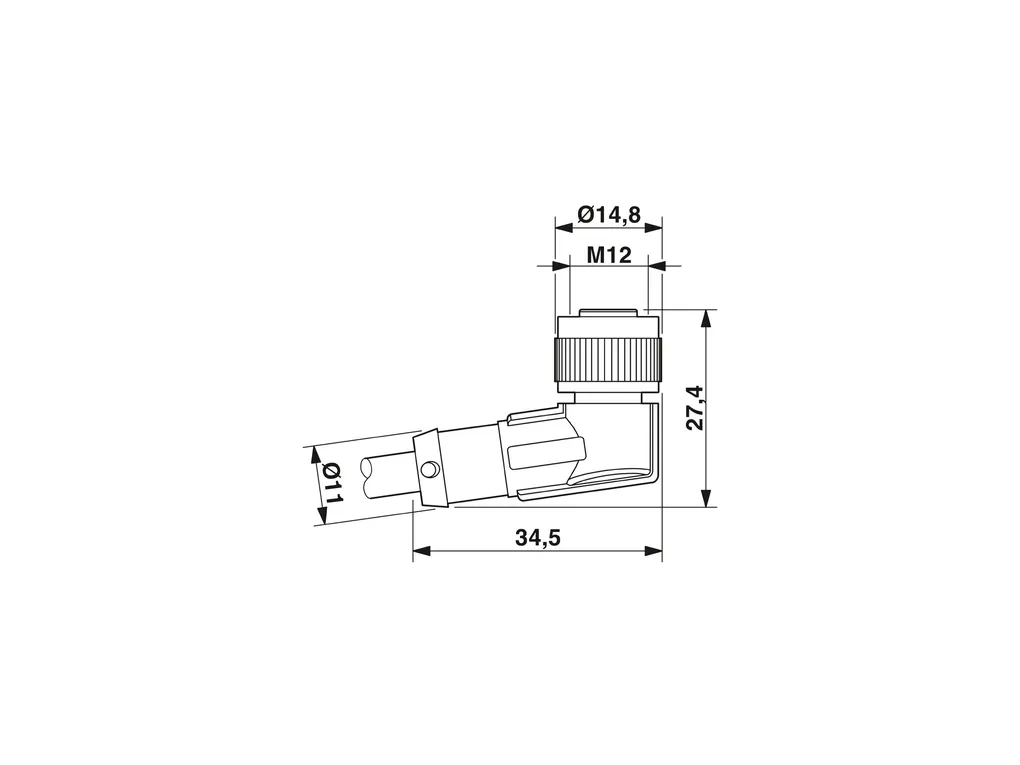

| Cable/line | Cable length: 5 m PUR halogen-free blackÃ[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4e2b9f23052f244b90d2123984241b9f/-S204x204-FJPG Cable weight: 34 kg/km Number of positions: 6 Shielded: no Cable type: PUR halogen-free blackÃ[PUR] Conductor structure signal line: 32x 0.10 mm AWG signal line: 24 Conductor cross section: 6x 0.25 mm² (Signal line) Wire diameter incl. insulation: 1.17 mm ñ0.02Ãmm External cable diameter: 5 mm 5 mm ñ0.15Ãmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material, filler: PE Material wire insulation: PP Single wire, color: brown, white, blue, black, gray, pink Thickness, insulation: ââ°¥ 0.21 mm (Core insulation) Thickness, outer sheath: approx. 0.7 mm Overall twist: Six cores around the filler to the core Max. conductor resistance: 78 é/km (at 20ðC) Insulation resistance: ââ°¥ 100 Mé*km (at 20ðC) Nominal voltage, cable: ââ°¤ 300 V Test voltage: ââ°¥ 3000 V Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 Flame resistance: in accordance with DIN UL-Style 20549 Resistance to oil: in accordance with DINÃENÃ60811-2-1 Other resistance: Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant partly UV-resistant in accordance with DINÃENÃISOÃ4892-2-A Special properties: Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -25°C ... 80°C (Plug / socket) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
| Mounting | Connection method: Fixed connection |
