| Product properties | Product type: System cable |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP00 Degree of protection (Installation location): ââ°¥ IP54 (Installation location) Ambient temperature (operation): -40°C ... 70°C (fixed installation) -10°C ... 70°C (flexible installation) Ambient temperature (storage/transport): -20°C ... 70°C Altitude: ââ°¤ 2000 m |

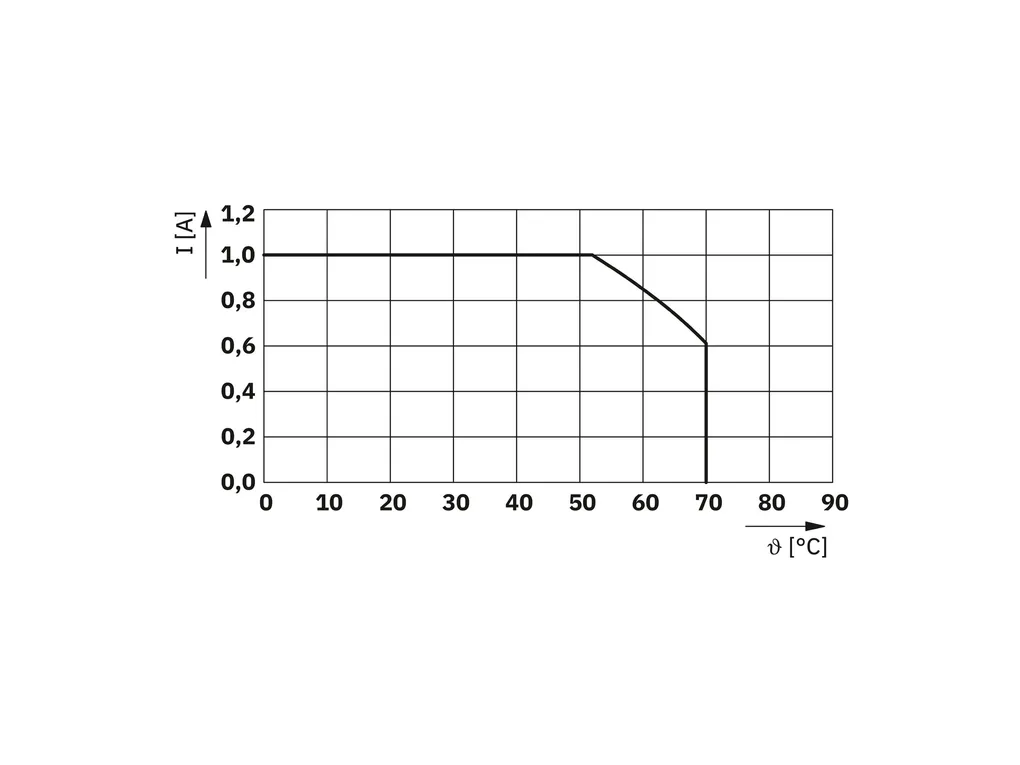

| Electrical properties | Operating voltage (AC): ââ°¤ 30 VÃAC Operating voltage (DC): ââ°¤ 60 VÃDC Nominal operating mode: 100% operating factor Current (Per path, 50°C): ââ°¤ 1 A (Uncoiled, see derating) Current (Per path, 70°C): ââ°¤ 0.6 A (Uncoiled, see derating) Supported controller ABB S800 I/O Suitable I/O card: DI810 DI811 DI814 DI818 DI830 DI831 DI840 DI885 DO810 DO814 DO818 DO840 |
| Cable/line | Cable length: 1 m 14X0.14Ã[PVC] UL AWM Style: 2464/1061 Number of positions: 14 Shielded: no Cable type: 14X0.14Ã[PVC] Conductor type: Round cable set Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Conductor cross section: 14x 0.14 mm² Wire diameter incl. insulation: 1 mm ñ0.03Ãmm External cable diameter: 6.4 mm ñ0.4Ãmm Outer sheath, material: Semi-rigid PVC External sheath, color: gray Conductor material: Tin-plated Cu litz wires Cable resistance: ââ°¤ 145 é/km (20ðC) Insulation resistance: ââ°¥ 20 Mé*km (20ðC) Smallest bending radius, fixed installation: 55 mm Smallest bending radius, movable installation: 104 mm Max. bending cycles: 5000 (at a radius of ââ°¥ 15x outside diameter) Halogen-free: no Flame resistance: IEC 60332-1-2 (raw cable) VDEÃ0842, PartÃ332-1-2 (raw cable) IEC 60332-3-22 (raw cable) ULÃVW-1 CSA FT-1 Resistance to oil: can withstand occasional splashes (raw cable) color code D-SUB25 (1): IDC/FLK14-1 (9) = gray D-SUB25 (2): IDC/FLK14-1 (10) = white D-SUB25 (3): IDC/FLK14-1 (1) = black D-SUB25 (4): IDC/FLK14-1 (3) = red D-SUB25 (5): IDC/FLK14-1 (5) = yellow D-SUB25 (6): IDC/FLK14-1 (7) = blue D-SUB25 (7): IDC/FLK14-2 (1) = black D-SUB25 (8): IDC/FLK14-2 (3) = red D-SUB25 (9): IDC/FLK14-2 (5) = yellow D-SUB25 (10): IDC/FLK14-2 (7) = blue D-SUB25 (11): IDC/FLK14-2 (9) = gray D-SUB25 (12): IDC/FLK14-2 (10) = white D-SUB25 (13): () = D-SUB25 (14): IDC/FLK14-1 (11) = white-black D-SUB25 (15): IDC/FLK14-1 (12) = white-brown D-SUB25 (16): IDC/FLK14-1 (2) = brown D-SUB25 (17): IDC/FLK14-1 (4) = orange D-SUB25 (18): IDC/FLK14-1 (6) = green D-SUB25 (19): IDC/FLK14-1 (8) = violet D-SUB25 (20): IDC/FLK14-2 (2) = brown D-SUB25 (21): IDC/FLK14-2 (4) = orange D-SUB25 (22): IDC/FLK14-2 (6) = green D-SUB25 (23): IDC/FLK14-2 (8) = violet D-SUB25 (24): IDC/FLK14-2 (11) = white-black D-SUB25 (25): IDC/FLK14-2 (12) = white-brown |
| Connection data | Connection 1 Connection in acc. with standard: IEC 60807-2 DINÃ41652 Connection method: D-SUB socket strip Screw thread: UNC 4-40 M2,5 Number of connections: 1 Number of positions: 25 Tightening torque: 0.2 Nm Insertion/withdrawal cycles: > 200 Pitch: 2.77 mm Connection 2 Connection in acc. with standard: based on IEC 60603-13 Connection method: IDC/FLK socket strip Number of connections: 2 Number of positions: 14 Insertion/withdrawal cycles: > 50 Pitch: 2.54 mm |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
