| Notes | General: Polyamide PA non-reinforced For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Product properties | Product type: Potential distributor Product family: VARIOFACE Professional Potential connections: Per potential(P1, P2) 2 power/24 distributor terminal blocks Insulation characteristics Overvoltage category: II Pollution degree: 2 |
| Electrical properties | Nominal voltage UN: 250 V AC/DC Max. current carrying capacity per branch: 15 A Max. total current of all branches: 30 A (per potential) |
| Input data | Potential connections: Per potential(P1, P2) 2 power/24 distributor terminal blocks |
| Connection data | Service Entrance Connection method: Push-in connection Stripping length: 15 mm Number of connections: 2 Conductor cross section rigid: 0.25 mm² ... 6 mm² Conductor cross section flexible: 0.25 mm² ... 4 mm² Conductor cross section AWG: 24 ... 10 Distribution Connection method: Push-in connection Stripping length: 8 mm Number of connections: 24 Number of positions: 2 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² Conductor cross section AWG: 26 ... 14 |

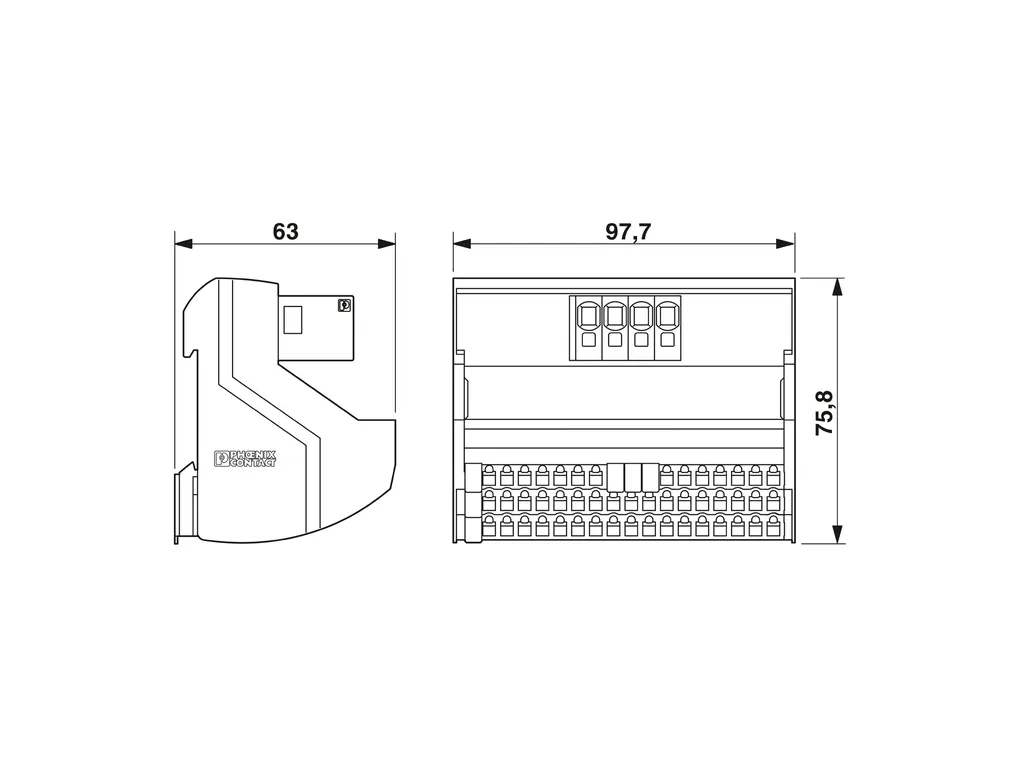

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/44f17a2cdbed5f409a005587813d9b5e/-S204x204-FJPG Width: 97.7 mm Height: 75.8 mm Depth: 63 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 50°C (NOTE: At maximum relative humidity < 90%.) Ambient temperature (storage/transport): -20°C ... 70°C (NOTE: At maximum relative humidity < 90%.) Altitude: < 2000 m Permissible humidity (operation): 90 % Permissible humidity (storage/transport): 90 % |
| Standards and regulations | Standards/regulations: IEC 60664 DINÃENÃ50178 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any |
