| Product properties | Product type: Interface module Product family: VARIOFACE Professional Number of positions: 50 Insulation characteristics Overvoltage category: II Pollution degree: 2 |
| Electrical properties | Nominal voltage UN: 24 VÃDC Max. current carrying capacity per branch: 1 A Rated surge voltage: 1.2 kV |
| Connection data | Field level Connection method: Push-in connection Stripping length: 8 mm Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² Conductor cross section AWG: 26 ... 14 Controller level Connection method: D-SUB pin strip Number of connections: 1 Number of positions: 50 |

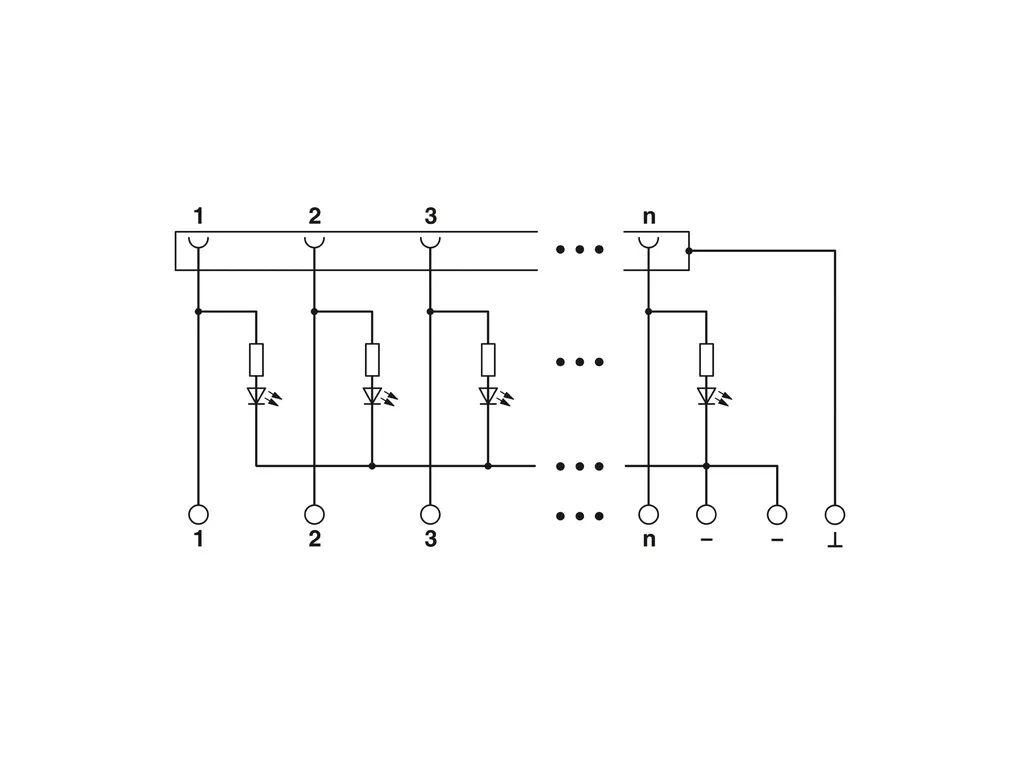

| Signaling | Status display: LED Status display present: Yes |
| Dimensions | Item dimensions Width: 97.7 mm Height: 75.8 mm Depth: 63 mm |
| Material specifications | Flammability rating according to UL 94: V0 Housing insulation material: Polyamide 6.6 green |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 45°C Ambient temperature (storage/transport): -20°C ... 70°C |
| Standards and regulations | Standards/regulations: IEC 60664 DINÃENÃ50178 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
