| Notes | General: FBS 2-6... plug-in bridge for the input side (A2) and FBS-2-8... plug-in bridge for the output side (11/21) |

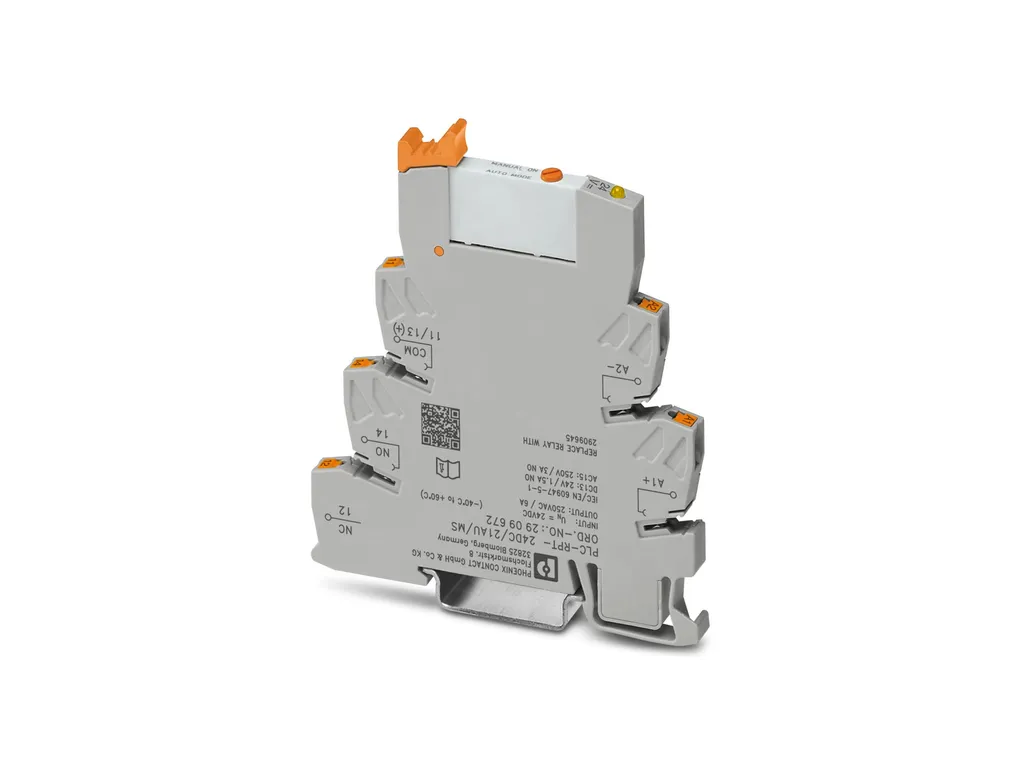

| Product properties | Product type: Relay Module Product family: RIFLINEÃcomplete Application: Universal Operating mode: 100% operating factor Mechanical service life: approx. 107 cycles Insulation characteristics Insulation: Safe isolation between input and output Basic insulation between the changeover contacts Insulation characteristicsââ¬Ã¢¹ Insulation: Safe isolation between input and output Basic insulation between the changeover contacts Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Service life electrical: see diagram Maximum power dissipation for nominal condition: 1.4 W Test voltage (Winding/contact): 2.5 kVrms (50ÃHz, 1Ãmin., winding/contact) Test voltage (Changeover contact/changeover contact): 2.5 kVrms (50ÃHz, 1Ãmin., changeover contact/changeover contact) Rated surge voltage: 6 kV (Input/output) 4 kV (between the changeover contacts) |

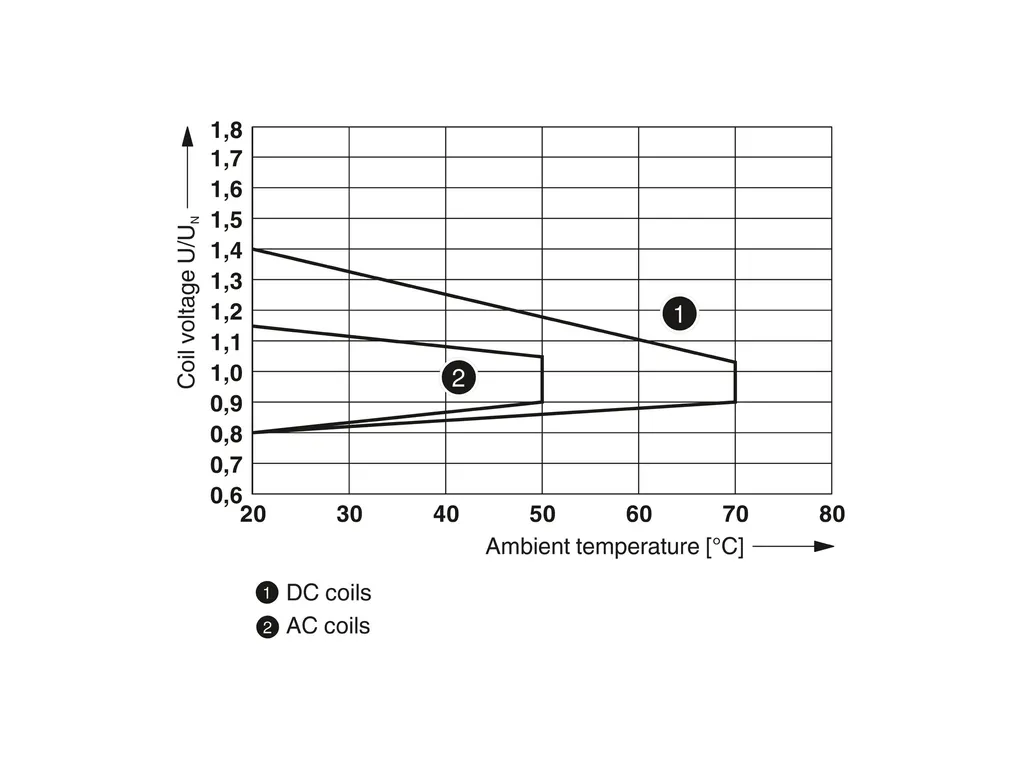

| Input data | Coil side Nominal input voltage UN: 230 VÃAC Input voltage range: 184 VÃAC ... 264.5 VÃAC (20ðC) Input voltage range in reference to UN: see diagram Mains frequency: 50/60 Hz Drive and function: monostable Drive (polarity): polarized Typical input current at UN: 6 mA Typical response time: 3 ms ... 12 ms Typical release time range: 3 ms ... 20 ms Coil voltage: 230 VÃAC Protective circuit: Varistor Operating voltage display: Yellow LED |
| Output data | Switching Contact switching type: 2 changeover contacts Type of switch contact: Single contact Contact material: AgNi, hard gold-plated Maximum switching voltage: 30 VÃAC 36 VÃDC Minimum switching voltage: 100 mV (10ÃmA) Limiting continuous current: 50 mA Maximum inrush current: 50 mA Min. switching current: 1 mA (24ÃV) Interrupting rating (ohmic load) max.: 1.2 W (at 24 V DC) Utilization category CB Scheme (IEC 60947-5-1): AC15, 1.5 A/240 V (N/O contact) AC15, 2 A/250 V (N/C contact) DC13, 2 A/24 V (N/C contact) DC13, 0.2 A/250 V (N/O contact) Switching: when the gold layer is destroyed Note: the following values are applicable if a gold layer is destroyed Contact material: AgNi Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 5 V (at 10 mA) Maximum inrush current: 12 A (20 ms, N/O contacts) Min. switching current: 10 mA (At 5 V) Interrupting rating (ohmic load) max.: 192 W (at 24 V DC) 96 W (at 48 V DC) 60 W (at 60 V DC) 44 W (at 110 V DC) 57 W (at 220 V DC) 2000 VA (for 250 V AC) Switching capacity: 2 A (at 24 V, DC13) 0.2 A (at 110 V, DC13) 0.2 A (at 250 V, DC13) 2 A (at 24 V, AC15) 2 A (at 120 V, AC15) 2 A (at 250 V, AC15) |
| Connection data | Connection method: Push-in connection Stripping length: 8 mm Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section flexible: 0.14 mm² ... 1.5 mm² 0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve) 0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) Conductor cross section AWG: 26 ... 16 (solid) 26 ... 16 (flexible) |
| Dimensions | Drill hole Diameter: 3.2 mm Width: 16 mm Height: 96 mm Depth: 75 mm |
| Material specifications | Flammability rating according to UL 94: V2 (Housing) |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Relay base): IP20 (Relay base) Degree of protection (Relay): RT III (Relay) Ambient temperature (operation): -40°C ... 50°C Ambient temperature (storage/transport): -40°C ... 85°C |
| Approvals | Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 |
| Standards and regulations | Standards/regulations: IEC 60947-5-1 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
