| Product properties | Product type: Relay Module Product family: RIFLINEÃcomplete Application: Universal Operating mode: 100% operating factor Mechanical service life: approx. 2x 107 cycles Insulation characteristics Insulation: safe isolation Insulation characteristicsââ¬Ã¢¹ Insulation: safe isolation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Service life electrical: see diagram Maximum power dissipation for nominal condition: 0.22 W Test voltage (Winding/contact): 4 kVrms (50ÃHz, 1Ãmin., winding/contact) Rated insulation voltage: 250 VÃAC Rated surge voltage: 6 kV |

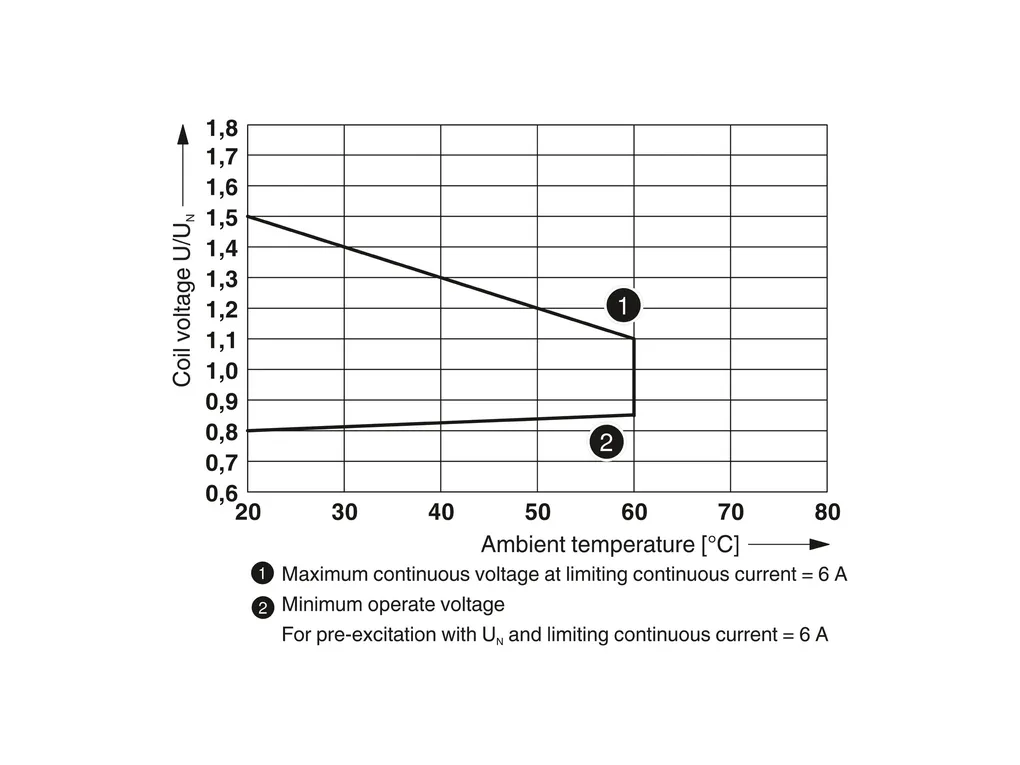

| Input data | Coil side Nominal input voltage UN: 24 VÃDC Input voltage range: 19.2 VÃDC ... 36 VÃDC (20ðC) Input voltage range in reference to UN: see diagram Drive and function: monostable Drive (polarity): polarized Typical input current at UN: 9 mA Typical response time: 5 ms Typical release time: 8 ms Coil voltage: 24 VÃDC Protective circuit: Freewheeling diode Operating voltage display: Yellow LED |
| Output data | Switching Contact switching type: 1Ãchangeover contact Type of switch contact: Single contact Contact material: AgSnO, hard gold-plated Maximum switching voltage: 30 VÃAC 36 VÃDC Minimum switching voltage: 100 mV (10ÃmA) Limiting continuous current: 50 mA Maximum inrush current: 50 mA Min. switching current: 1 mA (12ÃV) Interrupting rating (ohmic load) max.: 1.2 W (24ÃVÃDC) Utilization category CB Scheme (IEC 60947-5-1): AC15, 3 A/250 V (N/O contact) AC15, 1 A/250 V (N/C contact) DC13, 1.5 A/24 V (N/O contact) DC13, 0.2 A/110 V (N/O contact) DC13, 0.1 A/220 V (N/O contact) Switching: when the gold layer is destroyed Note: the following values are applicable if a gold layer is destroyed Contact material: AgSnO Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 5 V (at 100 mA) Limiting continuous current: 6 A Min. switching current: 10 mA (at 12 V) Interrupting rating (ohmic load) max.: 140 W (at 24 V DC) 20 W (at 48 V DC) 18 W (at 60 V DC) 23 W (at 110 V DC) 40 W (at 220 V DC) 1500 VA (for 250 V AC) Switching capacity: 2 A (at 24 V, DC13) 0.2 A (at 110 V, DC13) 0.1 A (at 220 V, DC13) 3 A (at 24 V, AC15) 3 A (at 120 V, AC15) 3 A (at 230 V, AC15) |
| Connection data | Connection method: Push-in connection Stripping length: 8 mm Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section flexible: 0.14 mm² ... 1.5 mm² 0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve) Conductor cross section AWG: 24 ... 16 |
| Dimensions | Width: 6.2 mm Height: 93 mm Depth: 78 mm |
| Material specifications | Flammability rating according to UL 94: V2 (Housing) |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Relay base): IP20 (Relay base) Degree of protection (Relay): RT III (Relay) Ambient temperature (operation): -40°C ... 60°C Ambient temperature (storage/transport): -40°C ... 85°C |
| Approvals | Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 |
| Standards and regulations | Standards/regulations: IEC 60947-5-1 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
