| Product properties | Product type: Interface module Product family: VARIOFACE No. of channels: 16 Operating mode: 100% operating factor Mechanical service life: 2x 107 cycles With components: yes Insulation characteristics Overvoltage category: II Pollution degree: 2 |
| Electrical properties | No. of channels: 16 Supported controller HONEYWELL Experion PKS C300/C-Series Suitable I/O card: TDOB01 (non-redundant) TDOB11 (redundant) TDOB51 (non-redundant) TDOB61 (redundant) |
| Input data | Nominal input voltage UN: 24 VÃDC Input voltage range in reference to UN: 0.8 ... 1.1 Input voltage range: 19.2 VÃDC ... 26.4 VÃDC Typical input current at UN: 7 mA Typical response time: 5 ms Typical release time: 15 ms Protective circuit: Freewheeling diode; Freewheeling diode |
| Output data | Switching Contact switching type: 1Ãchangeover contact Contact material: AgSnO Maximum switching voltage: 120 V AC/DC Minimum switching voltage: 12 V Limiting continuous current: 3 A (fuse limited) Min. switching current: 10 mA Interrupting rating (ohmic load) max.: 72 W (24ÃVÃDC) 20 W (48ÃVÃDC) 18 W (60ÃVÃDC) 23 W (110ÃVÃDC) 360 VA (120ÃVÃAC) Error detection (line break / short-circuit): no |
| Connection data | Controller level Connection method: D-SUB connector Number of connections: 1 Number of positions: 37 Field level Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Number of connections: 32 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 |
| Signaling | Status display present: Yes, if the fuse fails |

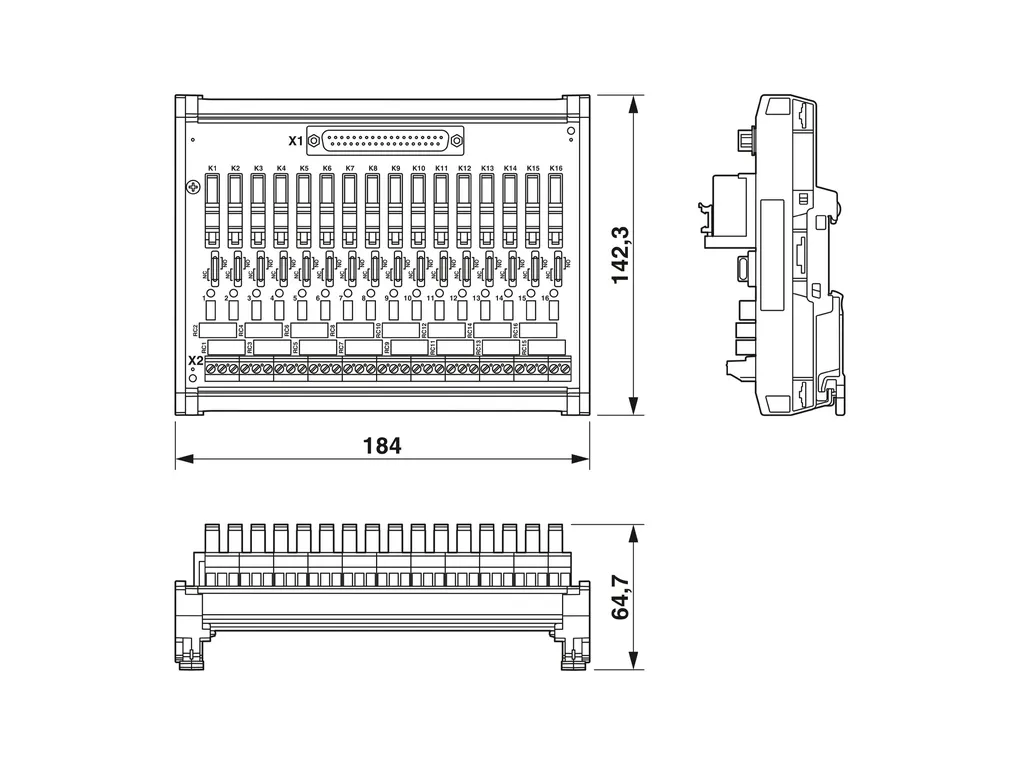

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4024f08e621df1478259dfdf7f7e8bfb/-S204x204-FJPG Width: 184 mm Height: 142.3 mm Depth: 64.7 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 75°C Altitude: < 2000 m Permissible humidity (operation): 90 % Permissible humidity (storage/transport): 90 % |
| Mounting | Mounting type: DIN rail mounting |
| Notes | General: Standard or halogen-free cables For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
