| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Connection data | Field level Connection method: COMBICON connectors Stripping length: 7 mm Screw thread: M2 Number of connections: 1 Number of positions: 5 Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section flexible: 0.14 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Controller level Connection method: COMBICON connectors Stripping length: 6 mm Number of connections: 1 Number of positions: 3 Conductor cross section rigid: 0.2 mm² ... 0.5 mm² Conductor cross section flexible: 0.14 mm² ... 0.5 mm² Conductor cross section AWG: 24 ... 20 |
| Dimensions | Length: 0.3 m |

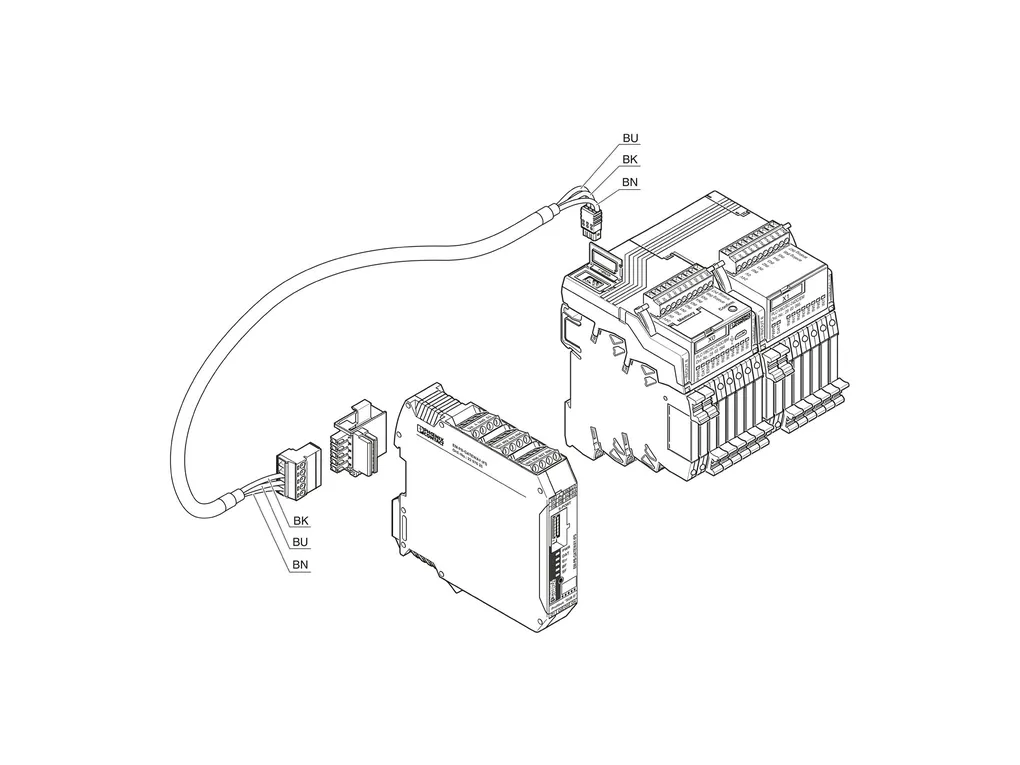

| Cable/line | Cable length: 0.3 m PVC grayÃ[500] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7170c6495847824c8ae4e6b55c93d153/-S204x204-FJPG Cable weight: 29 kg/km Number of positions: 3 Shielded: no Cable type: PVC grayÃ[500] Conductor type: Assembled shielded round cable Conductor structure signal line: 14x 0.15 mm AWG signal line: 24 Conductor cross section: 3x 0.25 mm² (Signal line) Wire diameter incl. insulation: 1.17 mm ñ0.05 mm External cable diameter: 4.2 mm ñ0.15Ãmm Outer sheath, material: PVC External sheath, color: gray RAL 7001 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, blue, black Thickness, insulation: ââ°¥ 0.23 mm (Core insulation) Thickness, outer sheath: ââ°¥ 0.76 mm Overall twist: 3 wires, twisted Max. conductor resistance: max. 79 é/km (at 20ðC) Insulation resistance: ââ°¥ 100 Mé*km (at 20ðC) Nominal voltage, cable: ââ°¥ 300 V Test voltage: ââ°¤ 3000 V Smallest bending radius, fixed installation: 13 mm Halogen-free: no Flame resistance: As per UL-Style 2464 Resistance to oil: in accordance with DIN EN 60811-2-1 Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation) |
| Approvals | UKCA Certificate: UKCA-compliant |
