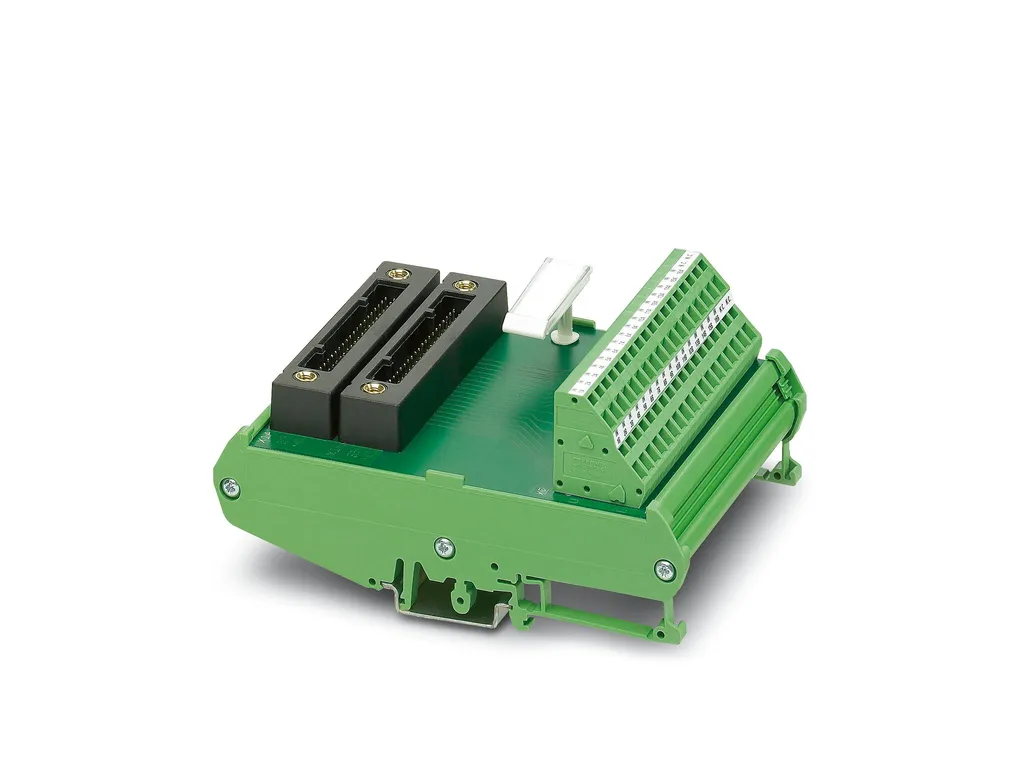

| Product properties | Product type: Interface module Operating mode: 100% operating factor Mechanical service life: 2x 107 cycles Insulation characteristics: Air clearances and creepage distances, input/output Overvoltage category: III Pollution degree: 2 Insulation characteristics: Air and creepage distances, output/output Insulation: Basic insulation Overvoltage category: II Pollution degree: 2 |
| Electrical properties | Air clearances and creepage distances, input/output Rated insulation voltage: 300 V Rated surge voltage: 6 kV (Reinforced insulation) Air and creepage distances, output/output Rated insulation voltage: 300 V Rated surge voltage: 2.5 kV Supported controller YOKOGAWA CENTUM VP Suitable I/O card: ADV551 ADV561 NFDV551 NFDV561 |
| Input data | Nominal input voltage UN: 24 VÃDC Input voltage range in reference to UN: 0.8 ... 1.2 Input voltage range: 19.2 VÃDC ... 28.8 VÃDC Typical input current at UN: 7 mA Typical response time: 5 ms Typical release time: 6 ms Protective circuit: Freewheeling diode; Freewheeling diode Status display/channel: green LED |
| Output data | Switching Contact switching type: 1 N/O contact Type of switch contact: Single contact Contact material: AgSnO Maximum switching voltage: 24 VÃDC Minimum switching voltage: 5 V (100 mA) Limiting continuous current: 1.5 A (32ðC) 1 A (45ðC) 0.5 A (50ðC) Max. total current of voltage supply: 10 A (50ðC) Min. switching current: 1 mA (24ÃV) Interrupting rating (ohmic load) max.: 48 W (24ÃVÃDC) |
| Connection data | Controller level Connection method: Yokogawa KS-compatible Number of connections: 2 Number of positions: 50 Field level Connection method: Screw connection Number of connections: 32 Number of positions: 2 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Supply Connection method: Screw connection Number of connections: 4 Number of positions: 2 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 |
| Signaling | Status display present: Yes |

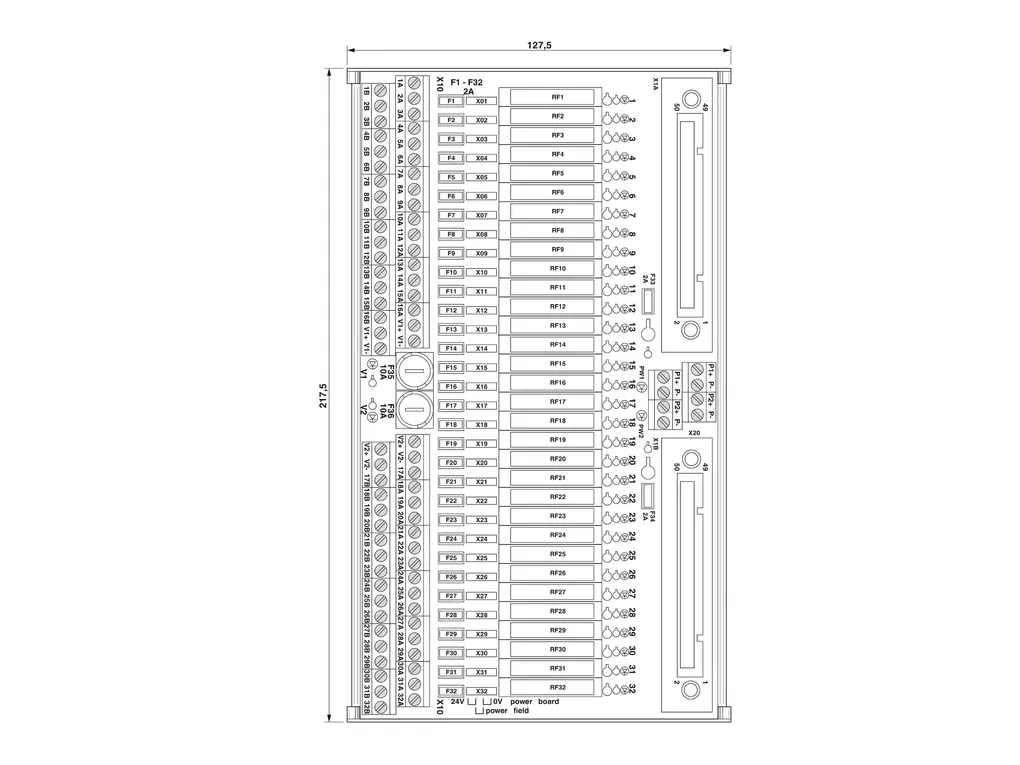

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f22b76dc1246b34282134f0c13ef7bc4/-S204x204-FJPG Width: 217.5 mm Height: 127.5 mm Depth: 60.5 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP00 Degree of protection (Installation location): ââ°¥ IP54 (Installation location) Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 80°C Permissible humidity (operation): 10 % ... 95 % (non-condensing) |
| Standards and regulations | Air clearances and creepage distances, input/output Standards/regulations: ENÃIEC 61010-2-201 Air and creepage distances, output/output Standards/regulations: ENÃIEC 61010-2-201 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
| Notes | General: Do not connect adjacent channels to SELV/PELV and FELV. No additional touch protection is required when using a SELV/PELV voltage (ââ°¤ 25ÃVÃAC or 60ÃVÃDC). At least one functional insulation against adjacent modules is complied with (in the support rail direction). If the application has stricter requirements for the insulation (basic insulation or reinforced insulation), they must be realized by applying suitable measures (e.Ãg. partition plates). Do not use for isolation For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
