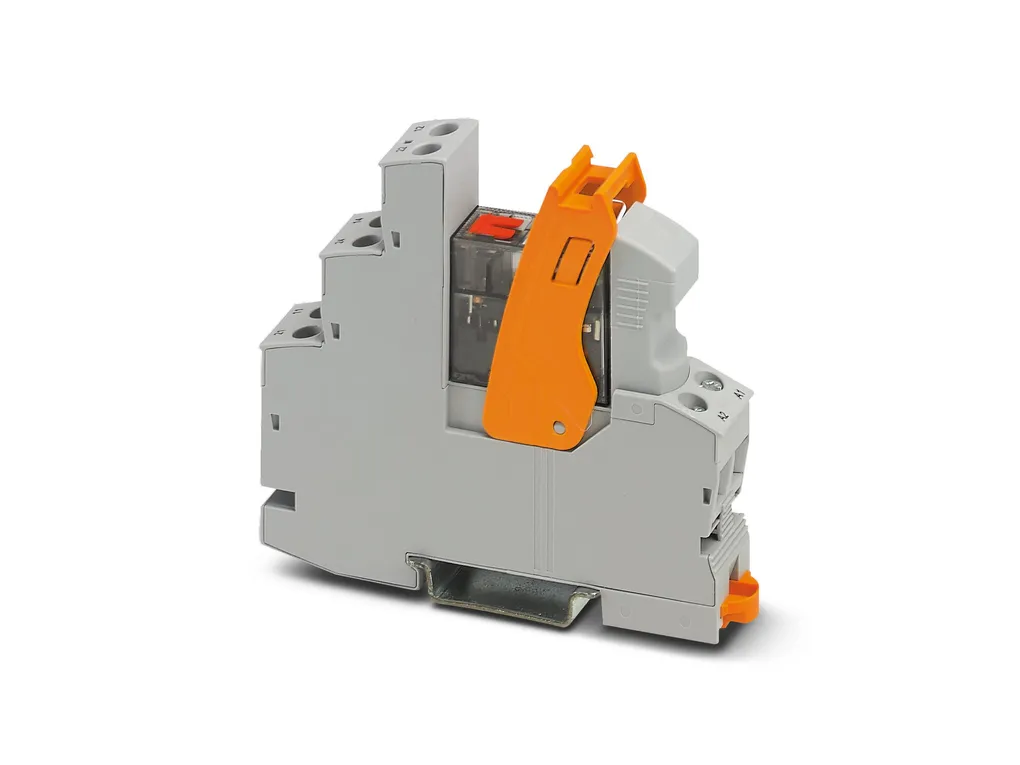

| Product properties | Product type: Relay Module Product family: PLC-INTERFACE Application: Palm switch Operating mode: 100% operating factor Mechanical service life: 5x 106 cycles Insulation characteristics Insulation: Safe isolation, reinforced insulation Insulation characteristics: Standards/regulations Insulation: Safe isolation, reinforced insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 0.54 W Test voltage (Winding/contact): 4 kVrms (50ÃHz, 1Ãmin., winding/contact) Test voltage (Changeover contact/changeover contact): 2.5 kVrms (50ÃHz, 1Ãmin., changeover contact/changeover contact) Standards/regulations Rated insulation voltage: 250 VÃAC Rated surge voltage: 6 kV |
| Input data | Coil side Nominal input voltage UN: 120 VÃAC 110 VÃDC Input voltage range: 96 VÃAC ... 168 VÃAC (20ðC) 93.5 VÃDC ... 154 VÃDC (20ðC) Drive and function: monostable Drive (polarity): polarized Typical input current at UN: 5 mA Typical response time: 6 ms (110ÃVÃDC) 3 ms ... 15 ms (120ÃVÃAC) Typical release time: 10 ms (110ÃVÃDC) Typical release time range: 3 ms ... 15 ms (120ÃVÃAC) Protective circuit: Bridge rectifier; Bridge rectifier Operating voltage display: Yellow LED |
| Output data | Switching Contact switching type: 2 changeover contacts Type of switch contact: Single contact Contact material: AgNi, hard gold-plated Maximum switching voltage: 30 VÃAC 36 VÃDC Minimum switching voltage: 12 V (1ÃmA) Limiting continuous current: 50 mA Maximum inrush current: 50 mA Min. switching current: 1 mA (12ÃV) Switching: when the gold layer is destroyed Note: the following values are applicable if a gold layer is destroyed Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 12 V (10ÃmA) Limiting continuous current: 6 A Maximum inrush current: 12 A (20Ãms) Min. switching current: 10 mA (12ÃV) Interrupting rating (ohmic load) max.: 192 W (24ÃVÃDC) 62 W (48ÃVÃDC) 42 W (60ÃVÃDC) 55 W (110ÃVÃDC) 66 W (220ÃVÃDC) 2000 VA (250ÃVÃAC) Switching capacity: 1 A (24ÃV, DC13) 1.5 A (230 V, AC15) |
| Connection data | Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14 Tightening torque: 0.6 Nm ... 0.8 Nm |
| Dimensions | Width: 14 mm Height: 80 mm Depth: 104 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Housing) |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Relay): RT II (Relay) Degree of protection (Relay base): IP20 (Relay base) Degree of protection (Installation location): ââ°¥ IP54 (Installation location) Ambient temperature (operation): -20°C ... 55°C Ambient temperature (storage/transport): -20°C ... 85°C Altitude: ââ°¤ 2000 m |
| Approvals | CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant UL, USA Identification: ULÃ508 ULÃ508 Recognized UL, USA/Canada Identification: ULÃ508 ULÃ508 Recognized Shipbuilding approval Certificate: TAE0000196 Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 DNV GL data Temperature: D Humidity: A Vibration: B/C EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board |
| EMC data | Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive |
| Standards and regulations | Standards/regulations Standards/regulations: ENÃ50178 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
