| Product properties | Product type: System cable |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Degree of protection (Installation location): ââ°¥ IP54 (Installation location) Ambient temperature (operation): -40°C ... 70°C (fixed installation) -10°C ... 70°C (flexible installation) Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 2000 m |
| Electrical properties | Operating voltage (AC): ââ°¤ 30 VÃAC Operating voltage (DC): ââ°¤ 60 VÃDC Nominal operating mode: 100% operating factor Current (Per path): ââ°¤ 2 A (Uncoiled, see derating) |

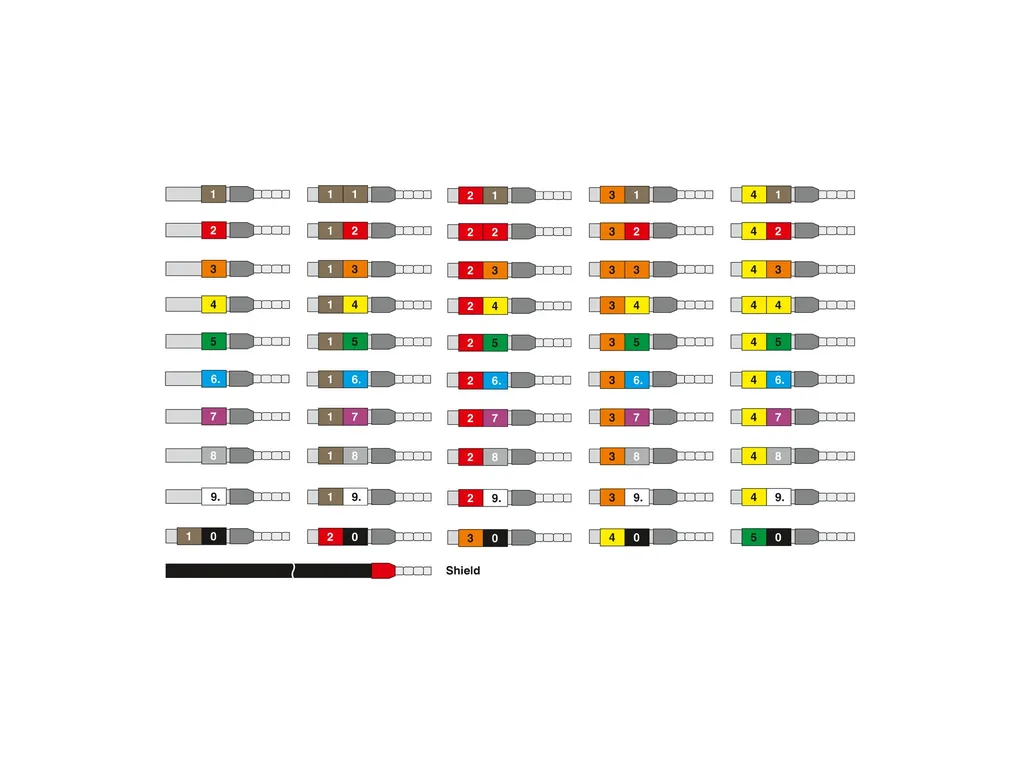

| Cable/line | Cable length: 1 m 50X0.25Ã[PVC] Number of positions: 50 Shielded: yes Cable type: 50X0.25Ã[PVC] Conductor type: Assembled shielded round cable Conductor structure signal line: 14x 0.15 mm AWG signal line: 24 Conductor cross section: 50x 0.25 mm² Wire diameter incl. insulation: 1.2 mm ñ0.05 mm External cable diameter: 12.4 mm ñ0.5 mm Outer sheath, material: Semi-rigid PVC External sheath, color: gray Conductor material: Bare Cu litz wires Cable resistance: ââ°¤ 80 é/km (at 20ðC) Insulation resistance: ââ°¥ 20 Mé*km (at 20ðC) Smallest bending radius, fixed installation: 106 mm Smallest bending radius, movable installation: 200 mm Max. bending cycles: (at a radius of ââ°¥ 15x outside diameter) Halogen-free: no Flame resistance: IEC 60332-1-2 (raw cable) VDEÃ0842, PartÃ332-1-2 (raw cable) IEC 60332-3-22 (raw cable) ULÃVW-1 CSA FT-1 Resistance to oil: can withstand occasional splashes (raw cable) color code D-SUB50 (1): () = white D-SUB50 (2): () = brown D-SUB50 (3): () = green D-SUB50 (4): () = yellow D-SUB50 (5): () = gray D-SUB50 (6): () = pink D-SUB50 (7): () = blue D-SUB50 (8): () = red D-SUB50 (9): () = black D-SUB50 (10): () = violet D-SUB50 (11): () = gray-pink D-SUB50 (12): () = red-blue D-SUB50 (13): () = white-green D-SUB50 (14): () = brown-green D-SUB50 (15): () = white-yellow D-SUB50 (16): () = yellow-brown D-SUB50 (17): () = white-gray D-SUB50 (18): () = gray-brown D-SUB50 (19): () = white-pink D-SUB50 (20): () = pink-brown D-SUB50 (21): () = white-blue D-SUB50 (22): () = brown-blue D-SUB50 (23): () = white-red D-SUB50 (24): () = brown-red D-SUB50 (25): () = white-black D-SUB50 (26): () = brown-black D-SUB50 (27): () = gray-green D-SUB50 (28): () = yellow-gray D-SUB50 (29): () = pink-green D-SUB50 (30): () = yellow-pink D-SUB50 (31): () = green-blue D-SUB50 (32): () = yellow-blue D-SUB50 (33): () = green-red D-SUB50 (34): () = yellow-red D-SUB50 (35): () = green-black D-SUB50 (36): () = yellow-black D-SUB50 (37): () = gray-blue D-SUB50 (38): () = pink-blue D-SUB50 (39): () = gray-red D-SUB50 (40): () = pink-red D-SUB50 (41): () = gray-black D-SUB50 (42): () = pink-black D-SUB50 (43): () = blue-black D-SUB50 (44): () = red-black D-SUB50 (45): () = white-brown D-SUB50 (46): () = yellow-green D-SUB50 (47): () = gray-pink D-SUB50 (48): () = blue-red D-SUB50 (49): () = white-green D-SUB50 (50): () = green-brown |
| Connection data | Connection 1 Connection method: Single wires Stripping length (Sheath): ïâ» 150 mm Number of positions: 50 Note: The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end. Connection 2 Connection in acc. with standard: IEC 60807-2 DINÃ41652 Connection method: D-SUB socket strip Screw thread: UNC 4-40 Number of connections: 1 Number of positions: 50 Tightening torque: 0.2 Nm Insertion/withdrawal cycles: > 200 Pitch: 2.77 mm |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
