| Notes | Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area |
| Product properties | Product type: Relay Module Operating mode: 100% operating factor Mechanical service life: approx. 2x 107 cycles Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 0.5 W Test voltage (Winding/contact): 2.5 kV AC (50ÃHz, 1Ãmin., winding/contact) |

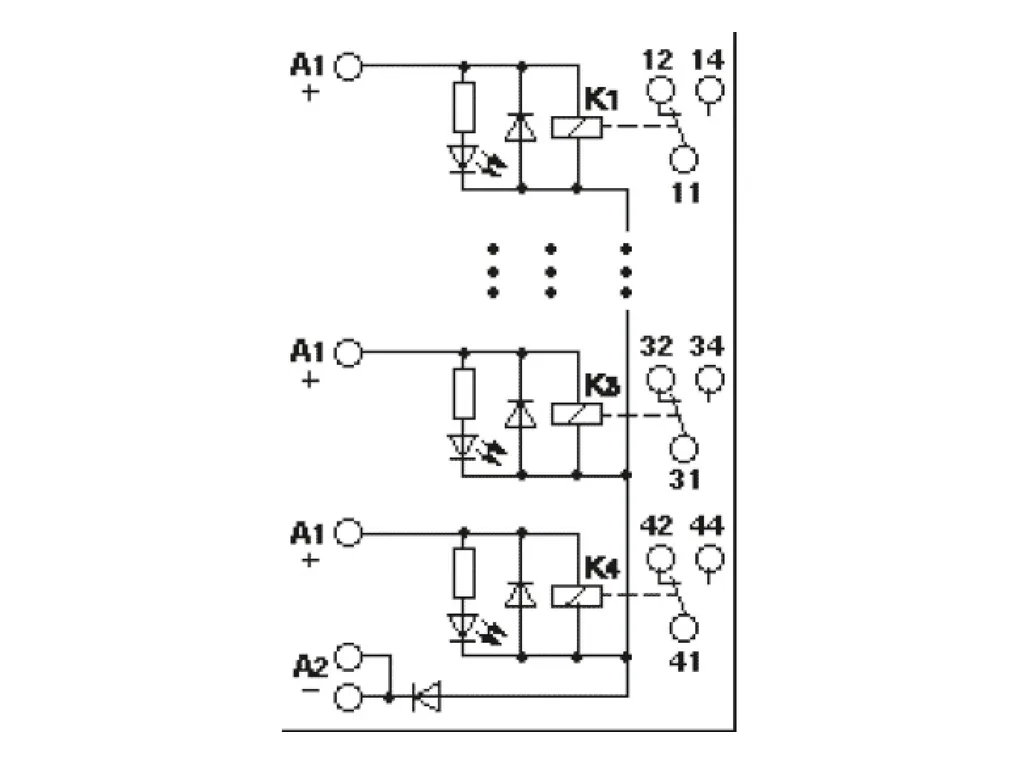

| Input data | Coil side Nominal input voltage UN: 24 VÃDC Input voltage range: 19.2 VÃDC ... 26.4 VÃDC (20ðC) Drive and function: monostable Drive (polarity): polarized Typical input current at UN: 21 mA Typical response time: 7 ms Typical release time: 11 ms Protective circuit: Damping diode, polarity protection; Damping diode, polarity protection diode Operating voltage display: yes |
| Output data | Switching Contact switching type: 1Ãchangeover contact Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 250 V AC/DC Limiting continuous current: 6 A Maximum inrush current: 8 A Interrupting rating (ohmic load) max.: 95 W (at 24 V DC) 50 W (at 48 V DC) 45 W (at 60 V DC) 35 W (at 110 V DC) 55 W (at 220 V DC) 1500 VA (for 250 V AC) |
| Dimensions | Width: 45 mm Height: 60 mm Depth: 79 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 55°C |
| Standards and regulations | Standards/regulations: IEC 60664 IEC 60664A DINÃVDEÃ0110 DINÃVDEÃ0109-11, draft DINÃENÃ50178/VDEÃ0160 IEC 60255/DIN VDE 0435 (in relevant parts) |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
