2946803 PHOENIX CONTACT -

EMG 17-OV- 24DC/ 24DC/2 - Solid-state relay module

Power solid-state relay, with LED and protective circuit in input and output circuits, input: 24 V DC, output: short-circuit-proof, 10 - 30 V DC/max. 2 A

Product Code: 2946803 copia - copy

Partner cod.: 2946803 copia - copy

PHOENIX CONTACT

Notes	Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area
Product properties	Product type: Solid-state relay module Application: Output function Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristicsÃ¢Ã¢¬Ã¢¹ Insulation: Basic insulation Overvoltage category: III Pollution degree: 2
Electrical properties	Test voltage (Input/output): 2.5 kV AC (Input/output)
Input data	Nominal input voltage U_N: 24 VÃDC Input voltage range in reference to U_N: 0.8 ... 1.2 Input voltage range: 19.2 VÃDC ... 28.8 VÃDC Switching threshold "0" signal in reference to U_N: Ã¢Ã¢°¤ 0.4 Switching threshold "1" signal in reference to U_N: Ã¢Ã¢°¥ 0.8 Typical input current at U_N: 3.5 mA Typical response time: 120 Ãµs Typical turn-off time: 400 Ãµs Status display: Yellow LED Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection; Varistor Transmission frequency: 1000 Hz

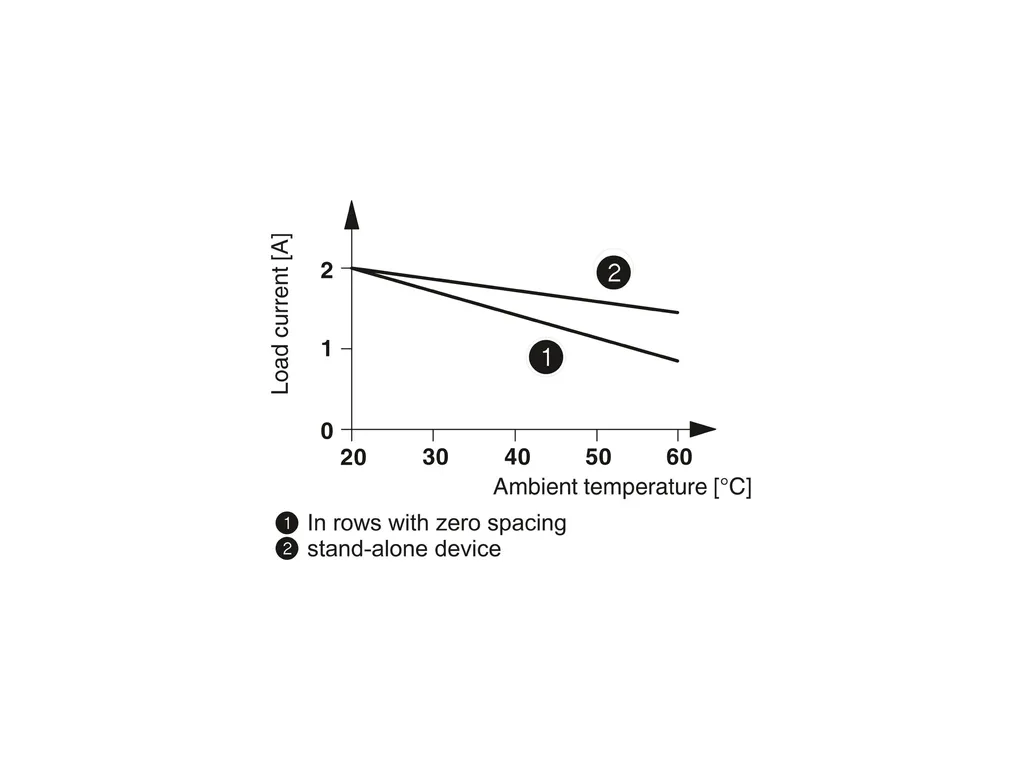

Output data	Contact switching type: 1 N/O contact Design of digital output: electronic Output nominal voltage: 24 VÃDC Output voltage range: 10 VÃDC ... 30 VÃDC Limiting continuous current: 2 A (see derating curve) Leakage current: 150 ÃµA Peak offstate voltage: 33 VÃDC (Collector-emitter reverse voltage) Current limitation at short-circuits: > 2 A (short-circuit-proof) Voltage drop at max. limiting continuous current: Ã¢Ã¢°¤ 0.3 V Output circuit: 3-conductor, ground-referenced Error indication: Red LED Protective circuit: Reverse polarity protection; Polarity protection diode Free running; Freewheeling diode Surge protection; Suppressor diode
Connection data	Input side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Output side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12
Dimensions	Width: 17.5 mm Height: 75 mm Depth: 102 mm
Material specifications	Flammability rating according to UL 94: V0
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -20°C ... 70°C
Standards and regulations	Standards/regulations: IEC 60664 ENÃ50178
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
