2961749 PHOENIX CONTACT -

Notes	General: The housing is open on one side. The appropriate cover is D-DEK 1,5 GN (2716949). Use of EB 80-DIK... bridges in the DEK terminal blocks: Absorption of humidity from the ambient air as well as an unfavorable tolerance between a larger number of DEK terminal blocks and the EB 80-DIK... bridge may cause (minor) expansion of the DEK housing. When the EB 80-DIK... bridges are used, therefore, it is recommended that these be disconnected after about 10 to 12 DEK terminal blocks and a wire bridge to the next DEK terminal block be inserted in their place.
Product properties	Product type: Solid-state relay module Product family: DEK Application: Output function Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Standards/regulations Insulation: Basic insulation Overvoltage category: III Pollution degree: 2
Electrical properties	Test voltage (Input/output): 2.5 kV AC (Input/output)

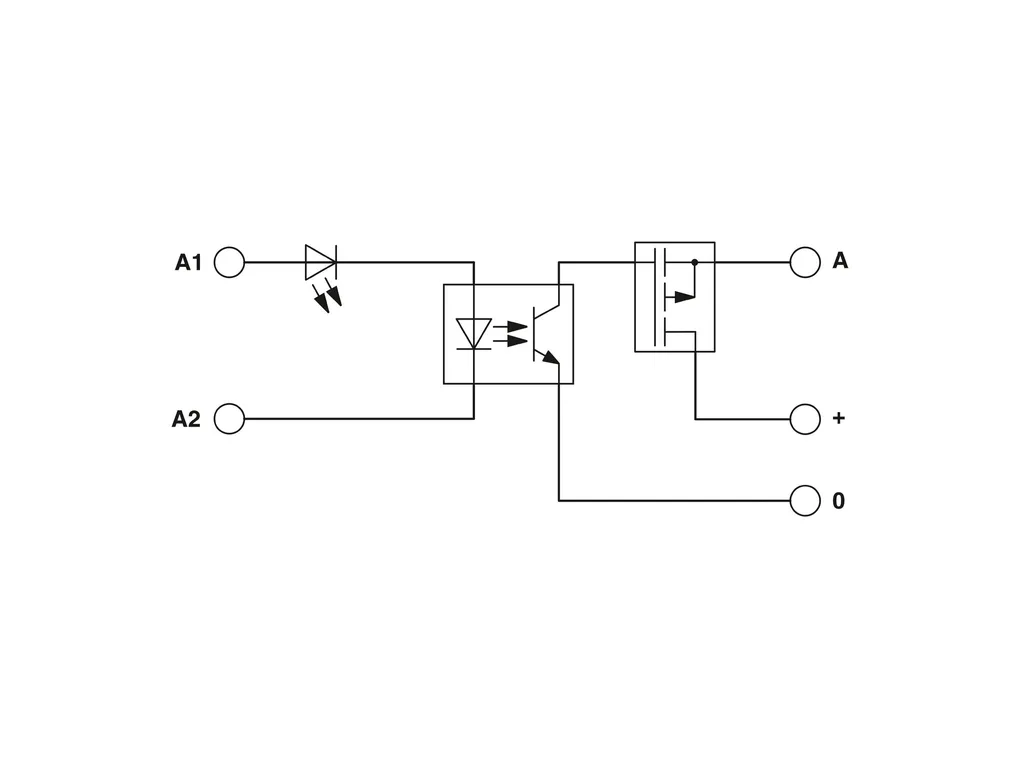

Input data	Nominal input voltage U_N: 12 VÃDC Input voltage range in reference to U_N: 0.8 ... 1.2 Input voltage range: 9.6 VÃDC ... 14.4 VÃDC Switching threshold "0" signal in reference to U_N: Ã¢Ã¢°¤ 0.4 Switching threshold "1" signal in reference to U_N: Ã¢Ã¢°¥ 0.8 Typical input current at U_N: 4.7 mA Typical response time: 250 Ãµs Typical turn-off time: 800 Ãµs Operating voltage display: Yellow LED Protective circuit: Reverse polarity protection Surge protection Transmission frequency: 100 Hz
Output data	Contact switching type: 1 N/O contact Design of digital output: electronic Output voltage range: 5 VÃDC ... 30 VÃDC Limiting continuous current: 10 A (see derating curve) Surge current: 100 A (tÃ=Ã20Ãms) Voltage drop at max. limiting continuous current: < 50 mV Output circuit: 3-conductor, ground-referenced Protective circuit: Reverse polarity protection Surge protection
Connection data	Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 14 Tightening torque: 0.5 Nm
Dimensions	Width: 6.2 mm Height: 80 mm Depth: 56 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -20°C ... 70°C
Standards and regulations	Standards/regulations Standards/regulations: IEC 60947-5-1
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
