2964843 PHOENIX CONTACT -

EMG 25-REL/KSR-230/2X21AU/SO46 - Relay Module

Plug-in relay interfaces for protection against interference on the control side, with soldered-in miniature switching relay, contacts (Au): small loads, 2 changeover contacts, input voltage 230 V AC

Product Code: 2964843 copia - copy

Partner cod.: 2964843 copia - copy

PHOENIX CONTACT

Notes	Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area
Product properties	Product type: Relay Module Product family: EMG Application: Filter to prevent interference Mechanical service life: approx. 2x 10⁷ cycles Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 4.14 W Test voltage (Winding/contact): 2.5 kV AC (50ÃHz, 1Ãmin., winding/contact)

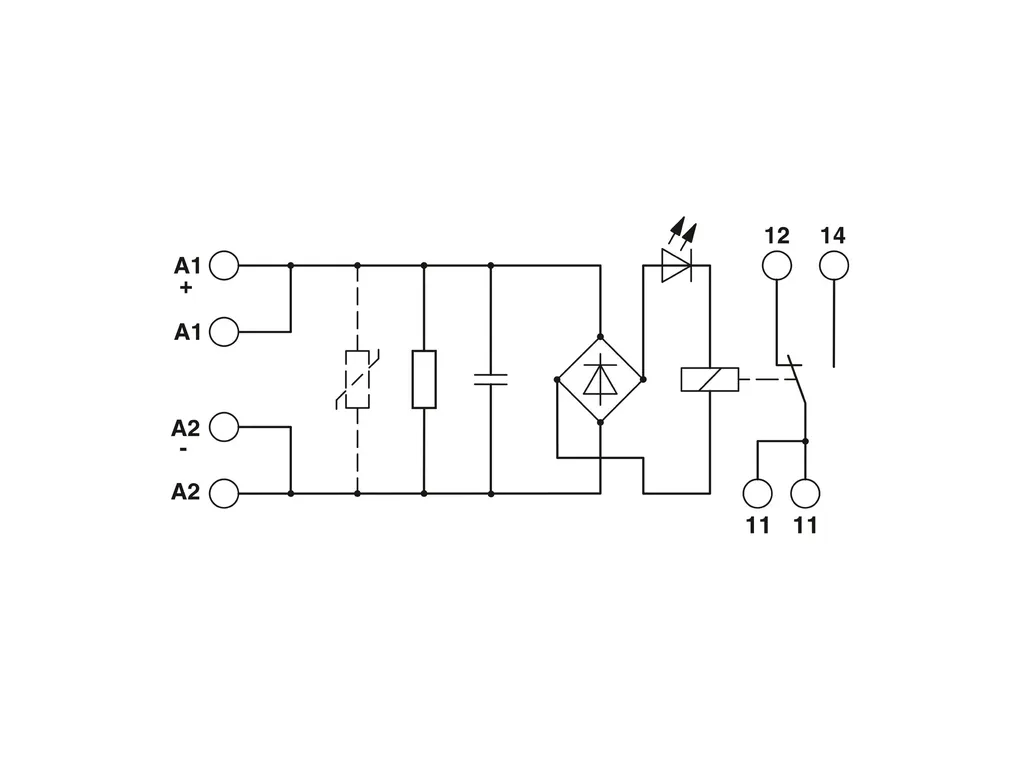

Input data	Coil side Nominal input voltage U_N: 230 V AC/DC Input voltage range: 207 V AC/DC ... 253 V AC/DC (20Ã°C) Drive and function: monostable Drive (polarity): polarized Typical input current at U_N: 18 mA Typical response time: 10 ms Typical release time: 8 ms Protective circuit: Bridge rectifier; Bridge rectifier Surge protection; Varistor RC element; RC element Operating voltage display: Yellow LED
Output data	Switching Contact switching type: 2 changeover contacts Type of switch contact: Single contact Contact material: Ag, gold-flashed Maximum switching voltage: 24 V AC/DC Limiting continuous current: 0.5 A Maximum inrush current: 0.2 A Interrupting rating (ohmic load) max.: 5 W Switching: when the gold layer is destroyed Note: the following values are applicable if a gold layer is destroyed Maximum switching voltage: 250 V AC/DC Limiting continuous current: 5 A
Connection data	Coil side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Contact side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12
Dimensions	Width: 25 mm Height: 75 mm Depth: 62.5 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -20°C ... 40°C Ambient temperature (storage/transport): -20°C ... 70°C
Standards and regulations	Standards/regulations: IEC 60664 IEC 60664A DINÃVDEÃ0110 DINÃVDEÃ0109-11, draft IEC 60255/DIN VDE 0435 (in relevant parts)
Mounting	Mounting type: DIN rail mounting Mounting position: any
