| Product properties | Product type: Interface module Product family: VARIOFACE No. of channels: 16 Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2 |
| Electrical properties | No. of channels: 16 ((with analog variable)) Operating voltage (AC): ââ°¤ 30 VÃAC Operating voltage (DC): ââ°¤ 60 VÃDC Current (per branch): ââ°¤ 1 A Air clearances and creepage distances Rated insulation voltage: 63 V Rated surge voltage: 0.6 kV (1.2/50 üs) Supported controller GE-FANUC 90-30 Suitable I/O card: IC693 MDL732 IC693 MDL733 IC693 MDL740 IC693 MDL741 IC693 MDL742 IC693 ALG220 IC693 ALG221 IC693 ALG222 IC693 ALG223 IC693 ALG390 IC693 ALG391 IC693 ALG392 IC693 ALG442 Supported controller SIEMENS S7-300 / ET 200 M Suitable I/O card: CPU 312C CPU 313C-2DP CPU 314C-2PtP 6ES7321-1BH50-0AA0 6ES7321-7BH01-0AB0 6ES7321-1BH02-0AA0 6ES7321-1BL00-0AA0 6ES7322-1BH01-0AA0 6ES7322-8BF00-0AB0 6ES7322-1BL00-0AA0 6ES7323-1BH01-0AA0 6ES7323-1BL00-0AA0 6ES7331-7KF02-0AB0 6ES7331-7KB02-0AB0 6ES7331-7NF00-0AB0 6ES7331-7PF01-0AB0 6ES7331-7PF11-0AB0 6ES7332-5HD01-0AB0 6ES7332-5HB01-0AB0 6ES7332-7ND02-0AB0 6ES7334-0CE01-0AA0 6ES7334-0KE00-0AB0 6ES7335-7HG01-0AB0 6ES7335-7HG01-0AB0 6ES7338-4BC01-0AB0 6ES7350-1AH03-0AE0 6ES7350-2AH01-0AE0 6ES7351-1AH01-0AE0 6ES7352-1AH02-0AE0 6ES7353-1AH01-0AE0 6ES7354-1AH01-0AE0 6ES7355-0VH10-0AE0 6ES7355-1VH10-0AE0 6ES7357-4AH01-0AE0 6ES7321-7BH01-0AB0 6ES7331-7HF01-0AB0 6ES7321-1BH10-0AA0 6ES7322-1BH10-0AA0 CPU 313C CPU 313C-2PtP |

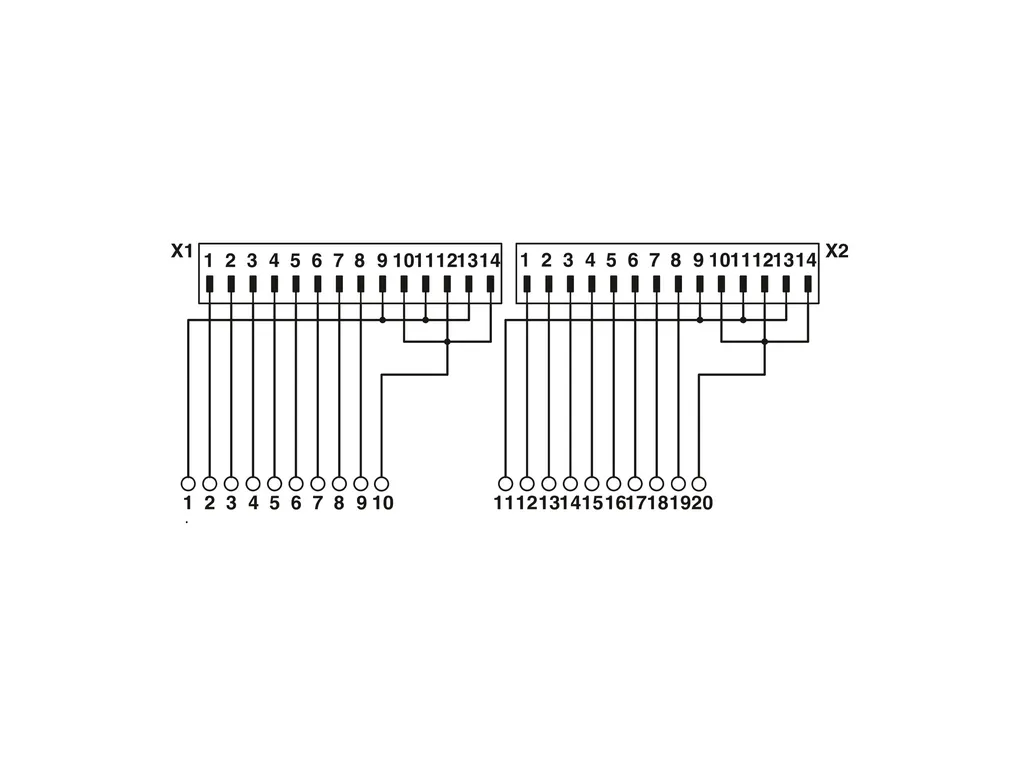

| Connection data | ConnectionÃ1 (control level) Connection in acc. with standard: IEC 60603-13 Connection method: IDC/FLK pin strip Number of connections: 2 Number of positions: 14 Insertion/withdrawal cycles: > 50 Pitch: 2.54 mm ConnectionÃ2 (field level) Connection method: Screw connection Stripping length: 6 mm Screw thread: M3 Number of positions: 20 Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section flexible: 0.14 mm² ... 1.5 mm² Conductor cross section AWG: 26 ... 16 |
| Signaling | Status display present: No |
| Dimensions | Item dimensions Width: 96.8 mm Height: 45 mm Depth: 50.1 mm |
| Material specifications | Housing insulation material: PVC |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Module): IP00 Degree of protection (Installation location): ââ°¥ IP54 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C Altitude: ââ°¤ 2000 m |
| Approvals | UKCA Certificate: UKCA-compliant |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: ENÃIEC 60664-1 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
