2970196 PHOENIX CONTACT -

UMK-32 MDSTB/MKKDS3/R - Interface module

VARIOFACE module, with screw connection and COMBICON connector, coded, for mounting on NS 35/7.5 or NS 32, no. of positions 32

Product Code: 2970196 copia - copy

Partner cod.: 2970196 copia - copy

PHOENIX CONTACT

Product properties	Product type: Interface module Product family: VARIOFACE Number of positions: 32 Insulation characteristics Insulation: Functional insulation Insulation characteristicsÃ¢Ã¢¬Ã¢¹ Insulation: Functional insulation Overvoltage category: II Pollution degree: 2
Electrical properties	Nominal voltage U_N: 250 V AC/DC Max. current carrying capacity per branch: 3 A Rated insulation voltage: 300 V Rated surge voltage: 2.5 kV

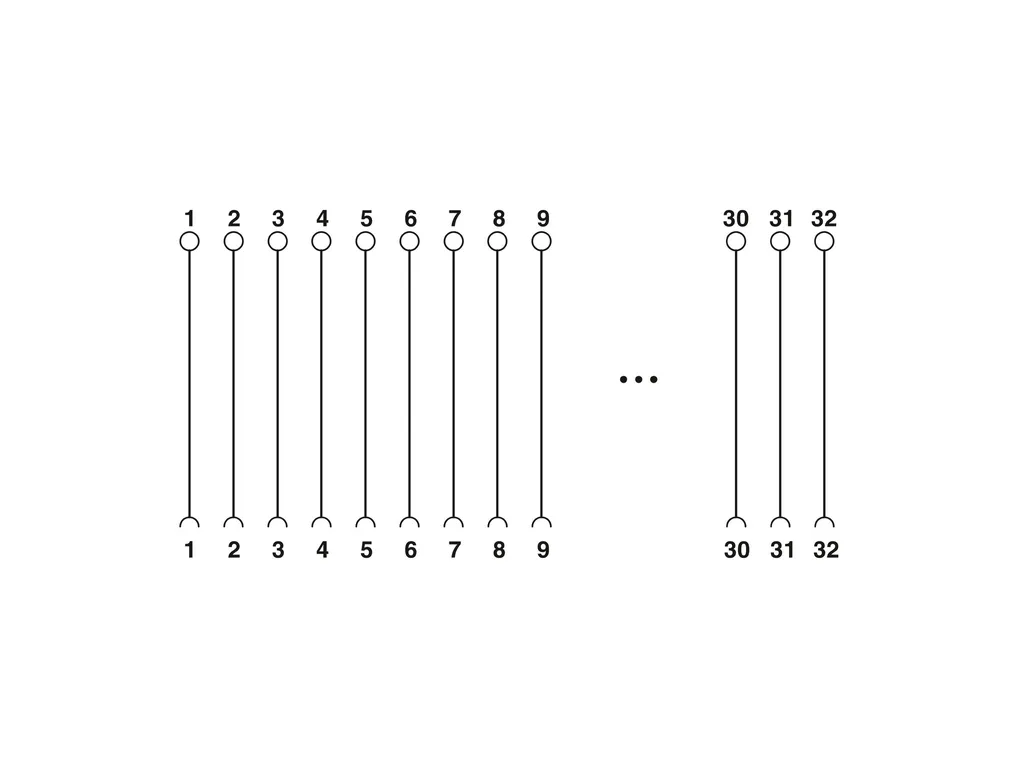

Connection data	PCB connection Connection in acc. with standard: IEC / EN Connection method: Screw connection Stripping length: 7 mm Screw thread: M3 Number of connections: 1 Number of positions: 32 Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 14 PCB connectionÃ¢Ã¢¬Ã¢¹ Connection in acc. with standard: IEC / EN Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Number of connections: 1 Number of positions: 32 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12
Signaling	Status display present: No
Dimensions	Item dimensions Width: 112.4 mm Height: 77 mm Depth: 57.5 mm
Material specifications	Housing insulation material: Polyamide PA non-reinforced
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C
Standards and regulations	Standards/regulations: ENÃ60664-1
Mounting	Mounting type: DIN rail mounting Mounting position: any
Notes	General: The necessary requirements for insulation (basic insulation or reinforced insulation) from adjacent modules (in DIN-rail direction) must be realized by applying suitable measures (e.Ãg., partition plates). Ensure that the supply voltage of the device has a common reference potential. For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
