| Product properties | Product type: Interface module Product family: VARIOFACE Number of positions: 56 Operating mode: 100% operating factor Insulation characteristics Insulation: Functional insulation Insulation characteristics: Air clearances and creepage distances Insulation: Functional insulation Overvoltage category: II Pollution degree: 2 |
| Electrical properties | Operating voltage (AC): ââ°¤ 30 VÃAC Operating voltage (DC): ââ°¤ 60 VÃDC Current (per branch): ââ°¤ 1.5 A Current (Total current): ââ°¤ 84 A Air clearances and creepage distances Rated insulation voltage: 85 V Rated surge voltage: 0.8 kV (1.2/50 üs) |
| Connection data | ConnectionÃ1 (control level) Connection method: EDACÃ/ÃELCO pin strip Coding: 4-4 Number of connections: 1 Number of positions: 56 Note: ELCO pin strip type 8016/EDAC pin strip type 516, right Pitch: 3.81 mm ConnectionÃ2 (field level) Connection method: Screw connection Stripping length: 9 mm Screw thread: M2,5 Number of positions: 56 Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 14 |
| Signaling | Status display present: No |

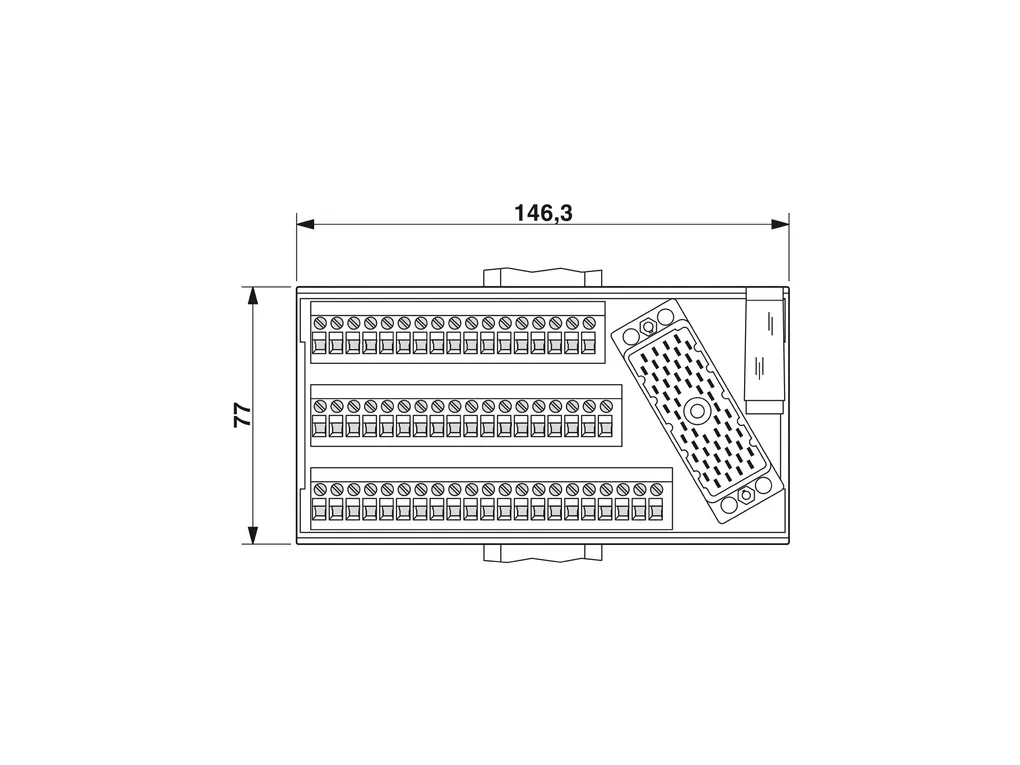

| Dimensions | Item dimensions Width: 146.05 mm Height: 77.4606 mm Depth: 51.16 mm |
| Material specifications | Housing insulation material: Polyamide PA non-reinforced |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Module): IP00 Degree of protection (Installation location): ââ°¥ IP54 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C Altitude: ââ°¤ 2000 m |
| Approvals | UKCA Certificate: UKCA-compliant |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: ENÃIEC 60664-1 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
