2982171 PHOENIX CONTACT -

OPT-24DC/230AC/ 2 - Miniature solid-state relay

Plug-in miniature solid-state relay, power solid-state relay, 1 N/O contact, input: 24 V DC, output: 24 - 253 V AC/2 A

Product Code: 2982171 copia - copy

Partner cod.: 2982171 copia - copy

PHOENIX CONTACT

Product properties	Product type: Single solid-state relay Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Standards/regulations Insulation: Basic insulation Overvoltage category: III Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 0.17 W Test voltage (Input/output): 2.5 kV (50ÃHz, 1Ãmin., input/output) Standards/regulations Rated insulation voltage: 250 VÃAC
Input data	Nominal input voltage U_N: 24 VÃDC Input voltage range in reference to U_N: 0.8 ... 1.2 Input voltage range: 19.2 VÃDC ... 28.8 VÃDC Switching threshold "0" signal, voltage: < 8.4 VÃDC Switching threshold "1" signal voltage: > 18 VÃDC Typical input current at U_N: 7 mA Typical response time: 10 ms Typical turn-off time: 10 ms Protective circuit: Reverse polarity protection; Polarity protection diode Transmission frequency: 10 Hz
Output data	Contact switching type: 1 N/O contact Design of digital output: electronic Output nominal voltage: 230 VÃAC Output voltage range: 24 VÃAC ... 253 VÃAC Limiting continuous current: 2 A (see derating curve) Maximum inrush current: 30 A (10 ms) Min. load current: 25 mA Leakage current: typ. 1 mA Surge current: 30 A (10 ms) Max. load value: 4 A²s (tp = 10Ãms, at 25Ã°C) Voltage drop at max. limiting continuous current: Ã¢Ã¢°¤ 1 V Output circuit: 2-conductor floating, zero voltage switch Protective circuit: Surge protection; RC element

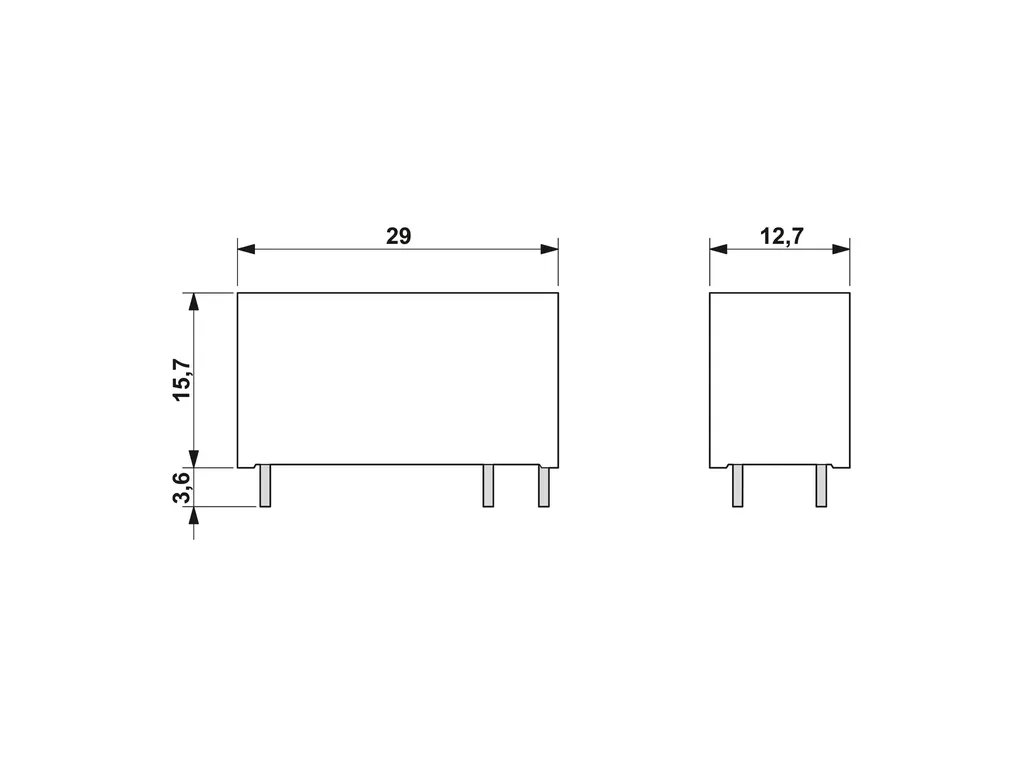

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/60fd1c85eee35444a4ff80d7039bb135/-S204x204-FJPG Width: 12.7 mm Height: 29 mm Depth: 15.7 mm
Material specifications	Flammability rating according to UL 94: V0 (Housing)
Environmental and real-life conditions	Ambient conditions Degree of protection: RT III Ambient temperature (operation): -25°C ... 60°C Ambient temperature (storage/transport): -25°C ... 70°C
Approvals	Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60
Standards and regulations	Standards/regulations Standards/regulations: IEC 60664 ENÃ50178
Mounting	Assembly instructions: See derating curve Mounting position: any
