| Notes | General: The PLC-ATP partition plate must be installed for voltages greater than 250ÃV (L1, L2, L3) between identical terminal blocks on adjacent modules. The PLC-ATP separating plate should be installed for safe isolation between adjacent modules Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch. The system installer must ensure the touch protection of the product (at voltages > 25 V AC/60 V DC). The product is a built-in device without protection against direct contact. At least one functional insulation against adjacent modules is complied with in the support rail direction. If the application has higher requirements on the insulation (basic or reinforced insulation), then these must be realized through suitable measures (e.Ãg., partition plates). Do not use to separate SELV / PELV circuits from other circuits, because safe isolation is not guaranteed. |
| Product properties | Product type: Solid-state relay module Product family: PLC-INTERFACE Application: With integrated solid-state relay Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Air clearances and creepage distances between the power circuits Insulation: Basic insulation Overvoltage category: II Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 0.07 W Air clearances and creepage distances between the power circuits Rated insulation voltage: 50 VÃDC Rated surge voltage: 0.5 kV |
| Input data | Rated actuating voltage UC: 24 VÃDC Rated actuating current IC: 3.5 mA Switching threshold "0" signal in reference to UN: < 0.4 Switching threshold "1" signal in reference to UN: > 0.8 Typical response time: 100 õs Typical turn-off time: 500 õs Operating voltage display: Yellow LED Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection Surge voltage protection: > 33 V Transmission frequency: 100 Hz |

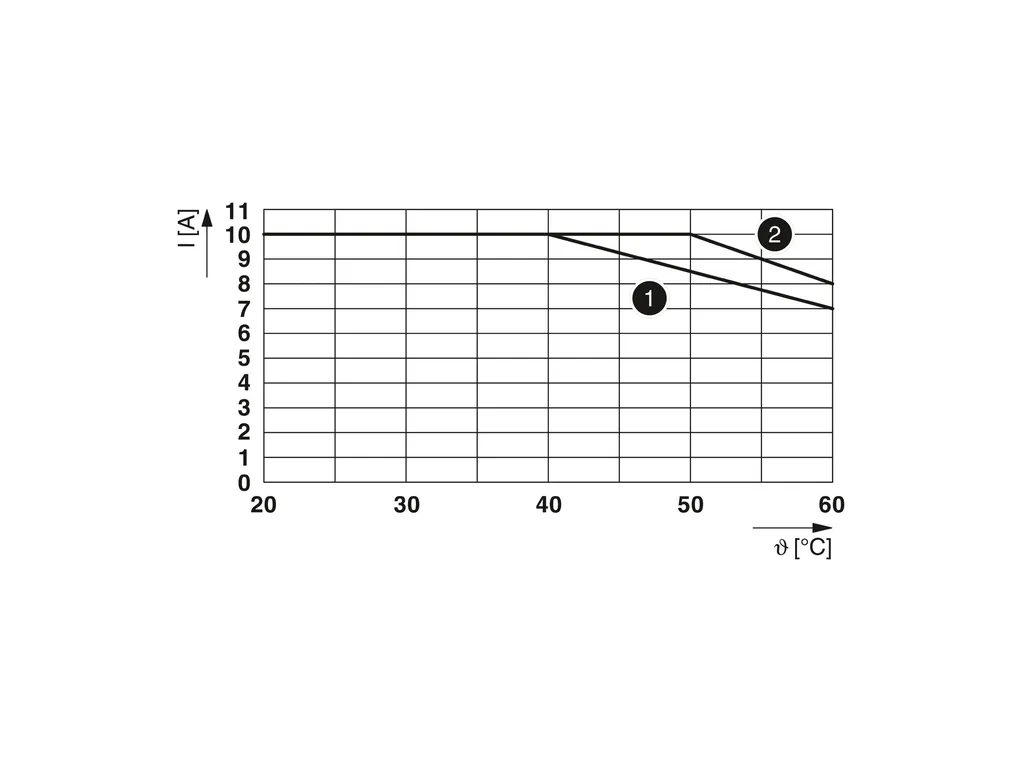

| Output data | Designation: DC voltage output Alarm output Contact switching type: 1 N/O contact Design of digital output: electronic Contact connection type: Power contact Output voltage range: 8 VÃDC ... 33 VÃDC 3 VÃDC ... 33 VÃDC Limiting continuous current: 10 A (see derating curve) 100 mA Quiescent current: 5.2 mA Voltage drop at max. limiting continuous current: < 50 mV < 1.2 V Output circuit: 3-conductor, ground-referenced 2-conductor, floating Protective circuit: Inverse diode Surge protection Reverse polarity protection; Polarity protection diode Surge protection; Suppressor diode Surge voltage protection: > 33 V Error indication: Red LED |
| Connection data | Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14 Tightening torque: 0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing)) |
| Dimensions | Width: 6.2 mm Height: 80 mm Depth: 86 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Housing) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Degree of protection (Installation location): IP54 (Installation location) Ambient temperature (operation): -25°C ... 60°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: ââ°¤ 2000 m |
| Approvals | CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant Shipbuilding approval Certificate: TAE0000196 Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 DNV GL data Temperature: D Humidity: A Vibration: B/C EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board |
| EMC data | Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive |
| Standards and regulations | Air clearances and creepage distances between the power circuits Standards/regulations: IEC 60947-5-1 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
