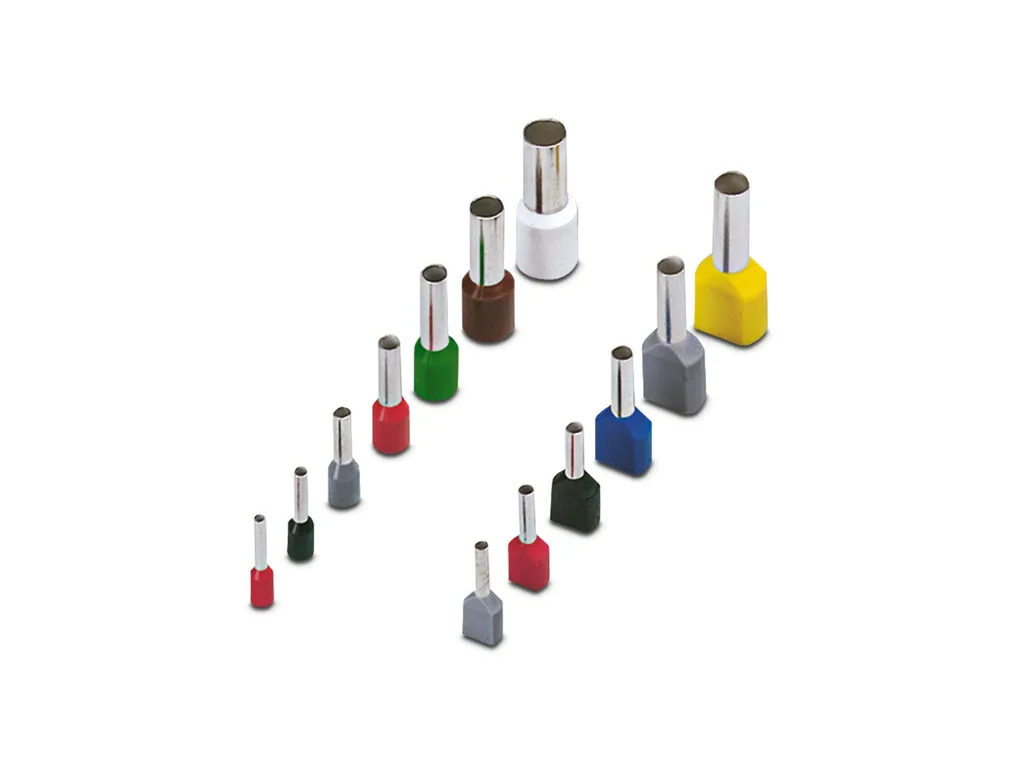

| Product properties | Product type: Cable end sleeve Conductor category: stranded conductors, class 2, 5, 6 / B, C, K, M |
| Connection data | Conductor connection Conductor cross section flexible max.: 1.5 mm² Conductor cross section AWG max.: 16 Stripping length: 15 mm |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/608d248634a99148a09154be76886377/-S204x204-FJPG Sleeve length: 10 mm Maximum stripping length: 15 mm Ferrule diameter: 1.8 mm Sleeve wall thickness: 0.15 mm Insulating collar thickness: 0.3 mm Inner dimensions of the insulating collar: 7 mm |
| Material specifications | Color: black Material: CU-DHP Flammability rating according to UL 94: HB Coating: tin-plated (galvanic) Components: free from silicone and halogen |
| Mechanical properties | Technical data Sleeve length: 10 mm |
| Environmental and real-life conditions | Ambient conditions Permanent temperature: 105°C (-40ðC no load / 0ðC dynamic load) Short-term temperature: 120°C |
| Standards and regulations | Design according to standard: Color code in accordance with DINÃ46228-4, ULÃ486F-E |
