| Product properties | Product type: Pick-off terminal Number of connections: 1 Number of rows: 1 |
| Electrical properties | Maximum load current: 76 A (with 16 mm² conductor cross section) Maximum power dissipation for nominal condition: 2.43 W Nominal current IN: 76 A Current carrying capacity of the neutral busbar: 140 A |
| Connection data | Nominal cross section: 16 mm² Maximum load current: 76 A (with 16 mm² conductor cross section) Level 1 above 1 below 1 Screw thread: M5 Tightening torque: 2.5 ... 3 Nm Stripping length: 16 mm Conductor cross section rigid: 1.5 mm² ... 16 mm² Cross section AWG: 14 ... 6 (converted acc. to IEC) Conductor cross section flexible: 1.5 mm² ... 16 mm² Conductor cross section, flexible [AWG]: 14 ... 6 (converted acc. to IEC) 2 conductors with same cross section, solid: 1.5 mm² ... 6 mm² 2 conductors with same cross section, flexible: 1.5 mm² ... 6 mm² Nominal cross section: 16 mm² |

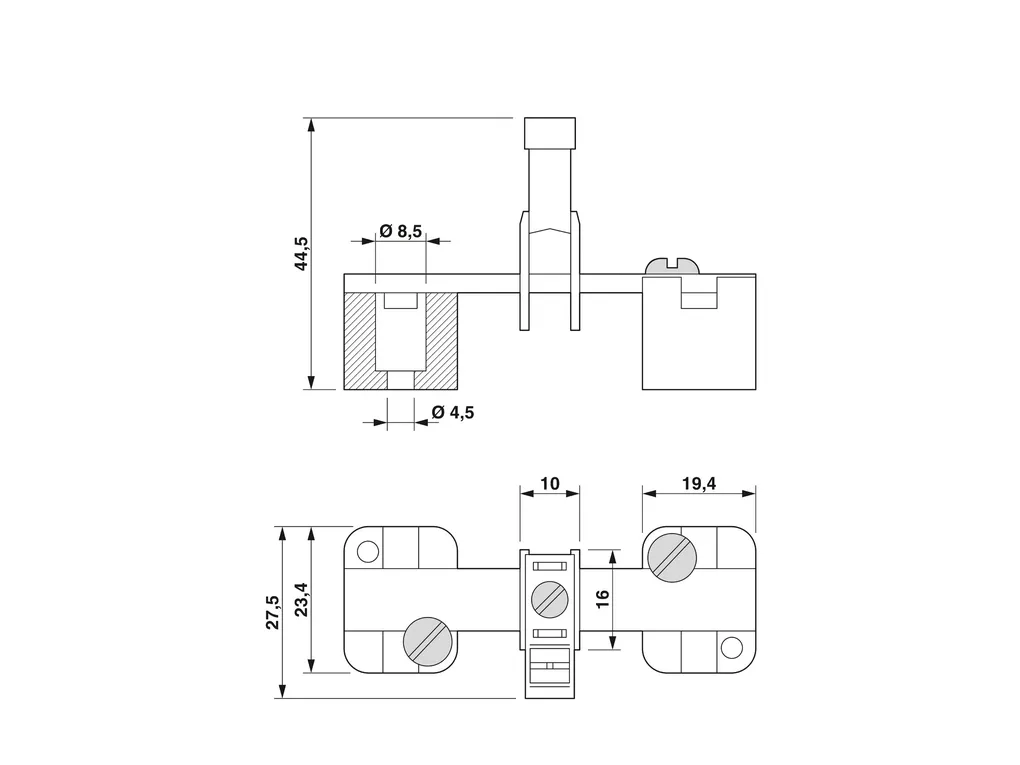

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1832a0911b3136469022ff04d464a6f1/-S204x204-FJPG Width: 9.8 mm Height: 16 mm Depth: 34 mm Length: 16 mm |
| Material specifications | Color: silver |
| Mounting | Mounting type: Neutral busbar |
