Non disponibile

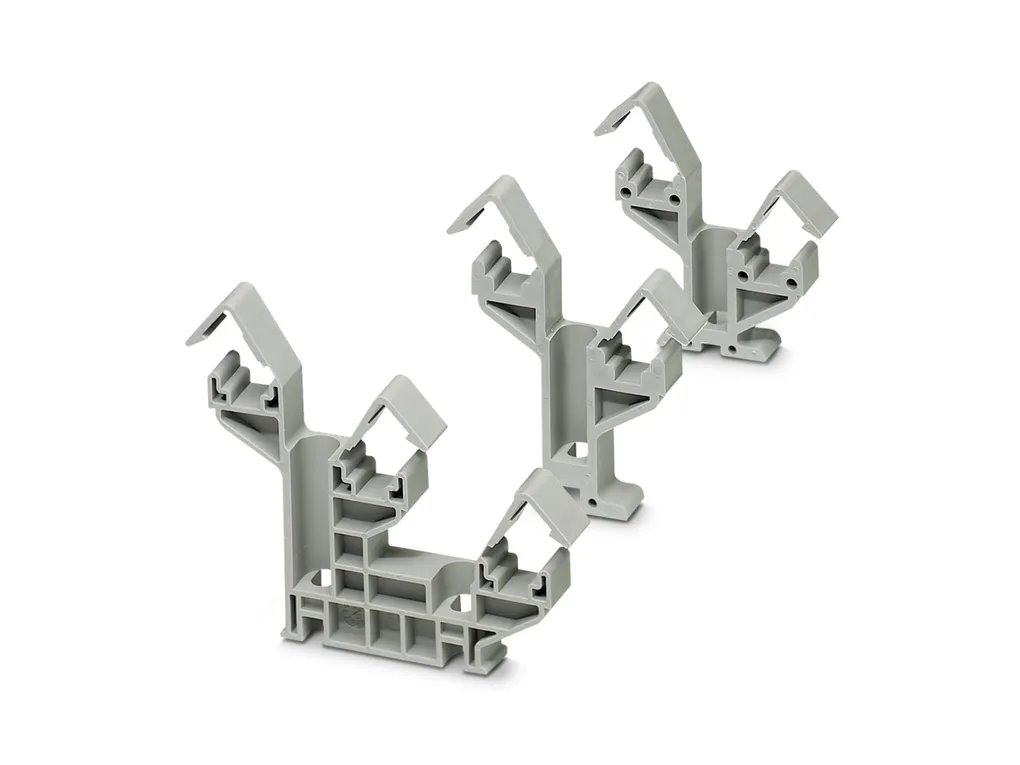

| Product properties | Product type: Support Number of positions: 2.00 |
| Electrical properties | Nominal current IN: 0 A |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/22c738dabf74fc43822f0ded9b80855e/-S204x204-FJPG Width: 10 mm Height: 42 mm Depth: 48 mm Length: 42 mm Diameter: 4.5 mm |
| Material specifications | Color: gray Material: PA Flammability rating according to UL 94: V0 Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125°C Relative insulation material temperature index (Elec., UL 746 B): 125°C Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed Components: free from silicone and halogen |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60ðC to +70ðC) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
| Mounting | Mounting type: Direct mounting |
