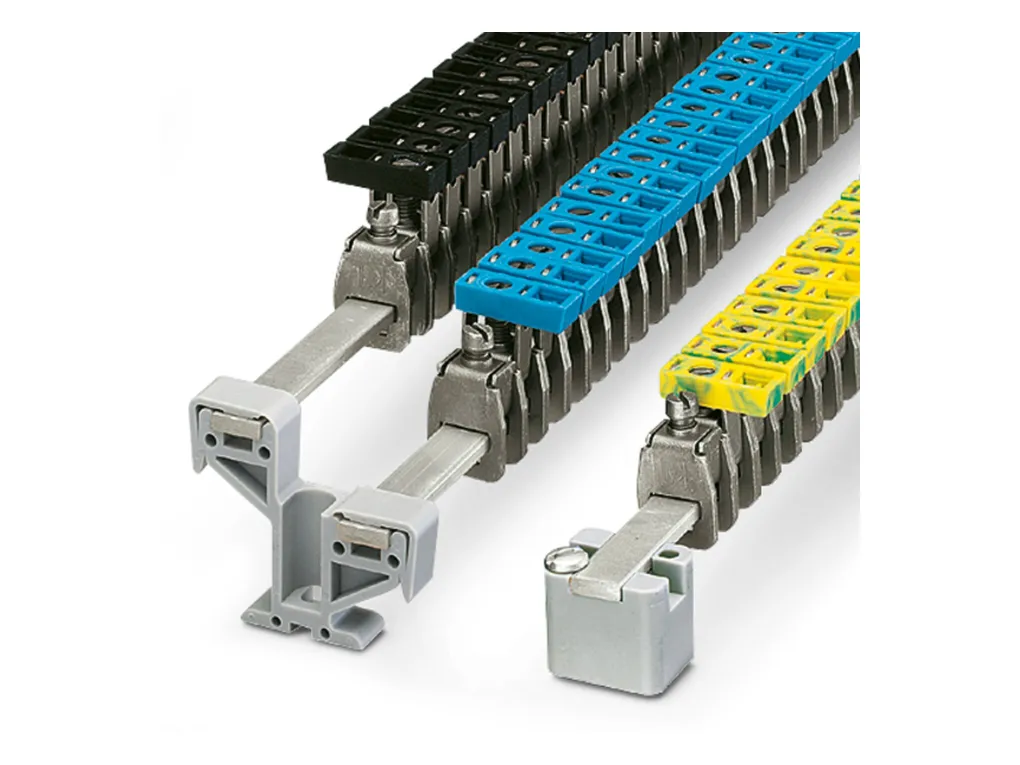

| Product properties | Product type: Installation terminal block Number of connections: 1 Number of rows: 1 |
| Electrical properties | Maximum load current: 125 A (with 35 mm² conductor cross section) Maximum power dissipation for nominal condition: 4.06 W Nominal current IN: 125 A Current carrying capacity of the neutral busbar: 140 A |
| Connection data | Nominal cross section: 35 mm² Maximum load current: 125 A (with 35 mm² conductor cross section) Level 1 above 1 below 1 Screw thread: M6 Tightening torque: 3.2 ... 3.7 Nm Stripping length: 16 mm Connection in acc. with standard: IEC / EN Conductor cross section rigid: 2.5 mm² ... 35 mm² Cross section AWG: 12 ... 2 (converted acc. to IEC) Conductor cross section flexible: 2.5 mm² ... 35 mm² Conductor cross section, flexible [AWG]: 12 ... 2 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 2.5 mm² ... 35 mm² Flexible conductor cross section (ferrule with plastic sleeve): 2.5 mm² ... 35 mm² 2 conductors with same cross section, solid: 1.5 mm² ... 16 mm² 2 conductors with same cross section, flexible: 1.5 mm² ... 16 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 1.5 mm² ... 16 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 1.5 mm² ... 10 mm² Nominal current: 125 A Maximum load current: 125 A (with 35 mm² conductor cross section) Nominal voltage: 300 V Nominal cross section: 35 mm² |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/c15586287a5f004aa8b5e84829869ac7/-S204x204-FJPG Width: 14.3 mm Height: 27.3 mm Depth: 40 mm Length: 27.3 mm |
| Material specifications | Color: black Flammability rating according to UL 94: V2 Insulating material: PA Static insulating material application in cold: -40°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125°C Relative insulation material temperature index (Elec., UL 746 B): 125°C |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60ðC to +70ðC) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC / EN |
| Mounting | Mounting type: Neutral busbar |
