0800353 PHOENIX CONTACT -

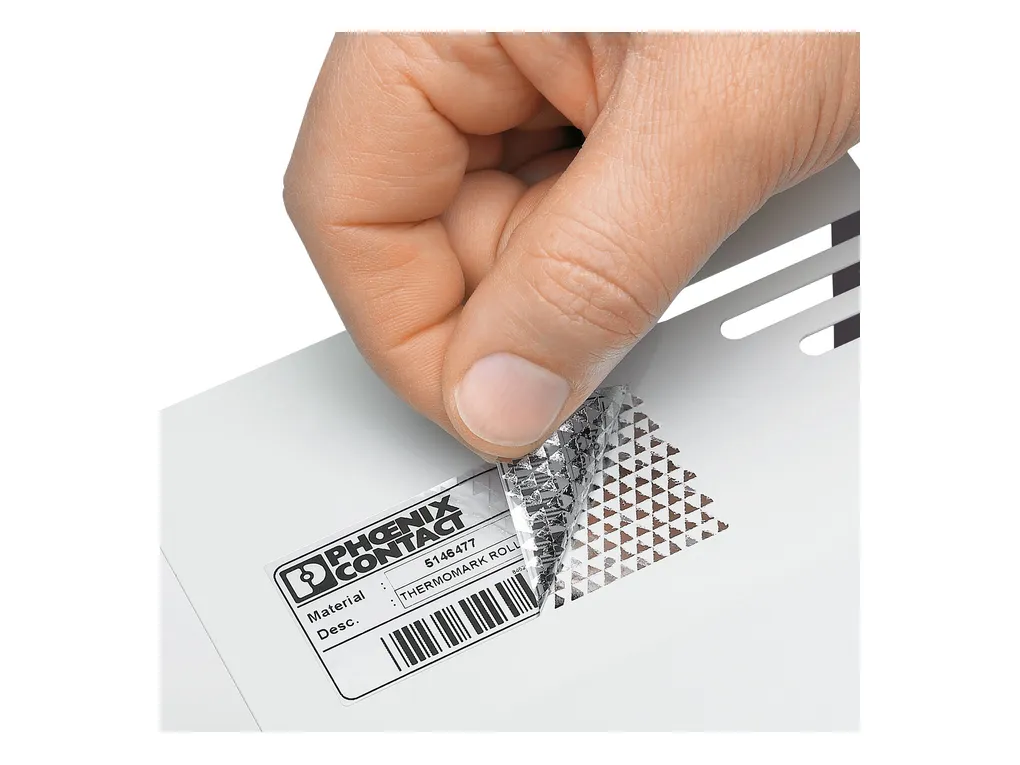

EMLS (26,5X12)R SR - Safety label with special adhesive

Safety label with special adhesive, Roll, silver, unlabeled, can be labeled with: THERMOMARKE.300 (D)/600 (D), THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, mounting type: adhesive, lettering field size: 26.5x12mm, Number of individual labels: 1000

Cod. Articolo: 0800353 copia - copy

Cod. Fornitore: 0800353 copia - copy

PHOENIX CONTACT

Product properties	Product type: Device marking Product property: tamper-proof Marking Number of individual labels: 1000 Number of individual labels per row: 3 Identification technology: Thermal transfer for rolls
Mounting	Mounting type: adhesive
Material specifications	Color: silver Material: Polyester Components: free from silicone and halogen
Environmental and real-life conditions	Test for substances that would hinder coating with paint or varnish Result: Test passed Test for substances that would hinder coating with paint or varnishÃ¢Ã¢¬Ã¢¹ Result: Test passed Scratch test for the determining scratch resistance Specification: DINÃENÃISOÃ1518-1:2019-10 (following) Requirements: Ã¢Ã¢°¥Ã5ÃN Result: Test passed Tesafilm test Specification: DINÃENÃISOÃ2409:2013 (following) Result: Test passed UV resistance Specification: ISOÃ4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Temperature resistance Specification: ANSI/ULÃ969-2018:03 (following) Test duration: 240 h Rating 125Ã°C (150Ã°C): Test passed Wipe resistance of inscriptions Specification: DINÃENÃ61010-1 (VDEÃ0411-01):2020-03 DINÃENÃ62208 (VDEÃ0660-511):2012-06 (in parts) ISOÃ175:2010 (following) Test duration: 168 h IRM 901: Test passed IRM 902: Test passed Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DINÃ50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINÃENÃ60068-2-11:2000-02 Result: Test passed Test duration: 96 h Ambient conditions Ambient temperature (operation): -40°C ... 150°C (Functionality of the Ã¢Ã¢¬Ãtriangle symbolÃ¢Ã¢¬ up to approx.Ã+80°CÃ) Ambient temperature (assembly): > 5°C Recommended ambient temperature (storage/transport): 10°C ... 25°C Recommended humidity (storage/transport): 35 % ... 65 % (Storage in a dry and dark place in the original packaging is recommended)
Dimensions	Width: 26.5 mm Length: 12 mm
Standards and regulations	Wipe resistance: DINÃENÃ61010-1 (VDEÃ0411-1)
