0800474 PHOENIX CONTACT -

US-WML 36 (25X25) - Cable marker label

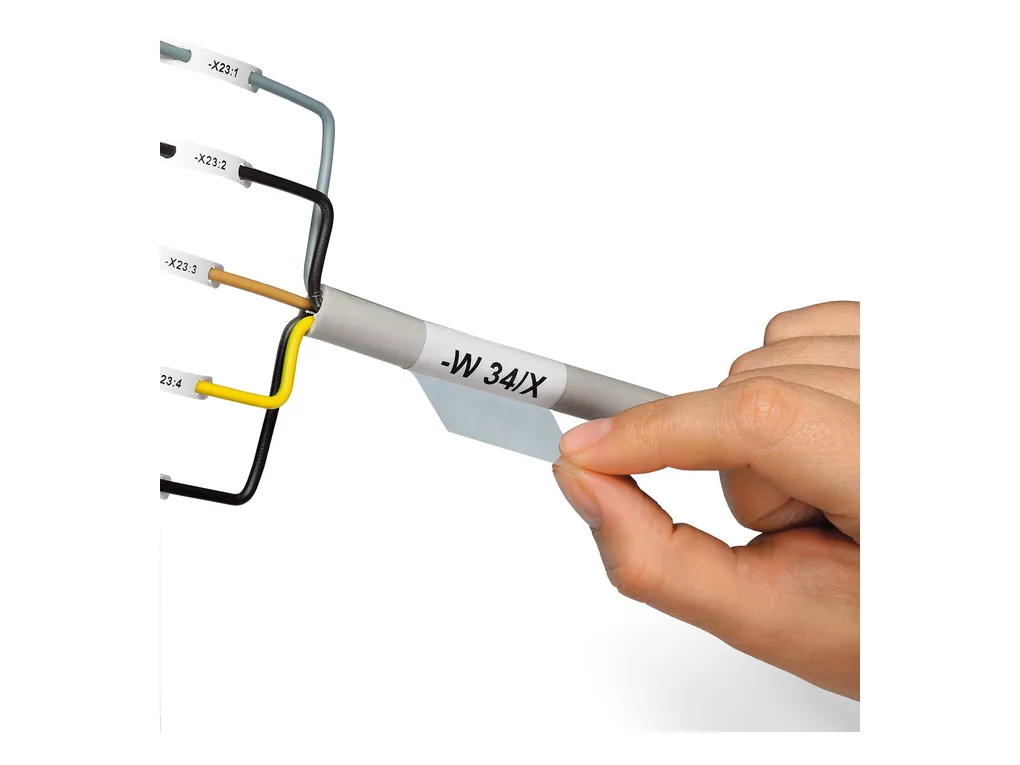

Cable marker label, Card, white, unlabeled, can be labeled with: BLUEMARKIDCOLOR, BLUEMARKID, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: adhesive, cable diameter range: 8 ... 33.2 mm, cable diameter: Ã¢â°¤ 33.2 mm, lettering field size: 25x25mm, Number of individual labels: 4

Cod. Articolo: 0800474 copia - copy

Cod. Fornitore: 0800474 copia - copy

PHOENIX CONTACT

Product properties	Product type: Conductor marking Type: Label Marking Number of individual labels: 4 Number of individual labels per row: 4 Identification technology: Thermal transfer for sheets and cards
Dimensions	Width: 129.5 mm Length: 25.4 mm External dimensions Outside diameter: 11 mm ... 36 mm
Material specifications	Foil strength: 0.06 mm Adhesive: Acrylic Color: white Material: PVC Base element material: Vinyl film Components: Silicone-free
Cable/line	External cable diameter: Ã¢Ã¢°¤ 33.2 mm 8 mm ... 33.2 mm
Environmental and real-life conditions	Test for substances that would hinder coating with paint or varnish Result: Test passed Scratch test for the determining scratch resistance Specification: DINÃENÃISOÃ1518-1:2019-10 (following) Requirements: Ã¢Ã¢°¥Ã5ÃN Result: Test passed Tesafilm test Specification: DINÃENÃISOÃ2409:2013 (following) Result: Test passed UV resistance Specification: ISOÃ4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Temperature resistance Specification: ANSI/ULÃ969-2018:03 (following) ISOÃ175:2010 (following) Test duration: 240 h 168 h Rating 100Ã°C (121Ã°C): Test passed Diesel [CAS No. 68476-34-6]: Test passed IRM 901: Test passed IRM 902: Test passed Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DINÃ50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINÃENÃ60068-2-11:2000-02 Result: Test passed Test duration: 96 h Ambient conditions Ambient temperature (operation): -40°C ... 80°C Ambient temperature (assembly): > 0°C Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 % Shelf life: 2Ãyears
Standards and regulations	Wipe resistance: DINÃENÃ61010-1 (VDEÃ0411-1)
Mounting	Mounting type: adhesive
