0801439 PHOENIX CONTACT -

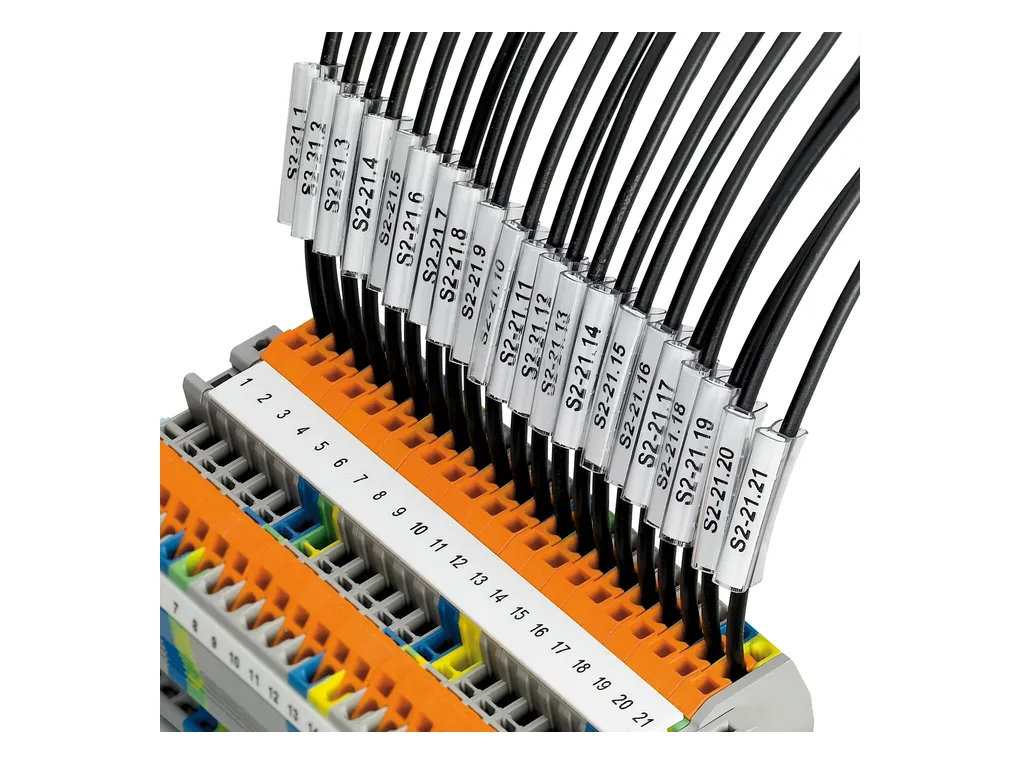

UCT-WMT (12X4) YE - Conductor marker

Conductor marker, Sheet, yellow, unlabeled, can be labeled with: TOPMARKNEO, TOPMARK LASER, BLUEMARKIDCOLOR, BLUEMARKID, BLUEMARK CLED, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: insert, cable diameter range: 0.6 ... 10 mm, lettering field size: 12x4mm, Number of individual labels: 50

Cod. Articolo: 0801439 copia - copy

Cod. Fornitore: 0801439 copia - copy

PHOENIX CONTACT

Product properties	Product type: Conductor marking Marking Number of individual labels: 50 Number of individual labels per row: 10 Identification technology: Thermal transfer for sheets and cards
Dimensions	Width: 12 mm Length: 4 mm
Material specifications	RoHS compliant: yes Color: yellow Material: PC Flammability rating according to UL 94: V0 Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Components: free from silicone and halogen
Cable/line	External cable diameter: 0.6 mm ... 10 mm
Environmental and real-life conditions	Test for substances that would hinder coating with paint or varnish Result: Test passed UV resistance Specification: ISOÃ4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Wipe resistance of inscriptions Specification: DINÃENÃ61010-1 (VDEÃ0411-1):2011-07 DINÃENÃ62208 (VDEÃ0660-511):2012-06 (in parts) Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DINÃ50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINÃENÃ60068-2-11:2000-02 Result: Test passed Ambient conditions Ambient temperature (operation): -40°C ... 120°C Recommended storage conditions: 23Ã°C/50Ã% relative humidity. Storage in a dry and dark place in the original packaging is recommended. Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 %
Standards and regulations	Wipe resistance: DINÃENÃ61010-1 (VDEÃ0411-1)
Mounting	Mounting type: insert
