0803866 PHOENIX CONTACT -

US-PML-F100 (50X25) - Label

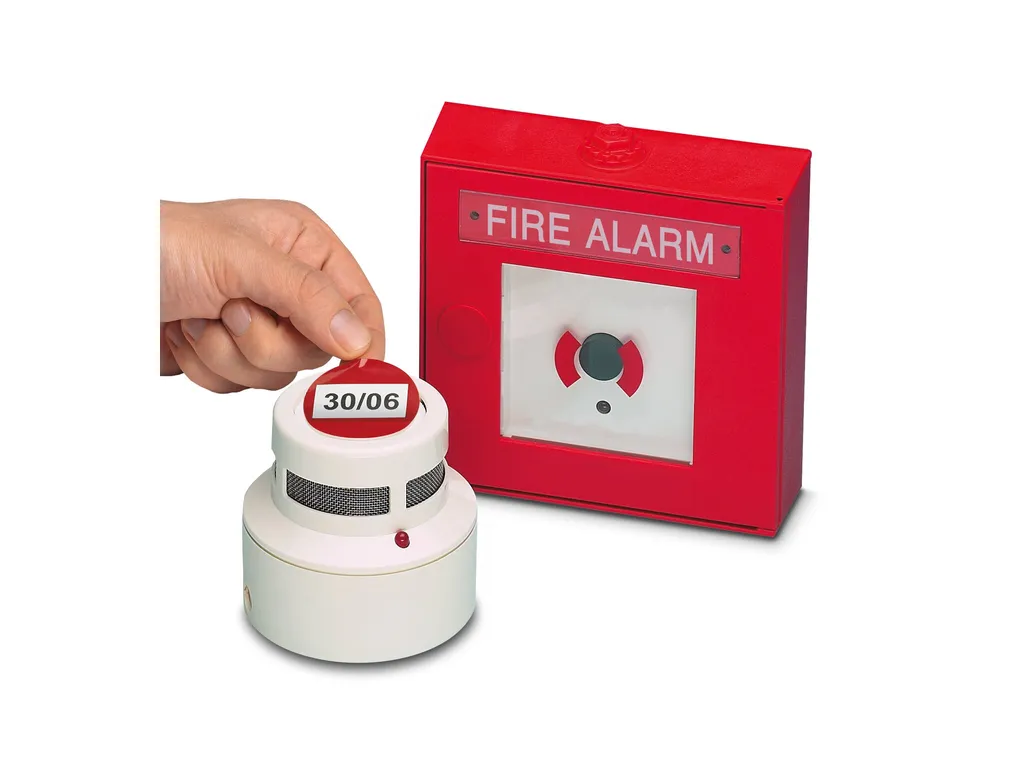

Label, for marking fire detection systems, Card, red/white, unlabeled, can be labeled with: BLUEMARKIDCOLOR, BLUEMARKID, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD: Rectangle, mounting type: adhesive, diameter: 0 mm, lettering field size: 40x15mm, Number of individual labels: 10

Cod. Articolo: 0803866 copia - copy

Cod. Fornitore: 0803866 copia - copy

PHOENIX CONTACT

Product properties	Product type: System marking Area of application: Identification of smoke alarms according to DINÃ4066 Marking Number of individual labels: 10 Number of individual labels per row: 2 Printing: Rectangle Identification technology: Thermal transfer
Dimensions	Width: 50 mm Height: 25 mm Depth: 0.09 mm Length: 50 mm Diameter: 0.00 mm Min. material thickness: 0.09 mm
Material specifications	Color: red/white Material: PVC Components: Silicone-free
Environmental and real-life conditions	Test for substances that would hinder coating with paint or varnish Result: Test passed Test for substances that would hinder coating with paint or varnishÃ¢Ã¢¬Ã¢¹ Result: Test passed Scratch test for the determining scratch resistance Specification: DINÃENÃISOÃ1518-1:2019-10 (following) Requirements: Ã¢Ã¢°¥Ã5ÃN Result: Test passed Tesafilm test Specification: DINÃENÃISOÃ2409:2013 (following) Result: Test passed UV resistance Specification: DINÃENÃISOÃ4892-2:2021-11 (following) IEC 60068-2-2:2007-07 Result: Test passed Test duration: 96 h Duration: 96Ãh Temperature for testing: 120°C Temperature resistance Specification: ANSI/ULÃ969-2018:03 (following) ISOÃ175:2010 (following) Test duration: 240 h 168 h Rating 100Ã°C (121Ã°C): Test passed Diesel [CAS No. 68476-34-6]: Test passed IRM 901: Test passed IRM 902: Test passed Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DINÃ50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Ambient conditions Ambient temperature (operation): -40°C ... 100°C Ambient temperature (assembly): > 10°C Recommended ambient temperature (storage/transport): 22°C Recommended humidity (storage/transport): 50 % ... 55 % (Storage in a dry and dark place in the original packaging is recommended) Shelf life: 2Ãyears
Standards and regulations	Wipe resistance: DINÃENÃ61010-1 (VDEÃ0411-1)
Mounting	Mounting type: adhesive
