| Product properties | Product type: Socket Country ID: Germany |
| Electrical properties | Nominal voltage UN: 250 VÃAC (50ÃHz) Nominal current IN: 16 A |
| Signaling | Status display: Yes |
| Dimensions | Width: 90 mm Height: 75 mm Depth: 75 mm |
| Material specifications | Color: gray Flammability rating according to UL 94: V0 Insulating material: PA Contact material: CuZn37 Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed |
| Connector | Type of plug: Pin connector pattern type CF |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 60°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60ðC to +70ðC) Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Standards Standards/regulations: VDEÃ0620-1 |

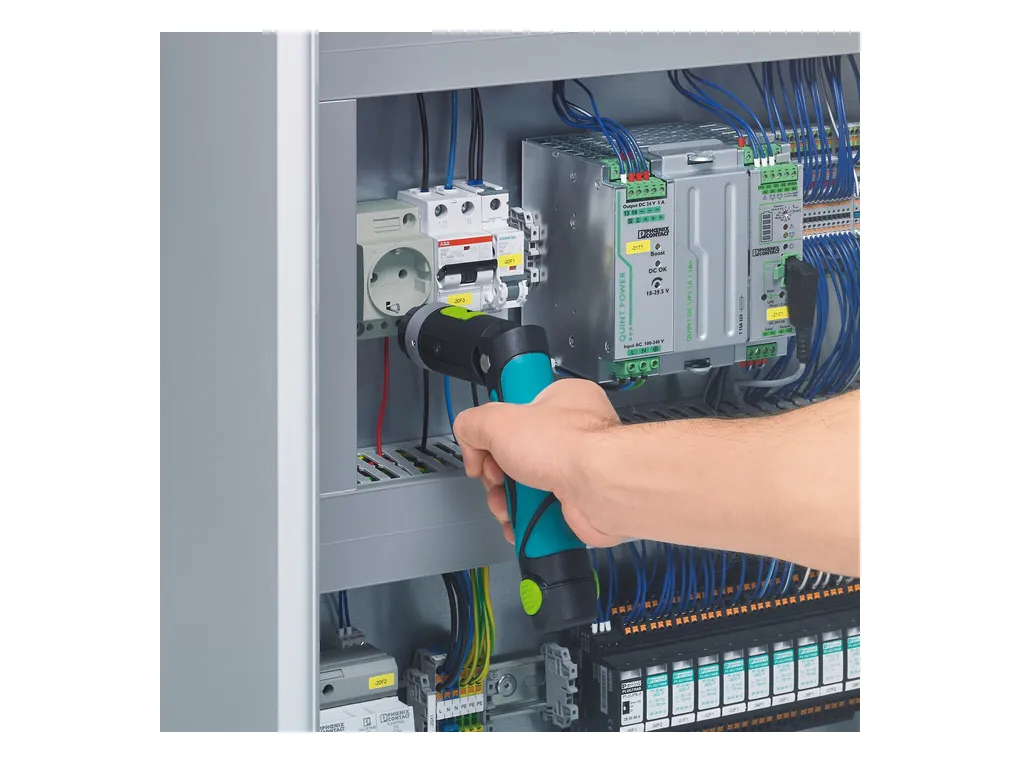

| Mounting | Mounting type: for mounting on a DIN rail in the service interface or direct mounting Connection method: Screw connection |
