0804142 PHOENIX CONTACT -

EO-N/UT/LED - Socket

Socket, Pin connector pattern type N, Screw connection, for Brazil/South Africa and other countries, LED display, gray, for mounting on a DIN rail in the service interface or direct mounting, 250 VAC, 20 A, -20°C, 60°C

Cod. Articolo: 0804142 copia - copy

Cod. Fornitore: 0804142 copia - copy

PHOENIX CONTACT

Product properties	Product type: Socket Country ID: Brazil
Electrical properties	Nominal voltage U_N: 250 VÃAC (50ÃHzÃ...Ã60ÃHz) Nominal current I_N: 20 A
Signaling	Status display: Yes
Dimensions	Width: 45 mm Height: 75 mm Depth: 75 mm
Material specifications	Color: gray Flammability rating according to UL 94: V0 Insulating material: PA Contact material: CuZn37 Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Connector	Type of plug: Pin connector pattern type N
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 60°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Permissible humidity (storage/transport): 30 % ... 70 %

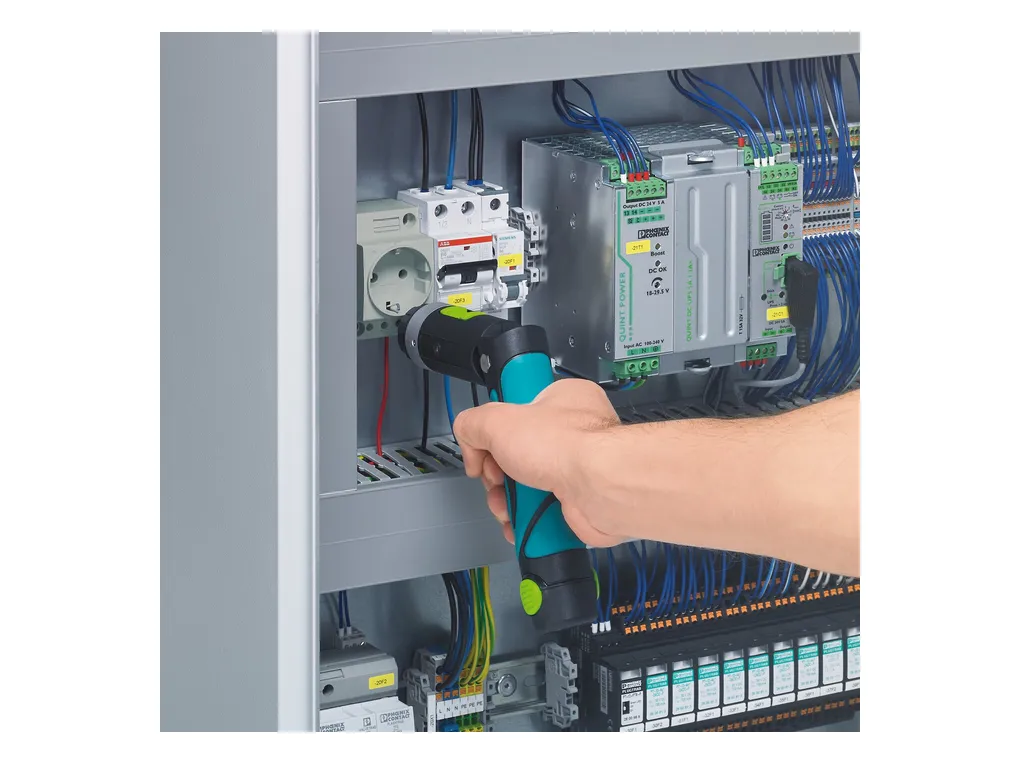

Mounting	Mounting type: for mounting on a DIN rail in the service interface or direct mounting Connection method: Screw connection
