| Notes | General: Print image may vary depending on laser printer |

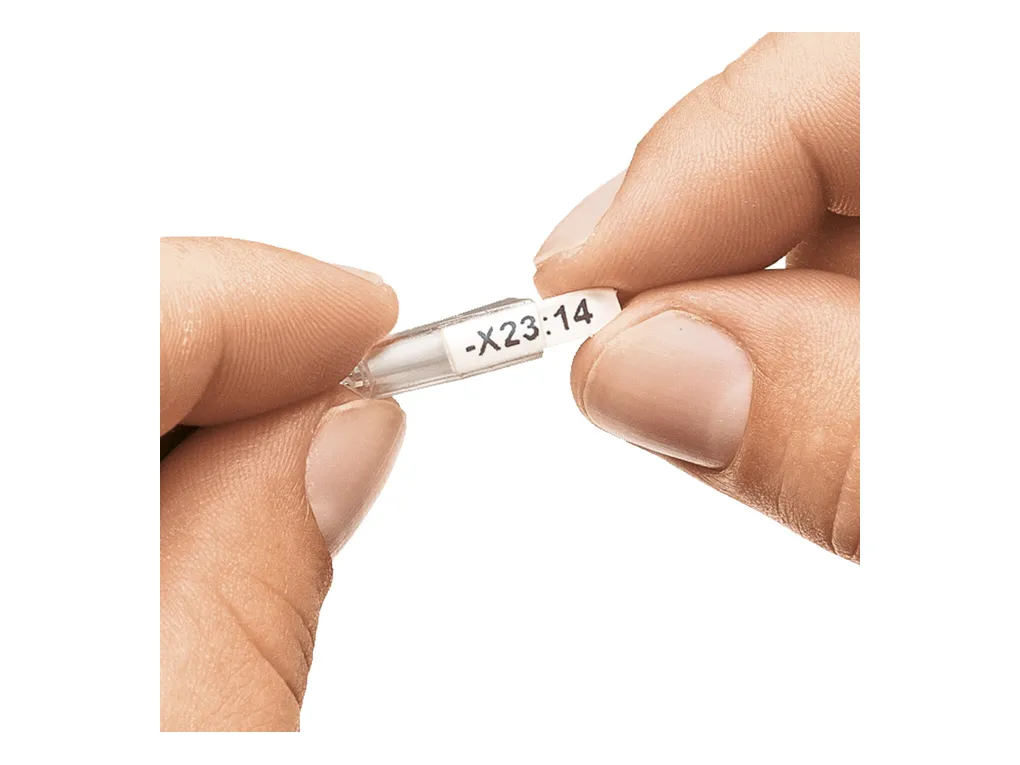

| Product properties | Product type: Conductor marking Marking Number of individual labels: 360 Number of individual labels per row: 12 |
| Dimensions | Width: 15 mm Length: 4 mm |
| Material specifications | Foil strength: 135 õm Color: white Material: Polyester Flammability rating according to UL 94: V0 Components: free from silicone and halogen |
| Cable/line | External cable diameter: 0.6 mm ... 50 mm |
| Environmental and real-life conditions | Test for substances that would hinder coating with paint or varnish Result: Test passed UV resistance Specification: ISOÃ4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DINÃ50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINÃENÃ60068-2-11:2000-02 Result: Test passed Ambient conditions Ambient temperature (operation): -40°C ... 100°C Recommended storage conditions: 23ðC / 50Ã% relative humidity Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 % (Storage in a dry and dark place in the original packaging is recommended) |
| Standards and regulations | Wipe resistance: DINÃENÃ61010-1 (VDEÃ0411-1) |
| Mounting | Mounting type: insert |
