PHOENIX CONTACT 0812175
PHOENIX CONTACT 0812175
PHOENIX CONTACTNon disponibile

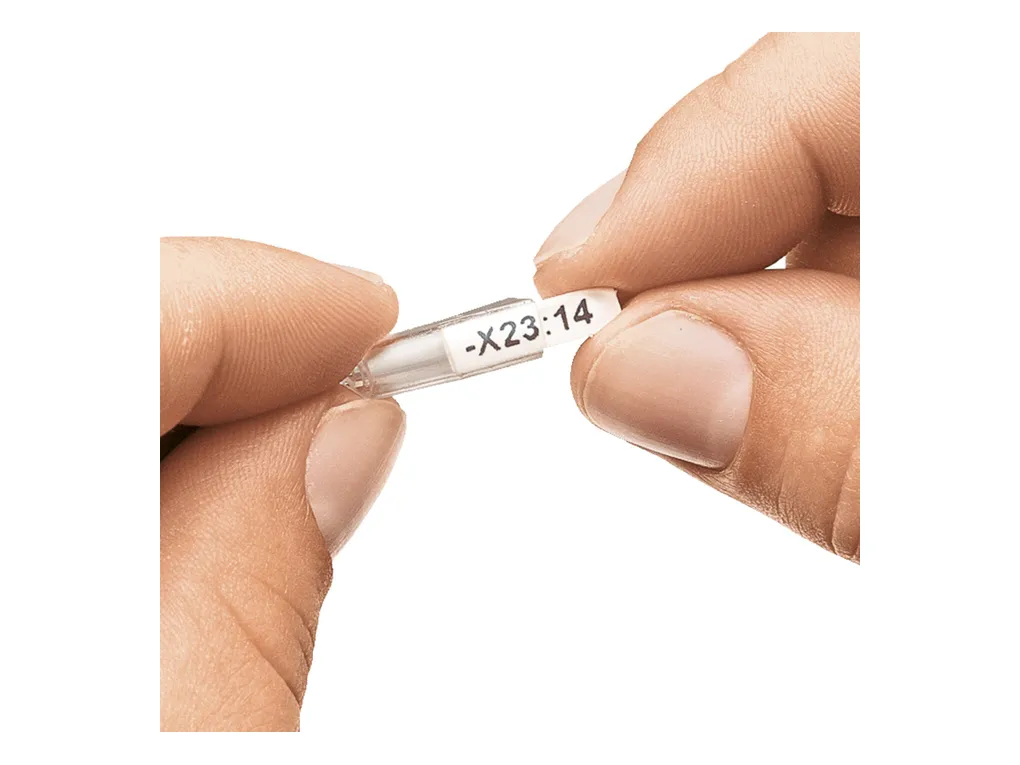

PABT 15X4 WH/200 - Insert strip

Insert strip, Roll, white, unlabeled, can be labeled with: THERMOMARKE.300 (D)/600 (D), THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, mounting type: slide-on, cable diameter range: 0.6 ... 50 mm, lettering field size: 15x4mm, Number of individual labels: 7500
Cod. Articolo: 0812175 copia - copy
Cod. Fornitore: 0812175 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesProduct type: Conductor marking
Area of application: PhoenixÂContact: PABTÂ... insert labels for marking PATG and PATO marking sleeves for wire and cable identification
Marking
Number of individual labels: 7500
Number of individual labels per row: 6
DimensionsWidth: 15 mm
Length: 4 mm
Material specificationsRoHS compliant: yes
Foil strength: 250 µm
Color: white
Material: Polyester
Flammability rating according to UL 94: V0
Cable/lineExternal cable diameter: 0.6 mm ... 50 mm
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 100°C
Recommended ambient temperature (storage/transport): 23°C
Recommended humidity (storage/transport): 50 % (Storage in a dry and dark place in the original packaging is recommended)
Standards and regulationsWipe resistance: DINÂENÂ61010-1 (VDEÂ0411-1)
MountingMounting type: slide-on
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05526.pdf

Technical_drawing_01677.pdf
