0817248 PHOENIX CONTACT -

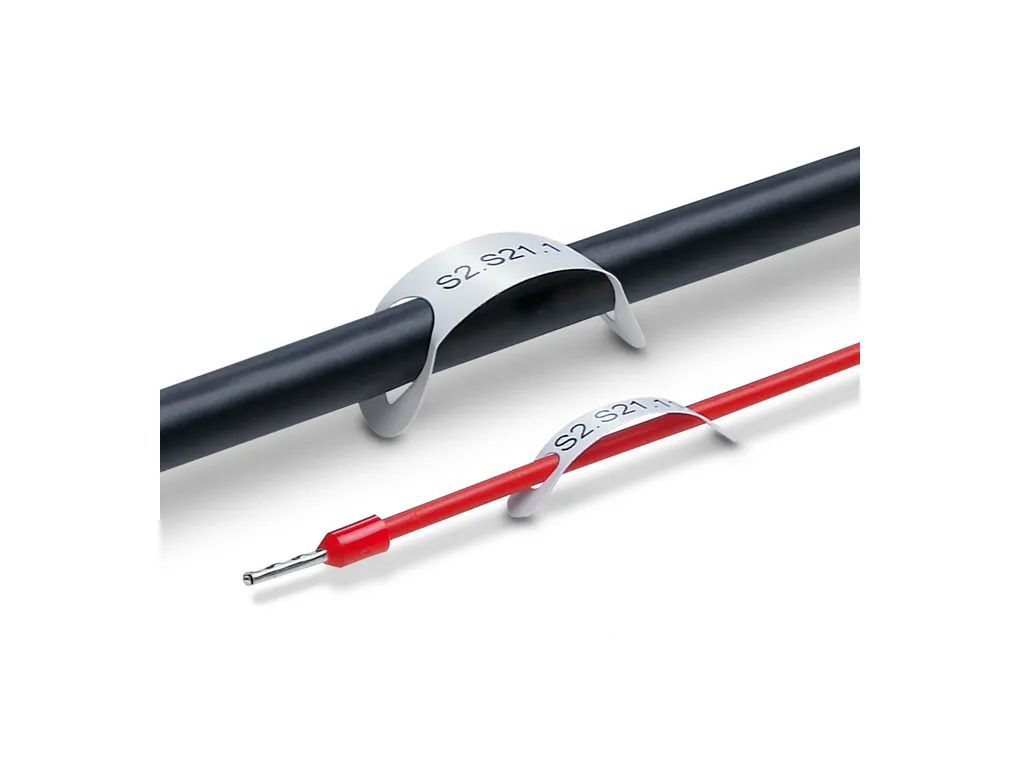

WMT 5,5 (15X8)R - Cable marker

Cable marker, Roll, white, unlabeled, can be labeled with: THERMOMARKE.300 (D)/600 (D), THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, mounting type: slide-on, cable diameter range: 4 ... 5.5 mm, lettering field size: 15x8mm, Number of individual labels: 4000

Cod. Articolo: 0817248 copia - copy

Cod. Fornitore: 0817248 copia - copy

PHOENIX CONTACT

Product properties	Product type: Conductor marking Type: Roll Marking Number of individual labels: 4000 Number of individual labels per row: 2 Identification technology: Thermal transfer for rolls
Dimensions	Width: 8 mm Length: 34.4 mm External dimensions Outside diameter: 4 mm ... 5.5 mm
Material specifications	Foil strength: 175 Ãµm Color: white Material: Polyester Components: free from silicone and halogen
Cable/line	External cable diameter: 4 mm ... 5.5 mm
Environmental and real-life conditions	Test for substances that would hinder coating with paint or varnish Result: Test passed UV resistance Specification: ISOÃ4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Wipe resistance of inscriptions Specification: DINÃENÃ61010-1 (VDEÃ0411-1):2011-07 DINÃENÃ62208 (VDEÃ0660-511):2012-06 (in parts) Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DINÃ50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINÃENÃ60068-2-11:2000-02 Result: Test passed Ambient conditions Ambient temperature (operation): -40°C ... 120°C Recommended storage conditions: 23Ã°C / 50Ã% relative humidity Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 % Shelf life: 2Ãyears
Standards and regulations	Wipe resistance: DINÃENÃ61010-1 (VDEÃ0411-1)
Mounting	Mounting type: slide-on
