0821823 PHOENIX CONTACT -

UC-TMN 7,5 - Marker for terminal blocks

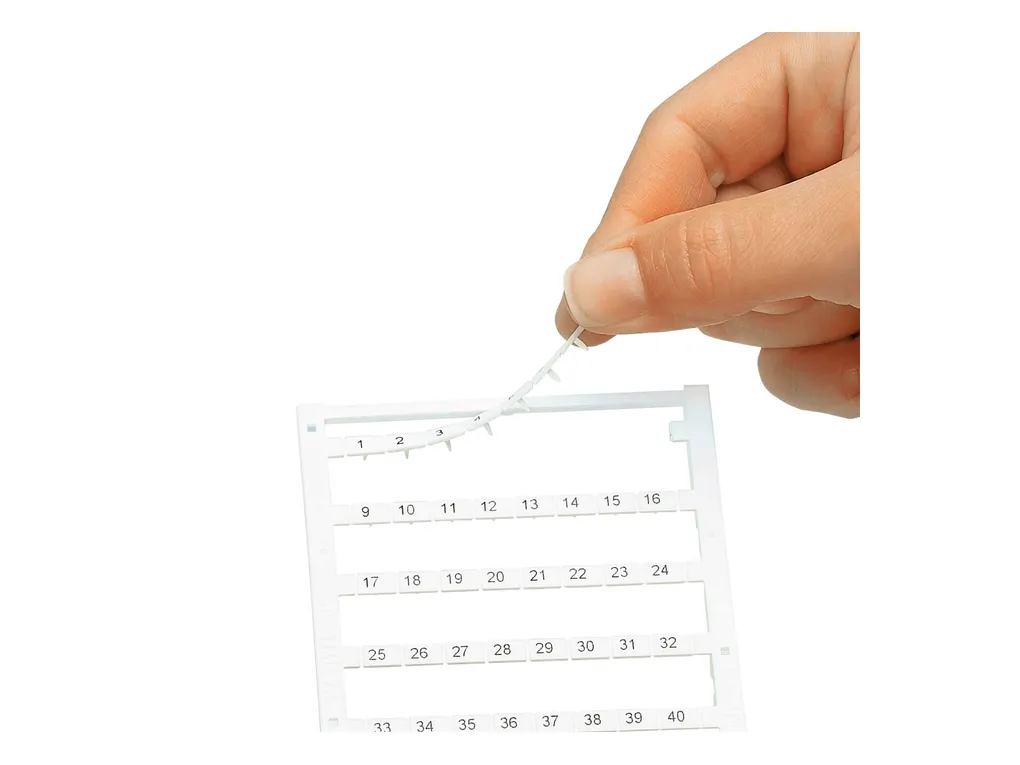

Marker for terminal blocks, Sheet, white, unlabeled, can be labeled with: BLUEMARKIDCOLOR, BLUEMARKID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: snapped, for terminal block width: 7.5 mm, lettering field size: 3.97x6.9mm, Number of individual labels: 64

Cod. Articolo: 0821823 copia - copy

Cod. Fornitore: 0821823 copia - copy

PHOENIX CONTACT

Product properties	Product type: Terminal marking Pitch: 7.5 mm Type: high Marking Number of individual labels: 64 Number of individual labels per row: 8 Identification technology: UV LED technology
Dimensions	Width: 6.9 mm Height: 4 mm Length: 3.97 mm Pitch: 7.5 mm
Material specifications	RoHS compliant: yes Color: white Material: PA Flammability rating according to UL 94: V2 Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 120°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 2 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 2 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 2 Components: free from silicone and halogen
Environmental and real-life conditions	Test for substances that would hinder coating with paint or varnish Result: Test passed UV resistance Specification: ISOÃ4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Wipe resistance of inscriptions Specification: DINÃENÃ61010-1 (VDEÃ0411-1):2011-07 DINÃENÃ62208 (VDEÃ0660-511):2012-06 (in parts) Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DINÃ50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINÃENÃ60068-2-11:2000-02 Result: Test passed Ambient conditions Ambient temperature (operation): -40°C ... 120°C Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 %
Standards and regulations	Wipe resistance: DINÃENÃ61010-1 (VDEÃ0411-1)
Mounting	Mounting type: snapped
