0825343 PHOENIX CONTACT -

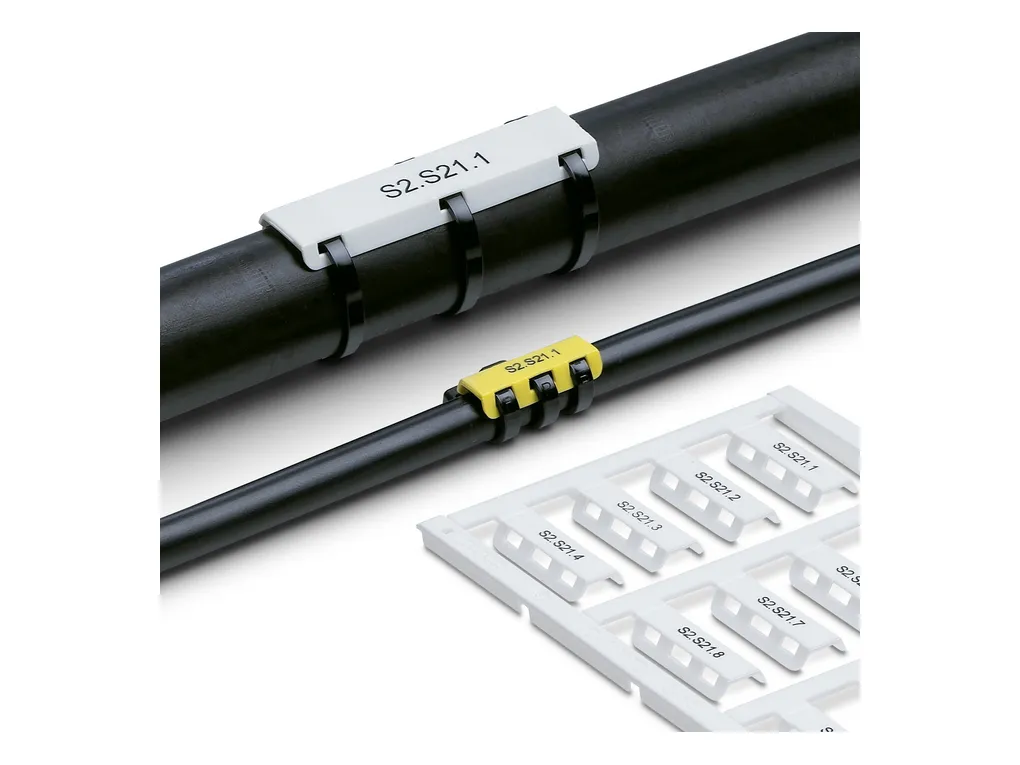

UC-WMTBA (24X5) GN - Cable marker

Cable marker, Sheet, green, unlabeled, can be labeled with: BLUEMARKIDCOLOR, BLUEMARKID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: Assembly with cable ties, cable diameter: > 4 mm, lettering field size: 24x5mm, Number of individual labels: 12

Cod. Articolo: 0825343 copia - copy

Cod. Fornitore: 0825343 copia - copy

PHOENIX CONTACT

Product properties	Product type: Conductor marking Type: Card form Marking Number of individual labels: 12 Number of individual labels per row: 4 Identification technology: UV LED technology
Dimensions	Width: 10 mm Length: 24 mm External dimensions Outside diameter: > 4 mm ... 136 mm
Material specifications	RoHS compliant: yes Color: green Material: PA Flammability rating according to UL 94: V2 Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 120°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 2 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 2 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 2 Components: free from silicone and halogen
Cable/line	External cable diameter: > 4 mm
Environmental and real-life conditions	Test for substances that would hinder coating with paint or varnish Result: Test passed UV resistance Specification: ISOÃ4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Wipe resistance of inscriptions Specification: DINÃENÃ61010-1 (VDEÃ0411-1):2011-07 DINÃENÃ62208 (VDEÃ0660-511):2012-06 (in parts) Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DINÃ50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINÃENÃ60068-2-11:2000-02 Result: Test passed Ambient conditions Ambient temperature (operation): -40°C ... 120°C Recommended storage conditions: 23Ã°C/50Ã% relative humidity. Storage in a dry and dark place in the original packaging is recommended. Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 %
Standards and regulations	Wipe resistance: DINÃENÃ61010-1 (VDEÃ0411-1)
Mounting	Mounting type: Assembly with cable ties
